Rotel RA-1592 MKII Integrated Amplifier
Rotel RA-1592 MKII Integrated Amplifier is a flagship high-performance integrated amplifier that combines 200 watts per channel of powerful Class AB amplification with premium digital and analogue connectivity. Featuring a custom Rotel toroidal transformer, Texas Instruments DAC, Moving Magnet phono stage, balanced XLR inputs, Bluetooth with aptX and AAC, and high-resolution audio support up to 32-bit/384kHz PCM, DSD and MQA, it delivers exceptional detail, dynamic control and musical accuracy. Roon Tested certification, selectable A/B speaker outputs and advanced system integration options make the Rotel RA-1592 MKII an ideal all-in-one solution for serious hi-fi enthusiasts seeking reference-quality sound from vinyl, streaming and digital sources.
Limited Availability - Contact Us Before Purchasing.
Specifications
Rotel RA-1592 MKII Integrated Amplifier
| Specification | Value |
|---|---|
| Product |
Rotel RA-1592 MKII Integrated Amplifier |
| Continuous power output |
200W/Ch (All channels driven, 8Ω) |
| Total harmonic distortion (thd) |
< 0.008% (20Hz–20kHz) |
| Frequency response line level inputs |
10Hz - 100kHz ±0.5dB |
| Frequency response digital inputs |
10Hz - 90kHz ±2dB |
| Frequency response phono input |
20Hz - 20kHz ±0.5dB |

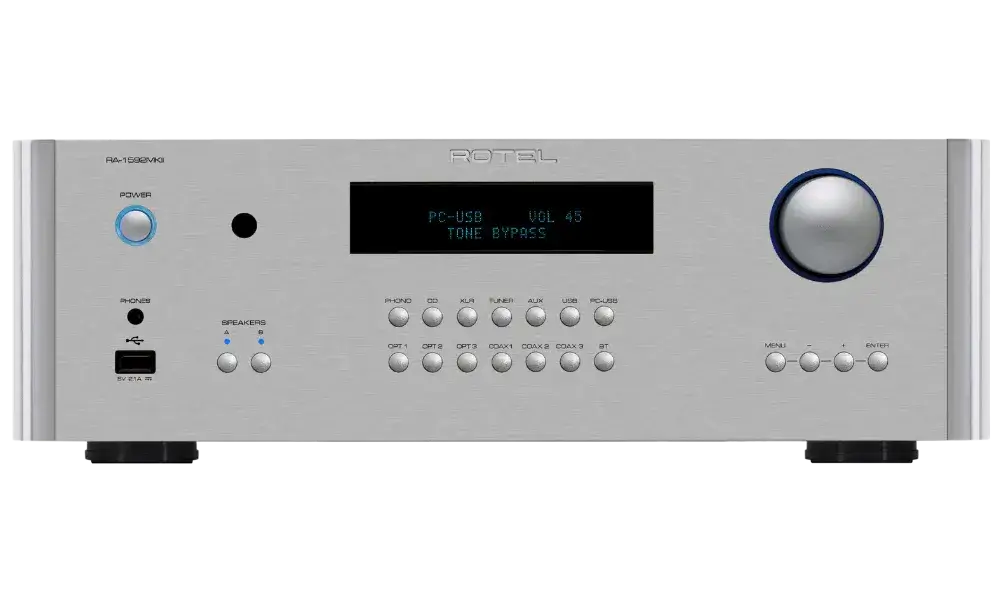

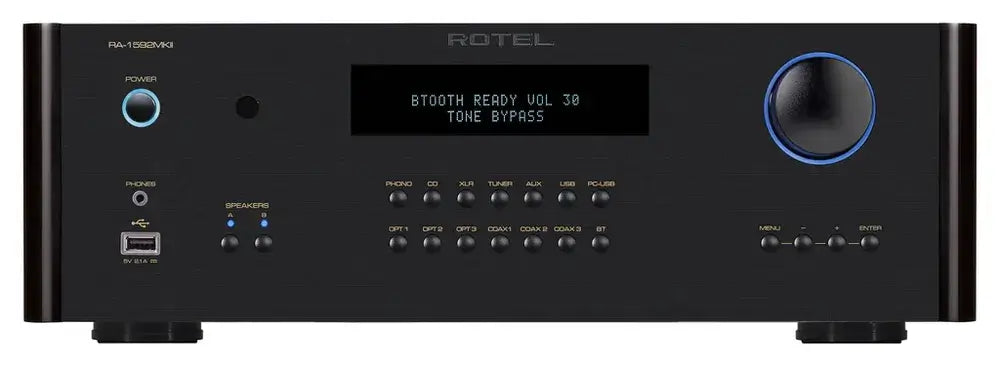

| Available finishes |
Black, Silver |
| S/n ratio (ihf a weighted) line level inputs |
103dB |
| S/n ratio (ihf a weighted) digital inputs |
102dB |
| S/n ratio (ihf a weighted) phono input |
80dB |
| Damping factor |
600 |
| Input sensitivity line level inputs rca |
340mV |
| Input sensitivity line level inputs xlr |
540mV |
| Input sensitivity phono input mm |
5.2mV |
| Input impedance line level inputs rca |
100kΩ |
| Input impedance line level inputs xlr |
100kΩ |
| Input impedance digital inputs |
75Ω |
| Input impedance phono input mm |
47kΩ |
| Input overload line level inputs rca |
3.5V |
| Input overload line level inputs xlr |
5.5V |
| Input overload phono input |
52mV |
| Preout level |
1.9V |
| Output impedance |
100Ω |
| Tone controls |
±12dB at 100Hz / 10kHz |
| Coax/optical digital input signals |
LPCM (Up to 24-bit/192kHz) |
| Pc-usb usb audio class 1 |
Up to 24-bit/96kHz |
| Pc-usb usb audio class 2 |
Up to 32-bit/384kHz |
| Pc-usb dsd and dop support |
Yes |
| Pc-usb mqa and mqa studio |
Up to 24-bit/384kHz |
| Dimensions (w × h × d) |
431 × 144 × 425mm |
| Dimensions imperial |
17 × 5.7 × 16 in |
| Front panel height |
3U / 132.6mm (5.25in) |
| Power requirements |
230V, 50Hz |
| Power consumption |
500W |
| Standby power consumption |
<0.5W |
| Net weight |
17.63kg (37lbs.) |
| Btu rating |
1239 BTU/h |
