Brand: Rotel

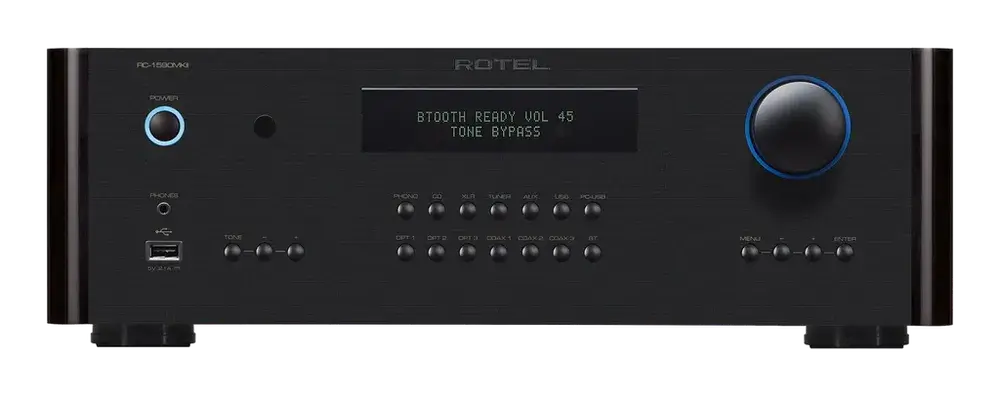

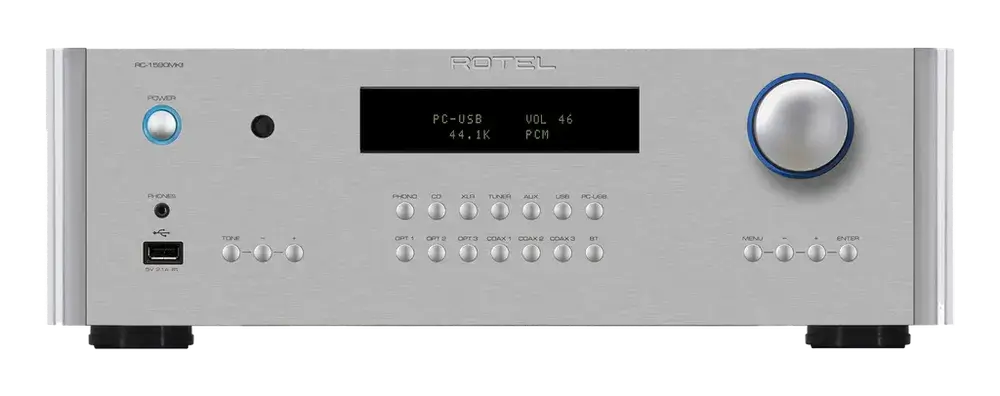

Rotel RC-1590 MKII Stereo Preamplifier

EAN: 672563270215

$2,999.00 AUD

Rotel RC-1590 MKII Stereo Preamplifier is a flagship reference preamplifier that reflects more than 60 years of Rotel hi-fi engineering expertise. Designed to be the centrepiece of a premium two-channel audio system, it combines high-performance analogue circuitry with advanced digital technology to deliver exceptional clarity, accuracy, and a wide, natural soundstage. Featuring a Texas Instruments 32-bit/384kHz DAC, balanced XLR inputs and outputs, a Moving Magnet phono stage, aptX™ and AAC Bluetooth, MQA support, and Roon Tested certification, the RC-1590 MKII offers outstanding versatility for vinyl, high-resolution digital audio, and wireless streaming alike.

Finish: Black

Black Silver

Quantity:

✓ Australian Retailer
✓ Full Australian Warranty
✓ Fast Australia-Wide Shipping
✓ Local Expert Support

Specifications

Rotel RC-1590 MKII Stereo Preamplifier

Specification	Value
Brand	Rotel
Model	RC-1590MKII
Product type	Stereo Preamplifier
Dac	Texas Instruments 32-bit/384kHz Digital to Analog Converter
Bluetooth	aptX and AAC
Phono input	Moving Magnet (MM)
Balanced inputs	XLR
Balanced outputs	XLR
Roon	Certified Roon Tested
Mqa	Supports MQA and MQA Studio
Thd	<0.002%
Intermodulation distortion	<0.002%
Phono input sensitivity/impedance	2.5 mV / 47k ohms
Line input rca sensitivity/impedance	150 mV / 100k ohms
Line input xlr sensitivity/impedance	250 mV / 100k ohms
Phono input overload	64 mV
Line input rca overload	4 V
Line input xlr overload	5.5 V
Rca output level	1 V
Xlr output level	2 V
Phono frequency response	20 Hz-20 kHz (+0.3 dB, -0.2 dB)
Line rca frequency response	10 Hz-100 kHz (+0 dB, -0.1 dB)
Line xlr frequency response	10 Hz-100 kHz (+0 dB, -0.1 dB)
Bass control	±10 dB at 100 Hz
Treble control	±10 dB at 10 kHz
Phono snr	80 dB
Line rca snr	117 dB
Line xlr snr	115 dB
Phono channel separation	>85 dB
Line rca channel separation	>85 dB
Line xlr channel separation	>75 dB
Digital frequency response	20 Hz-20 kHz (0 ±0.5 dB Max)
Digital snr	108 dB
Digital input sensitivity/impedance	0 dBFs / 75 ohms
Digital preamplifier output level	1.65 V (at -20 dB)
Coaxial/optical support	SPDIF LPCM up to 24-bit/192 kHz
Pc-usb audio class 1.0	up to 24-bit/96 kHz
Pc-usb audio class 2.0	up to 32-bit/384 kHz (driver required)
Pc-usb mqa	MQA and MQA Studio up to 24-bit/384 kHz
Power requirements europe	230 V, 50 Hz
Power requirements usa	120 V, 60 Hz
Power consumption	45 W
Standby power consumption	<0.5 W
Btu	78 BTU/h
Dimensions	431 x 144 x 348 mm
Dimensions inches	17 x 5 11/16 x 13 7/9 in
Front panel height	3U / 132.6 mm / 5 1/4 in
Weight	10.1 kg / 22.27 lbs
Finish	Silver and Black

Product Details

Rotel RC-1590 MKII Stereo Preamplifier Delivers Reference-Grade Control

Rotel RC-1590 MKII Stereo Preamplifier is a flagship reference preamplifier that showcases the engineering philosophy Rotel has refined over more than 60 years of hi-fi design. Developed for audiophiles who demand exceptional transparency and flexibility, the Rotel RC-1590MKII Stereo Preamplifier combines premium analogue circuitry with advanced digital technology to serve as the heart of a high-performance stereo system.

Rotel RC-1590 MKII Power Supply Creates a Low-Noise Foundation

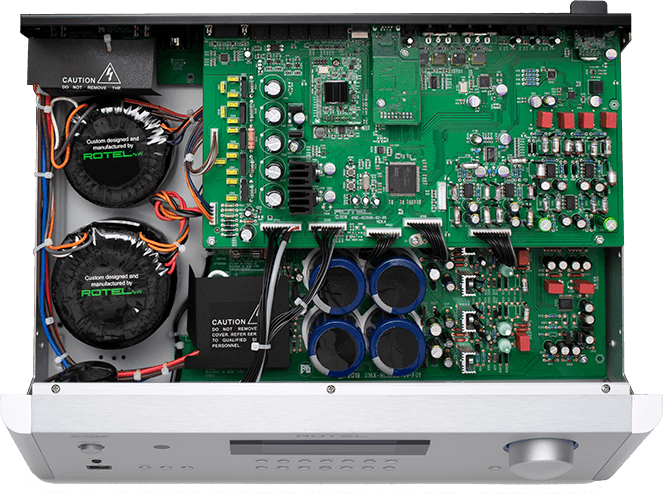

Rotel RC-1590 MKII Stereo Preamplifier is built around a sophisticated power supply featuring dual in-house manufactured toroidal transformers. By physically and electrically isolating the analogue and digital sections, the design provides dedicated power to critical circuits while reducing interference. Low ESR slit-foil capacitors further minimise distortion and contribute to an exceptionally low noise floor, allowing music to emerge with greater clarity and dynamic expression.

Rotel RC-1590 MKII DAC Reproduces Digital Audio with Precision

Rotel RC-1590 MKII Stereo Preamplifier features a premium Texas Instruments 32-bit/384kHz Digital-to-Analogue Converter, enabling the accurate reproduction of high-resolution digital sources. Rotel complements the DAC with proprietary acoustically tuned output filter circuits that preserve fine detail, precise imaging, and an expansive soundstage, making recordings sound natural and engaging.

Rotel RC-1590 MKII Signal Path Preserves Musical Integrity

Rotel RC-1590 MKII Stereo Preamplifier employs DIRECT-PATH bypass modes that remove unnecessary circuitry from the analogue signal path. This streamlined approach helps maintain signal integrity while reducing unwanted noise and distortion, delivering a cleaner and more immersive listening experience that reflects Rotel's long-standing commitment to faithful music reproduction.

Rotel RC-1590 MKII Connectivity Supports Every Listening Preference

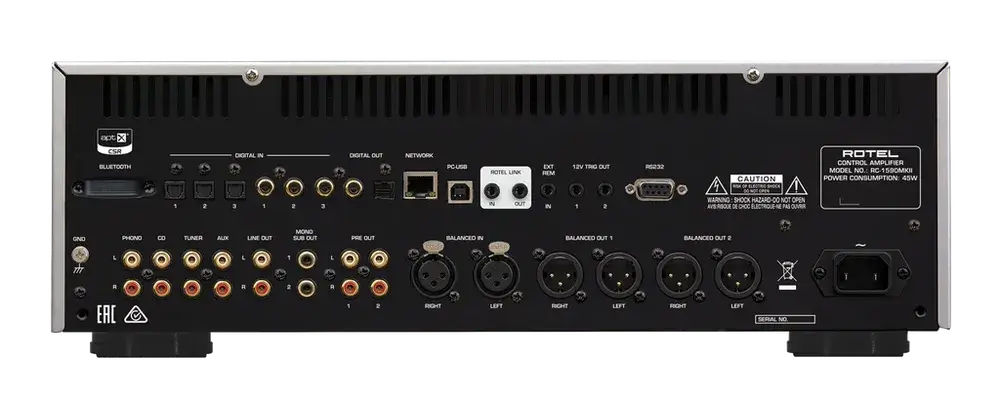

Rotel RC-1590 MKII Stereo Preamplifier offers extensive connectivity for both modern and traditional audio sources. Balanced XLR inputs and outputs provide high-quality connections with improved noise rejection, while conventional analogue inputs ensure compatibility with a wide range of source components and power amplifiers. Dual RCA and XLR outputs also provide flexibility for bi-amplification installations, and a dedicated subwoofer output allows seamless integration into more comprehensive stereo systems.

Rotel RC-1590 MKII Phono Stage Welcomes Vinyl Collections

Rotel RC-1590 MKII Stereo Preamplifier includes an integrated Moving Magnet phono input, allowing compatible turntables to connect directly without requiring an external phono stage. This built-in capability makes the preamplifier an excellent choice for vinyl enthusiasts seeking a streamlined yet high-performance analogue setup.

Rotel RC-1590 MKII Wireless and High-Resolution Audio Expand Versatility

Rotel RC-1590 MKII Stereo Preamplifier supports aptX™ and AAC Bluetooth for convenient wireless streaming from smartphones, tablets, and laptops while maintaining impressive audio quality. For wired digital playback, the PC-USB input supports resolutions up to 32-bit/384kHz, enabling playback of demanding high-resolution audio files when the appropriate driver is installed.

Rotel RC-1590 MKII MQA and Roon Compatibility Enhance Digital Music

Rotel RC-1590 MKII Stereo Preamplifier supports both MQA and MQA Studio, allowing compatible recordings to be fully unfolded and rendered for studio-quality playback. The unit is also Certified Roon Tested, meaning Rotel and Roon have collaborated to ensure seamless integration and a reliable user experience for music library management and streaming. These features make the Rotel RC-1590MKII Stereo Preamplifier a compelling choice for listeners who value both cutting-edge digital performance and classic analogue excellence.
