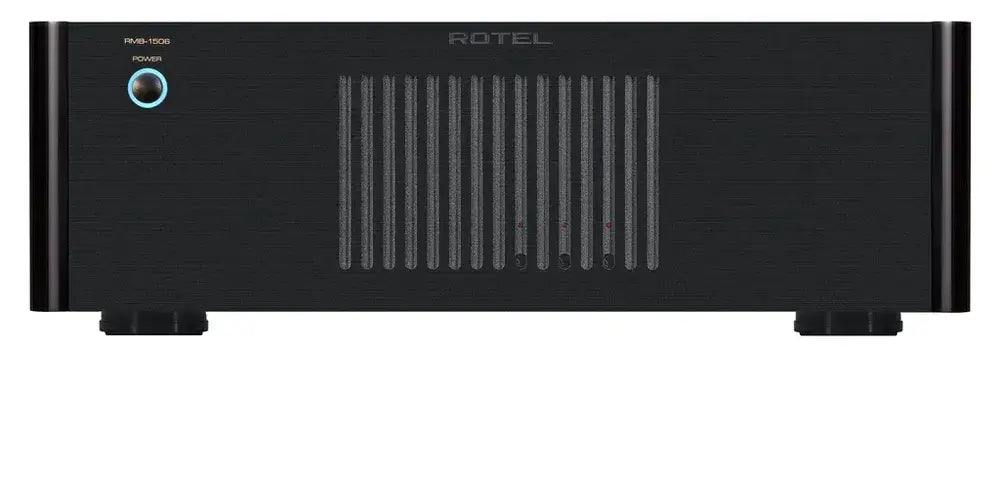

Rotel RMB-1506 Distribution Power Amplifier
Rotel RMB-1506 is a 6-channel custom installation amplifier designed to expand high-quality audio into multiple rooms throughout the home. Perfect for distributed audio and multi-zone systems, it integrates seamlessly with compatible surround receivers or preamp/processors to deliver music across three additional living areas. Its Class AB amplifier design ensures reliable, high-fidelity performance, while custom installation features such as automatic signal sensing and remote control compatibility make it ideal for professional home integration. For larger whole-home audio systems, additional RMB-1506 amplifiers can be added to create a scalable and flexible solution.
Limited Availability - Contact Us Before Purchasing.
Specifications
Rotel RMB-1506 Distribution Power Amplifier
| Specification | Value |
|---|---|
| Brand |
Rotel |
| Model |
RMB-1506 |
| Product |
6-Channel Custom Installation Amplifier |
| Amplifier design |
Class AB |
| Channels |
6 |
| Power output 8 ohms |
6 x 50 W per channel (all channels driven) |
| Power output 4 ohms |
6 x 80 W per channel (all channels driven) |
| Thd |
<0.03% |
| Damping factor |
>200 |
| Input impedance |
20 kOhms |
| Input sensitivity |
1.0 V |
| Amplifier gain |
26 dB |
| Input overload level |
5.0 V |
| Peak current |
>25 A |
| Frequency response |
10 Hz-100 kHz |
| S/n ratio |
115 dB (IHF A) |
| Crosstalk/separation |
>70 dB |
| Minimum speaker impedance |
4 Ohms |
| Auto turn on level |
1 mV input signal |
| Power requirements |
120 V 60 Hz (USA); 230 V 50 Hz (Europe) |
| Power consumption |
450 W |
| Idle power |
42 W |
| Standby power |
<0.5 W |
| Dimensions |
431 x 144 x 424 mm (17 x 5.7 x 16.7 in) |
| Weight |
15.3 kg (33.75 lb) |
| Panel height |
3U, 132.6 mm (5.2 in) |
| Finish |
Black |
| Features |
Automatic signal sensing; 12 V trigger input; Custom installation compatible |
