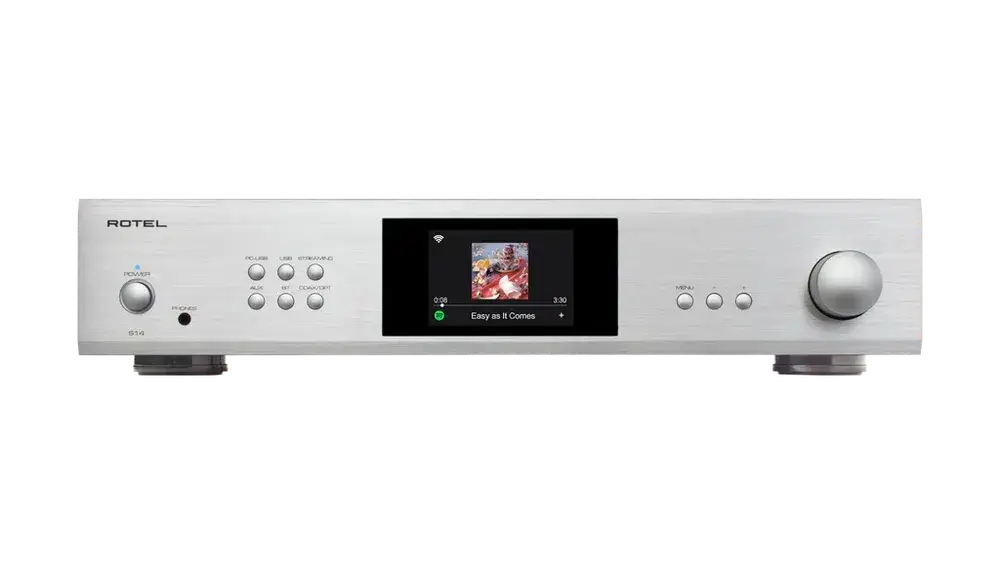

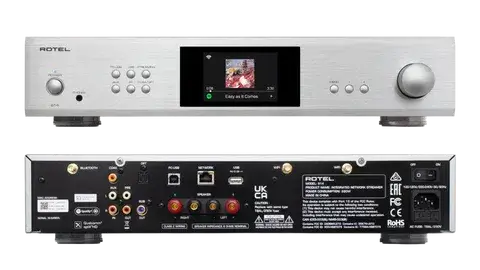

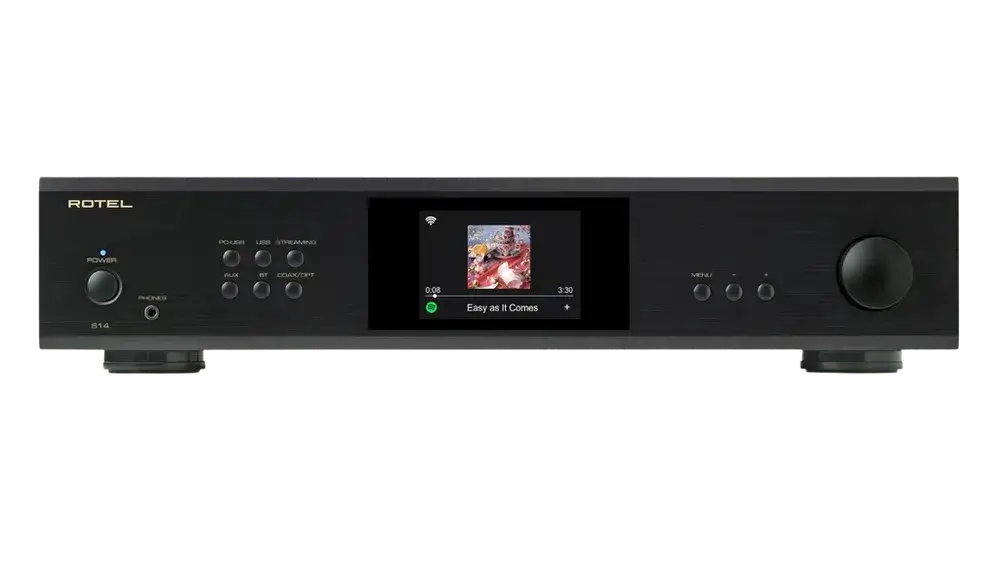

Rotel S14 Integrated Network Streamer
Rotel S14 Integrated Network Streamer is an all-in-one streaming amplifier that combines high-quality network music playback, powerful amplification, and premium digital audio technology in a single elegant component. Drawing on more than 60 years of Rotel engineering expertise, the S14 is designed to deliver the musical performance and reliability that have made the brand a respected name in hi-fi. With seamless access to popular streaming services, internet radio, and wireless connectivity, alongside a colour display showing album artwork and track information, the S14 offers a sophisticated just-add-speakers solution for enjoying both modern streaming and traditional audio sources.
Specifications
Rotel S14 Integrated Network Streamer
| Specification | Value |
|---|---|
| Product |
Rotel S14 |
| Category |
Integrated Network Streamer |
| Maximum power output |
150 watts/channel (4 ohms) |
| Continuous power output |
80 watts/channel (8 ohms) |
| Amplifier class |
Class AB |
| Total harmonic distortion |
<0.04% |
| Intermodulation distortion |
<0.03% (60 Hz:7 kHz, 4:1) |
| Frequency response line level inputs |
10 Hz–100 kHz, 0 ±0.5 dB |
| Damping factor |
400 (20 Hz–20 kHz, 8 ohms) |
| Input sensitivity line level |
200 mV |
| Input impedance line level |
47 kΩ |
| Input overload line level |
4.5 V |
| Tone controls |
Bass/Treble ±10 dB at 100 Hz/10 kHz |
| Signal-to-noise ratio line level |
100 dB (IHF A-weighted) |
| Digital-to-analogue converter |
ESS 32-bit Sabre |
| Digital section frequency response |
10 Hz–90 kHz (0 ±2 dB, Max) |
| Digital section signal-to-noise ratio |
98 dB (IHF A-weighted) |
| Digital input sensitivity |
-20 dBFS |
| Digital input impedance |
75 ohms |
| Digital inputs |
S/PDIF LPCM up to 24-bit/192 kHz |
| Pc-usb |
USB Audio Class 2.0 up to 24-bit/384 kHz (driver installation required) |
| Mqa support |
MQA and MQA Studio up to 24-bit/384 kHz |
| Network connectivity |
Wired Ethernet and dual-band Wi-Fi |
| Bluetooth |
Wireless aptX HD and AAC Bluetooth |
| Streaming services |
Tidal,Qobuz,Spotify Connect,AirPlay 2,Google Cast,Roon Ready,Internet Radio,Podcasts |
| Rear usb playback |
Supports MP3,WMA,AAC from USB flash drives |
| Additional inputs |
Coaxial,Optical,Analogue RCA,PC-USB,Bluetooth |
| Display |
Front-panel colour graphic display with album artwork,track,title and artist information |
| Remote control |
Included |
| Power requirements usa |
120 V,60 Hz |
| Power requirements ec |
230 V,50 Hz |
| Power consumption |
280 watts |
| Standby power consumption |
<0.5 watts |
| Heat output |
733 BTU/h (4 ohms,1/8 power) |
| Dimensions |
430 × 93 × 345 mm (17 × 3 5/8 × 13 1/2 in) |
| Front panel height |
80 mm (3 1/8 in) |
| Weight |
9.15 kg (20.17 lb) |
| Finish |
Silver and Black |
