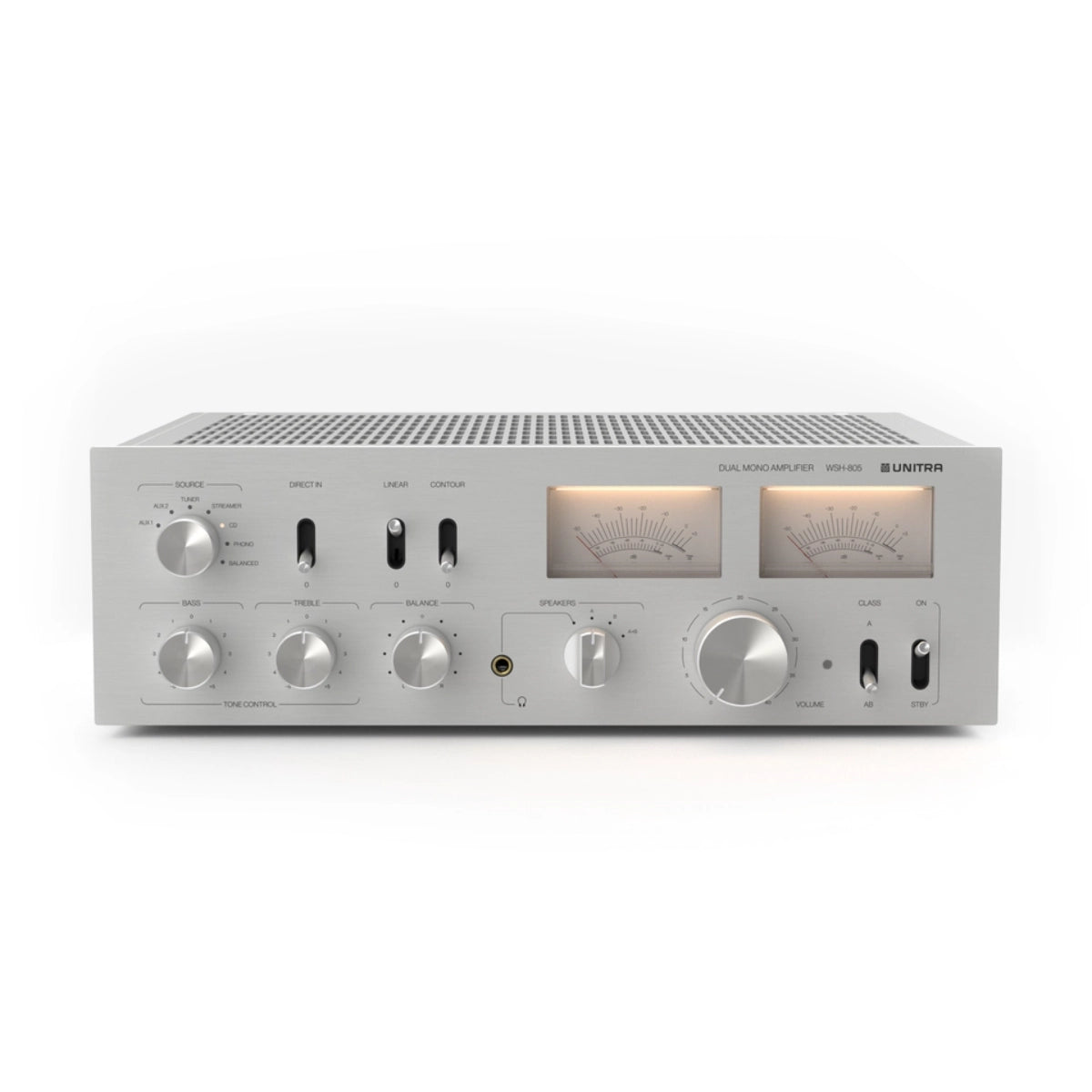

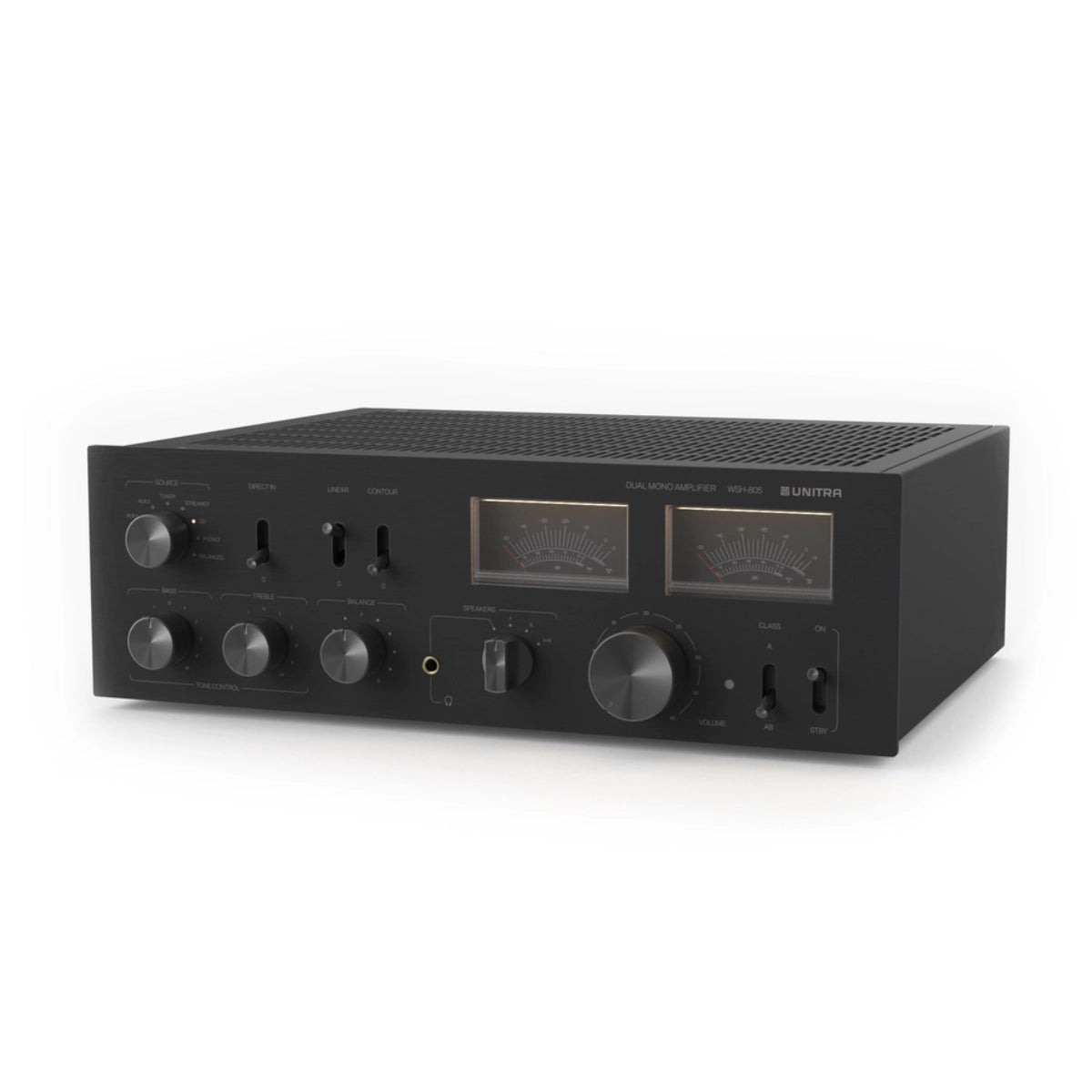

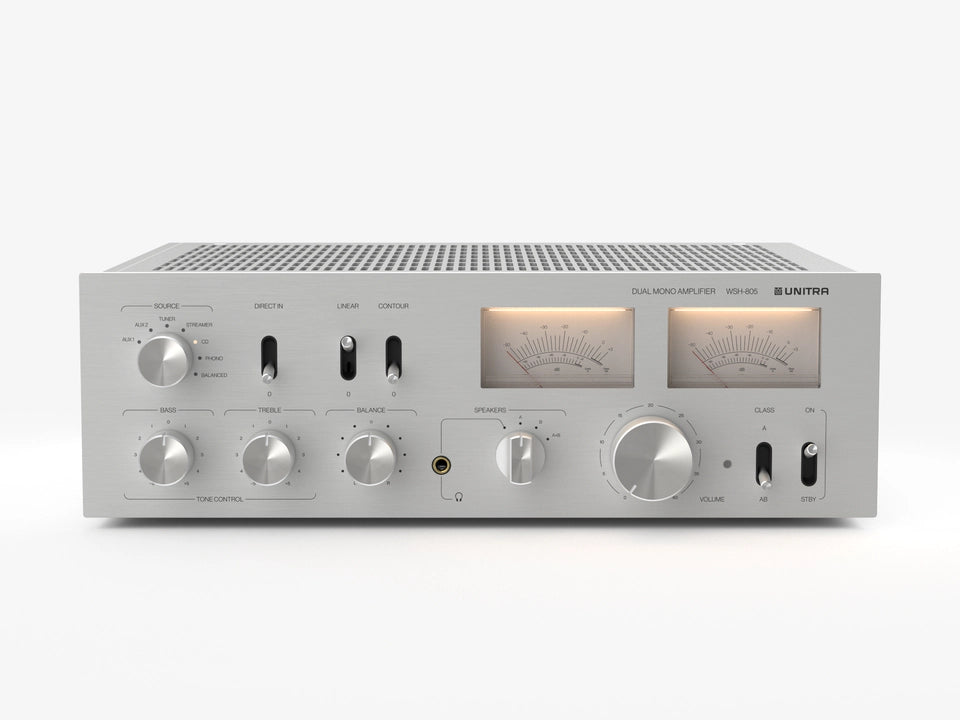

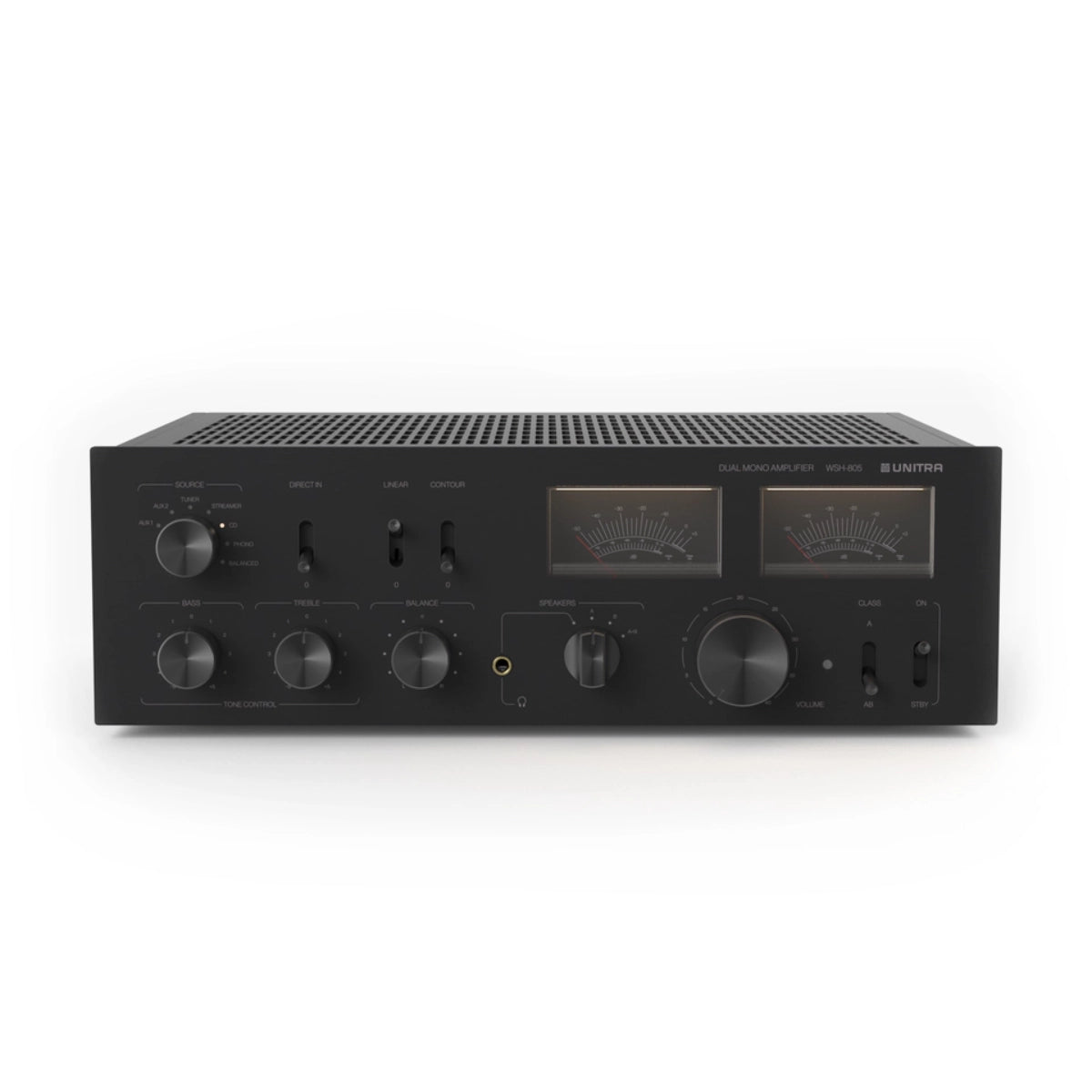

Unitra WSH-805 Integrated Stereo Amplifier Black or Silver

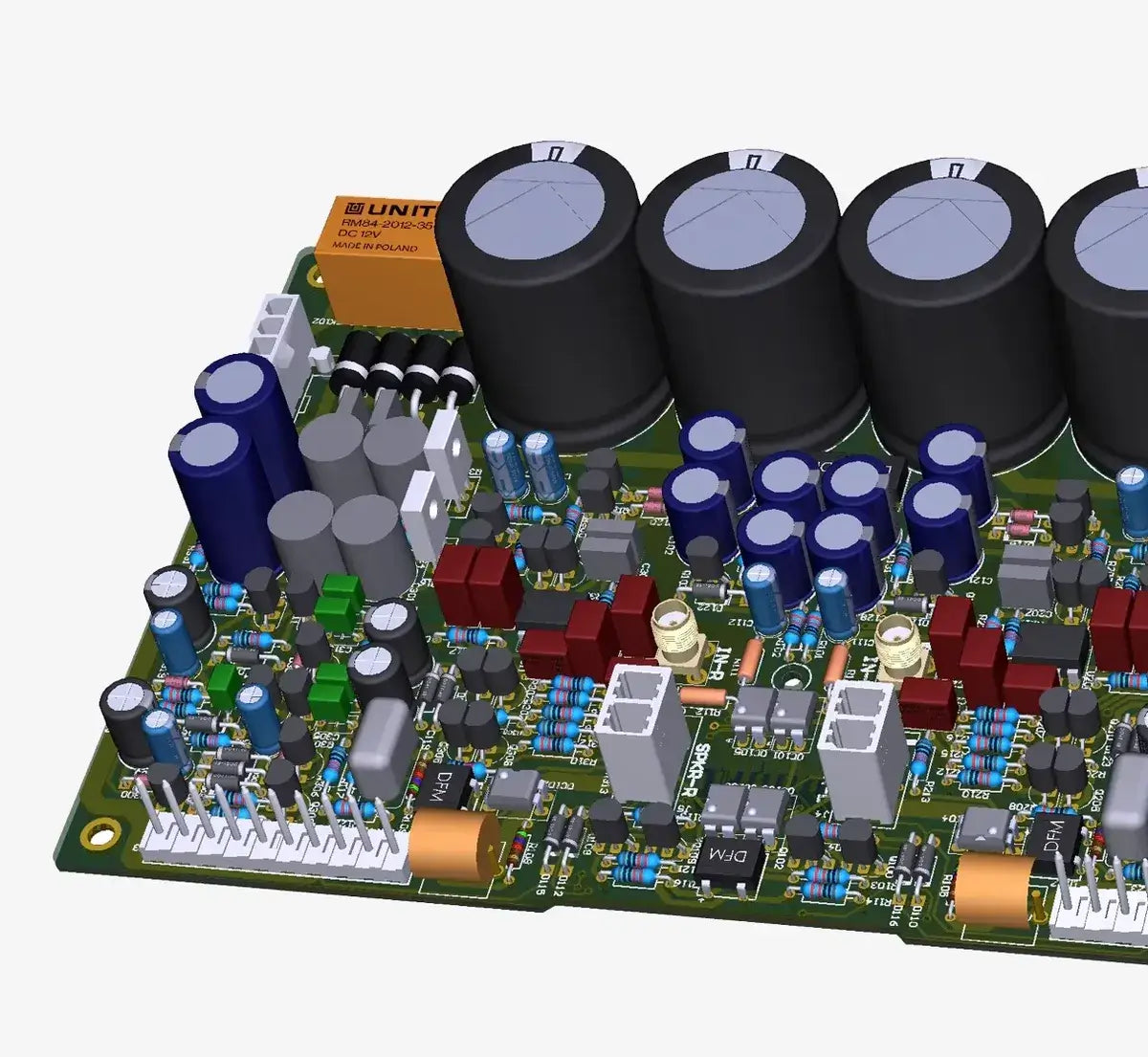

The Unitra WSH-805 Integrated Stereo Amplifier merges classic design with modern engineering, featuring a dual-mono architecture for optimal channel separation and sound clarity. Inspired by the iconic 1970s Unitra WSH-205 amplifier, this all-analog amplifier provides pure, distortion-free audio without digital interference. The amplifier offers both Class A and Class AB operation, selectable via a front-panel switch for precision sound or higher efficiency. Its robust 22 kg chassis houses 1586 components, including current feedback topology for dynamic performance. With balanced XLR and RCA inputs, a built-in phono preamp, and a headphone amplifier, it delivers unmatched versatility for discerning audiophiles.
Specifications
Unitra WSH-805 Integrated Stereo Amplifier Black or Silver
Specification | Value |
---|---|
Rms output power class ab 8 ω |
80 W |
Rms output power class ab 4 ω |
125 W |
Rms output power class a 8 ω |
8 W |
Rms output power class a 4 ω |
16 W |

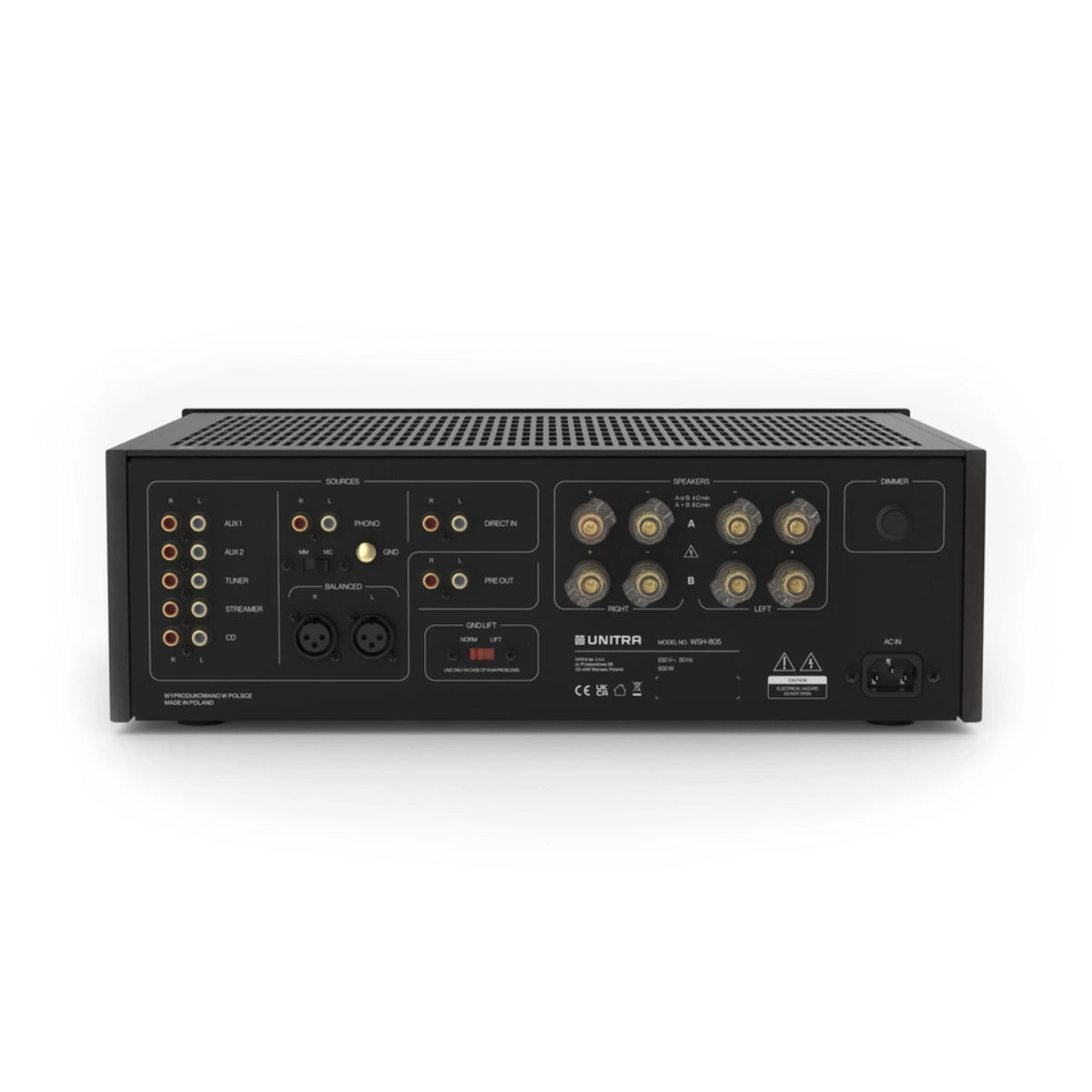

Inputs |
RCA: Aux 1, Aux 2, Tuner, CD, Streamer, Phono + GND (MM / MC), Direct In; XLR: Balanced |
Outputs |
Speaker terminals: A / B / AB; 6.3 mm Headphone Output; Pre Out |
Power amplification specifications total harmonic distortion (thd) |
< 0.0008% (40 W) |
Power amplification specifications frequency response |
6.3 Hz to 110 kHz (–3 dB) |
Power amplification specifications signal-to-noise ratio (snr) |
102 dB |
Power amplification specifications channel separation |
> 100 dB (dla 1 kHz) |
Power amplification specifications intermodulation distortion |
19 + 20 kHz @ 10 W < 0.0015% |
Adjustments |

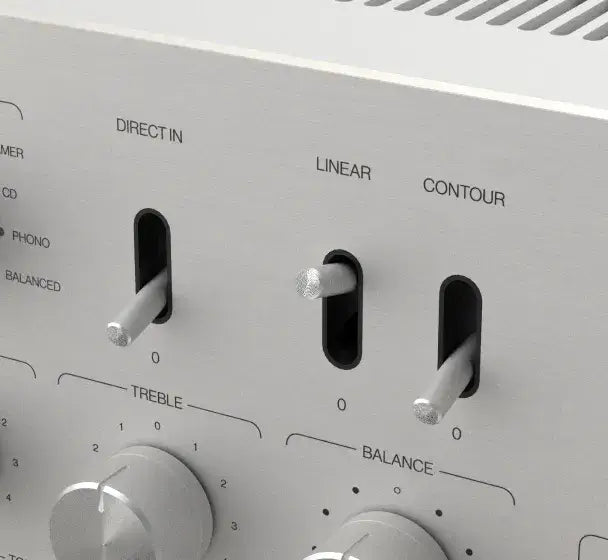

Bass, Treble, Contour (smart adaptive contour), Linear (tone control bypass), Balance |
