Wharfedale Diamond 12.1i Bookshelf Speakers

Why choose the Wharfedale Diamond 12.1i bookshelf speaker

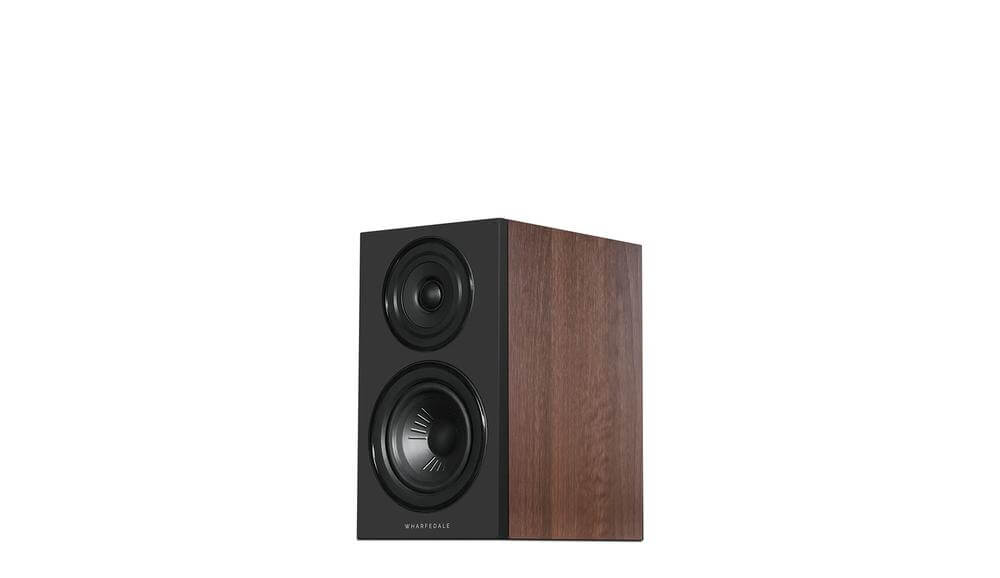

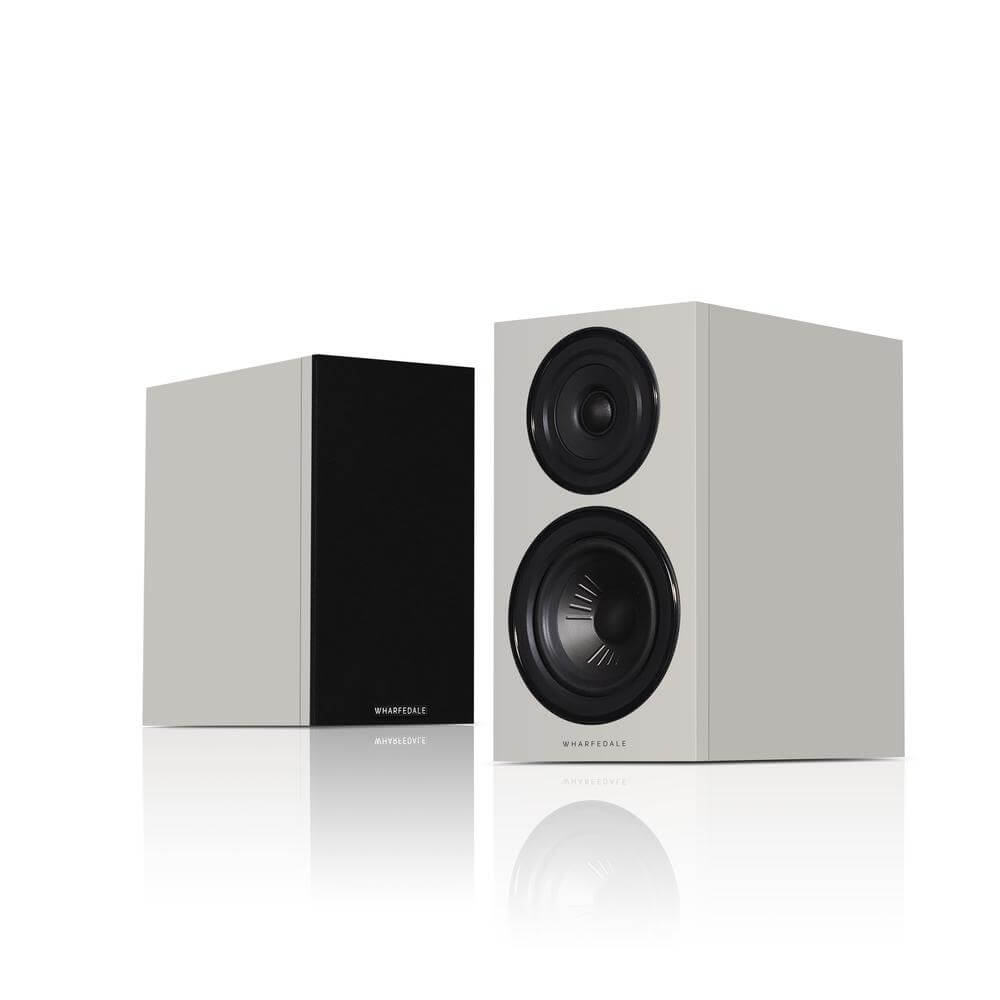

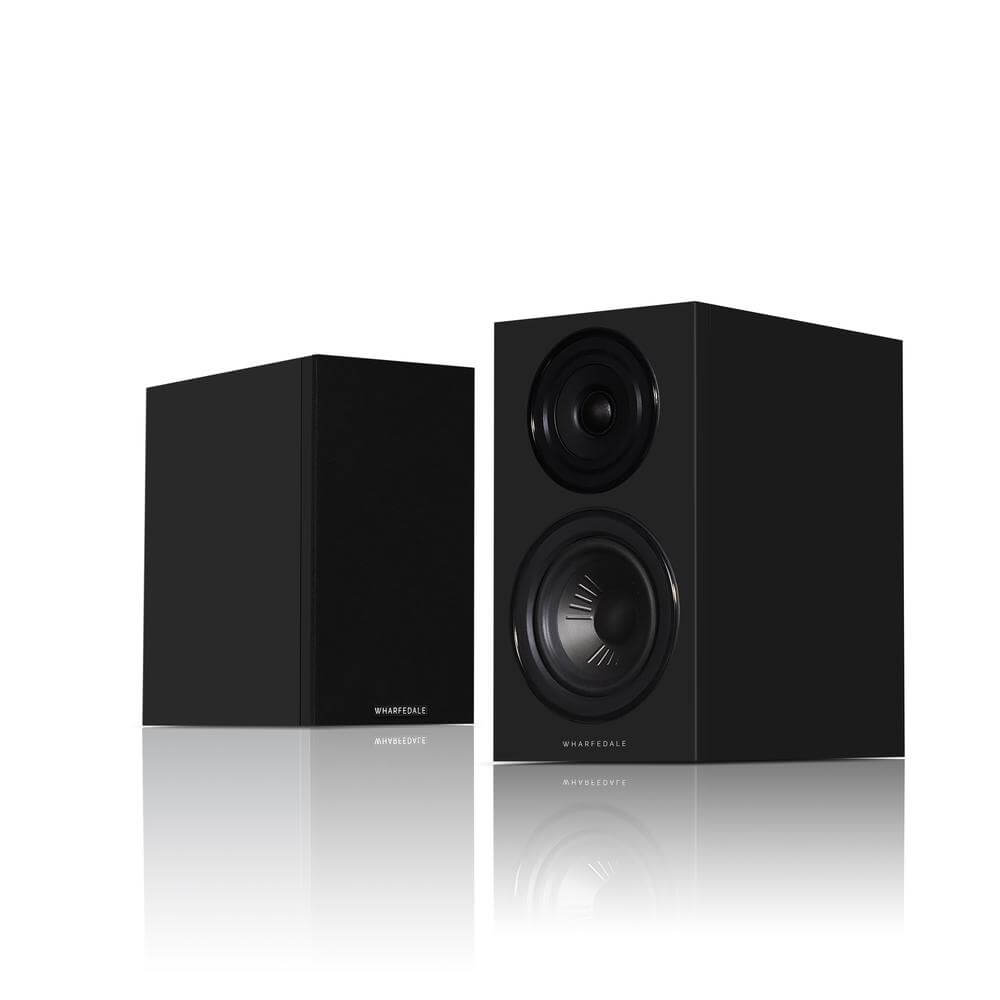

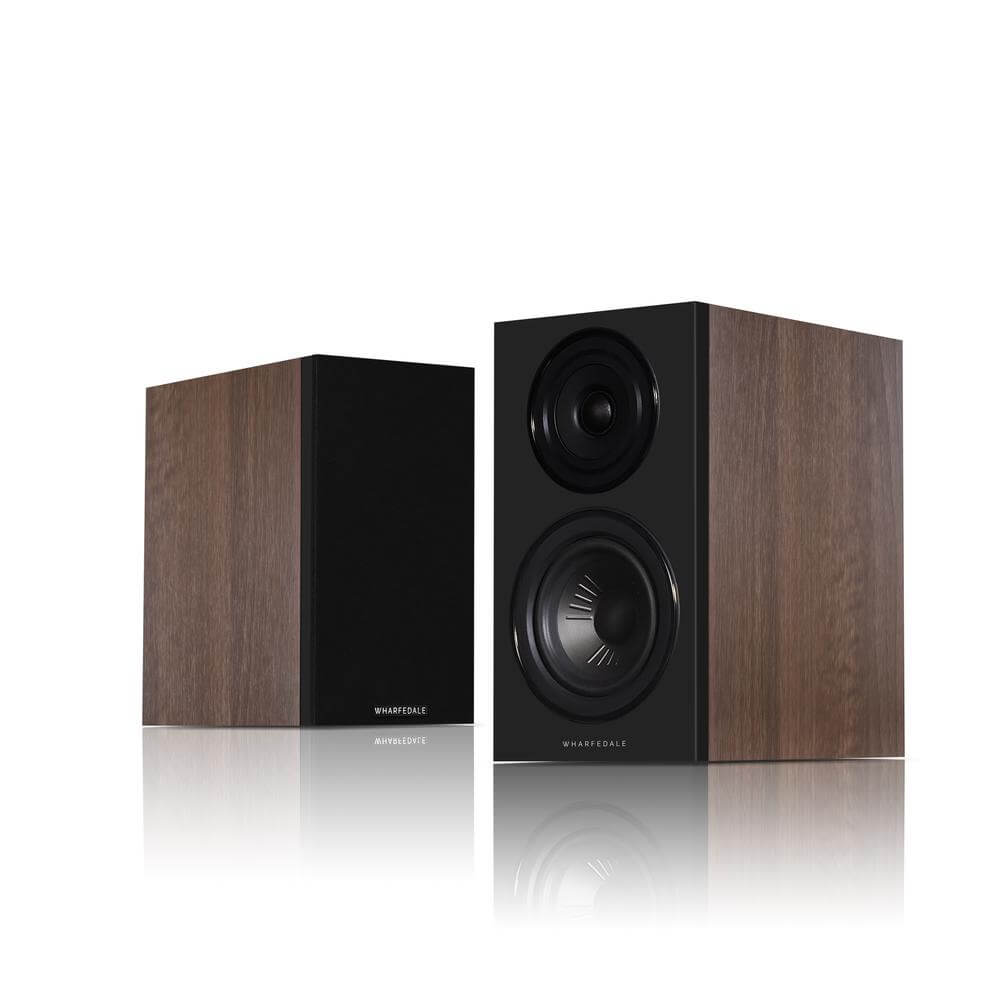

The Wharfedale Diamond 12.1i is a 2-way bookshelf speaker from Wharfedale's Diamond 12i Series, built on the design that made the original Diamond 12 one of the brand's most enduring and best-selling ranges since its 2020 launch. It's aimed at buyers who already know the Diamond 12 name for its value and build quality, and who want the same fundamental sound with refined bass control and a more contemporary finish. The Diamond 12.1i doesn't reinvent the series; it sharpens what buyers already responded to, through revised port tuning, updated internal damping, and a choice of three finishes: All-Black, Classic Walnut with a semi-matte black baffle, and Stone Grey.

What makes the Wharfedale Diamond 12.1i different from other affordable bookshelf speakers?

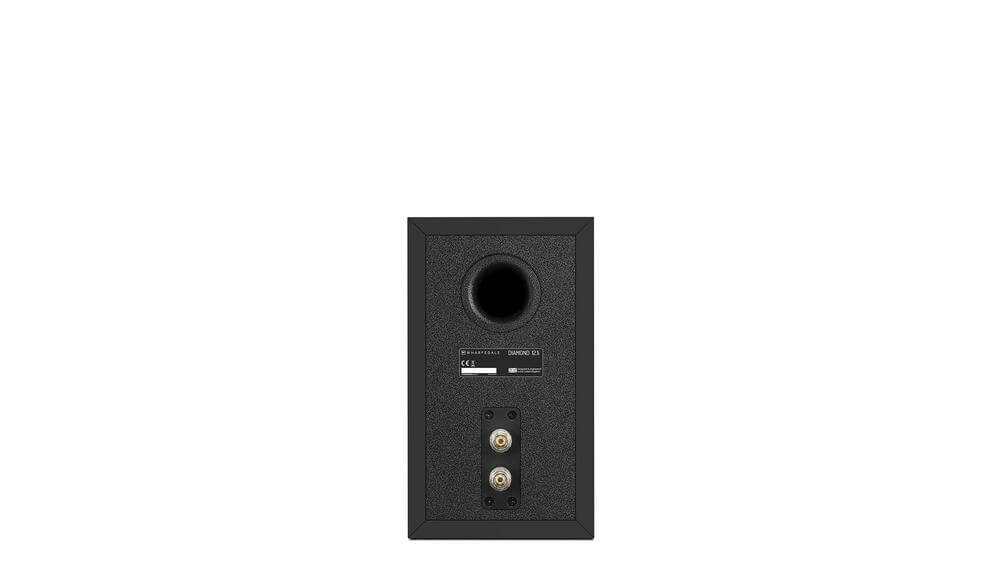

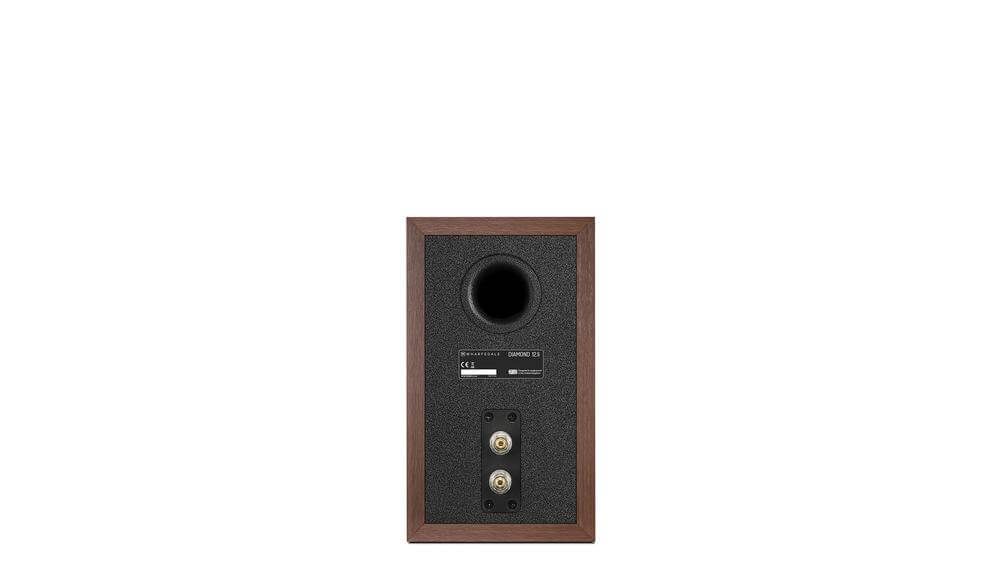

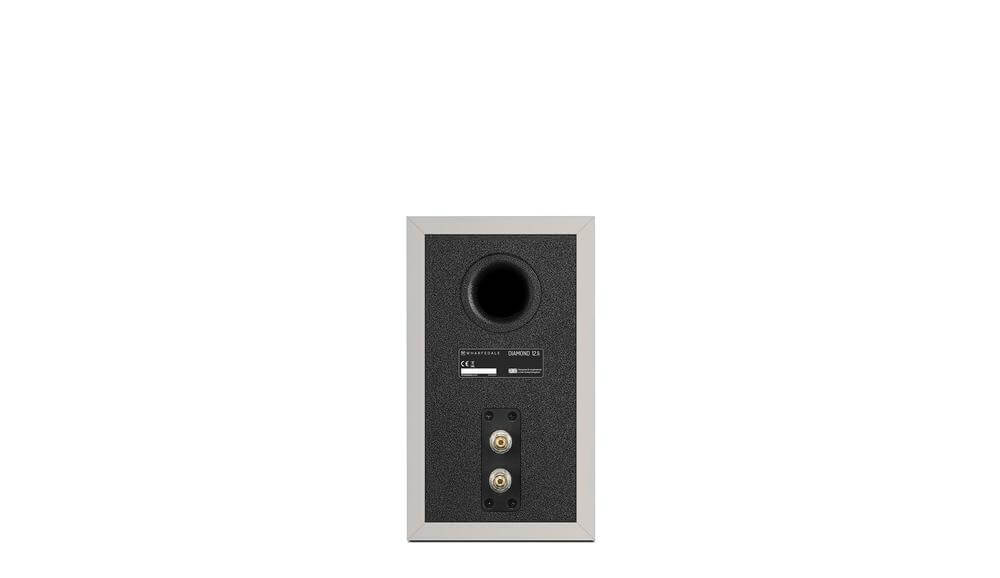

The Wharfedale Diamond 12.1i is differentiated primarily by its re-engineered bass reflex port and internal damping structure, rather than by a new driver line-up. Wharfedale's Director of Acoustic Design, Peter Comeau, along with engineers Dan Bailey Ornellas and Oliver Davies, spent several months refining port airflow using laser interferometry, anechoic and in-room measurement, and computational fluid dynamics to model pressure and airflow through the port itself. That process, backed by hundreds of hours of listening evaluation, produced a bass response with cleaner transitions between low and mid frequencies and consistent spatial performance regardless of where the speaker sits in a room.

What amplifier does the Diamond 12.1i need?

The Diamond 12.1i is rated at 8Ω nominal impedance with a minimum of 4.0Ω, making it compatible with the great majority of stereo amplifiers and AV receivers. Wharfedale specifies a recommended amplifier power range of 20 to 100W, and with a sensitivity of 88dB (2.83V at 1m), it doesn't demand a particularly high-current amplifier to reach reasonable listening levels. Peak SPL is rated at 96dB. Buyers building a system around a modest integrated amplifier or a mid-range AV receiver should find the Diamond 12.1i falls comfortably within typical operating limits rather than sitting at the demanding end of the range.

Who is the Diamond 12i Series built for?

The Diamond 12i Series is built for buyers assembling a stereo or home cinema system around a compact, moderately priced bookshelf speaker rather than a large floorstander. It has no AV shield, so it isn't intended for placement immediately beside a CRT display or other magnetically sensitive equipment, but that's rarely a constraint with modern flat-panel setups. Its 8.2 litre cabinet volume and 312 x 180 x (250+28)mm dimensions keep it suited to stands or shelf placement rather than floor use, and its 6.8kg per unit weight keeps it manageable on typical speaker stands. Buyers who valued the original Diamond 12's fit and finish but wanted a more modern cabinet finish are the clearest fit for the update.

How does the Klarity cone affect the sound?

The bass/mid driver's cone is made from Klarity, a blend of polypropylene and mica that keeps the cone stiff and lightweight at the same time. That combination lets the cone move quickly and settle quickly, which is what allows a driver to reproduce fast transients without smearing them, a common trade-off in cones that favour rigidity over mass or vice versa. A low-damping surround adds efficiency and dynamic range on top of the cone material itself, while ribbed cone shaping and profile simulation during development were used to keep the frequency response linear rather than allowing resonant peaks to build up across the cone's surface.

How does the magnet assembly reduce distortion?

The bass/mid driver's magnet assembly is fitted with an aluminium compensation ring, which offsets changes in inductance as the voice coil moves through its travel. In practice, this keeps distortion and intermodulation lower at higher excursions than a standard motor design would achieve. The voice coil itself is wound on a high-power epoxy/glass fibre bobbin, which Wharfedale states outperforms the materials typically used at this price point for power handling, thermal stability, and structural strength under sustained use.

What crossover design does the Diamond 12.1i use?

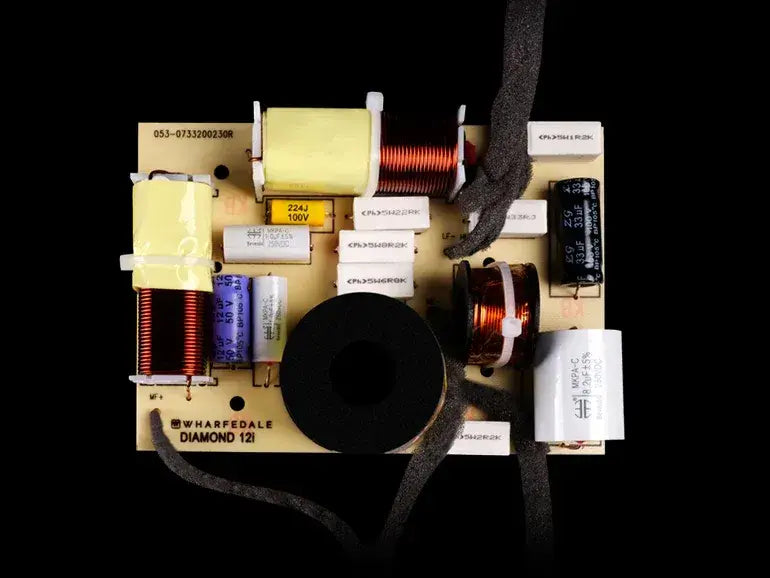

The Diamond 12.1i's crossover is a Linkwitz-Riley design set at 2.6kHz, built with air-core inductors, a component choice more commonly found in higher-priced speakers, and tuned for minimal phase shift so the bass/mid driver and tweeter integrate smoothly through the crossover region. Because air-core inductors carry more electrical resistance than iron-core alternatives, the bass/mid driver's magnet structure was modified specifically to compensate, keeping bass response fast and clean rather than trading crossover quality for low-end control.

How is the tweeter designed to widen dispersion?

The treble driver is a 1 inch (25mm) woven polyester dome finished with a high-loss damping coating, which extends and smooths the top-end response rather than letting it roll off unevenly or peak sharply. Its front plate uses a flat acoustic profile with minimal waveguide shaping, a design choice aimed at widening dispersion so off-axis listening positions, not just the exact sweet spot, still receive clear, natural high-frequency output. This is particularly relevant for buyers using the speaker outside a strict two-seat stereo setup, where off-axis performance affects how consistent the sound is across a room.

How is the cabinet built to control resonance?

The cabinet is built from a multi-layered sandwich construction, with the adhesive bonding between layers specifically tested for its damping properties rather than chosen for assembly convenience alone. Internally, computer-modelled spot bracing connects opposite cabinet walls, a method designed to reduce panel vibration without letting that vibration pass across to the opposite panel. Together, this construction reduces the cabinet's own contribution to colouration, which is what gives a bookshelf speaker its sense of solidity and control rather than the tonal quality resting on the drivers alone.

How does the Wharfedale Diamond 12.1i compare to other Wharfedale bookshelf speakers?

The Wharfedale Diamond 12.1i is the standard bookshelf model within the Diamond 12i Series, rather than the compact or floorstanding variants also offered under the same series name. Buyers who already own or are considering the original Diamond 12 should treat the 12.1i as a direct, drop-in update: the driver technology, crossover topology, and cabinet construction approach carry over, so the deciding factors are the refined bass port tuning and the new finish options rather than a change in core specification. Buyers comparing across Wharfedale's wider catalogue, such as the entry-level or higher-tier series, should use cabinet volume, recommended amplifier power, and frequency response as the practical comparison points, since these determine how a speaker matches an existing amplifier and room rather than finish or cosmetic differences.
