Wharfedale Diamond 12.2i Bookshelf Speakers

What makes the Wharfedale Diamond 12.2i different from the original Diamond 12?

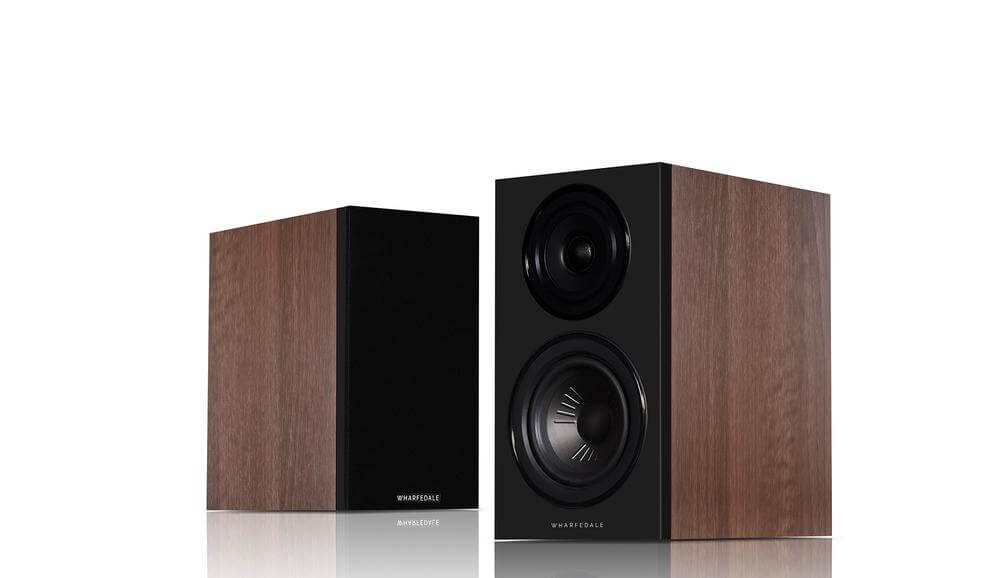

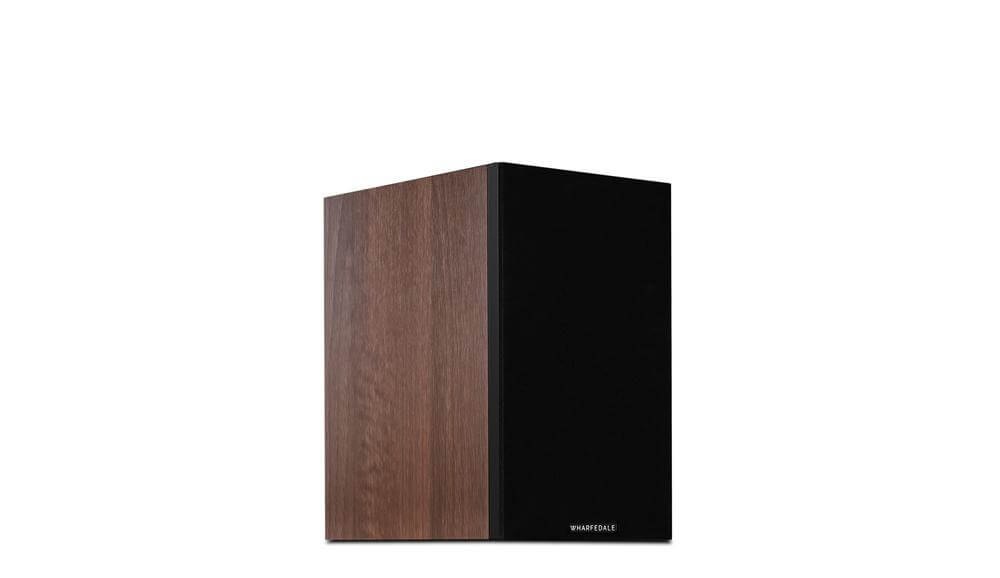

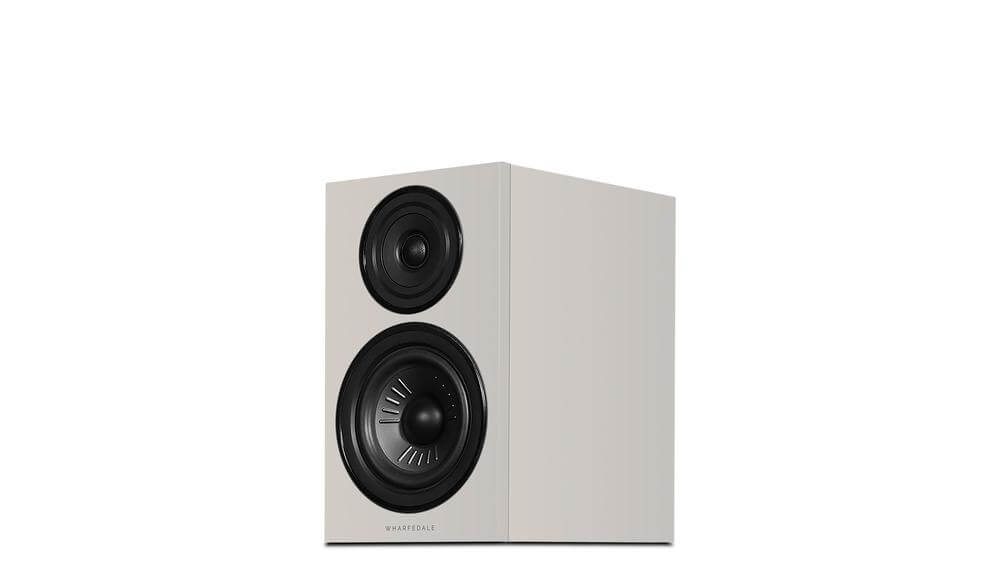

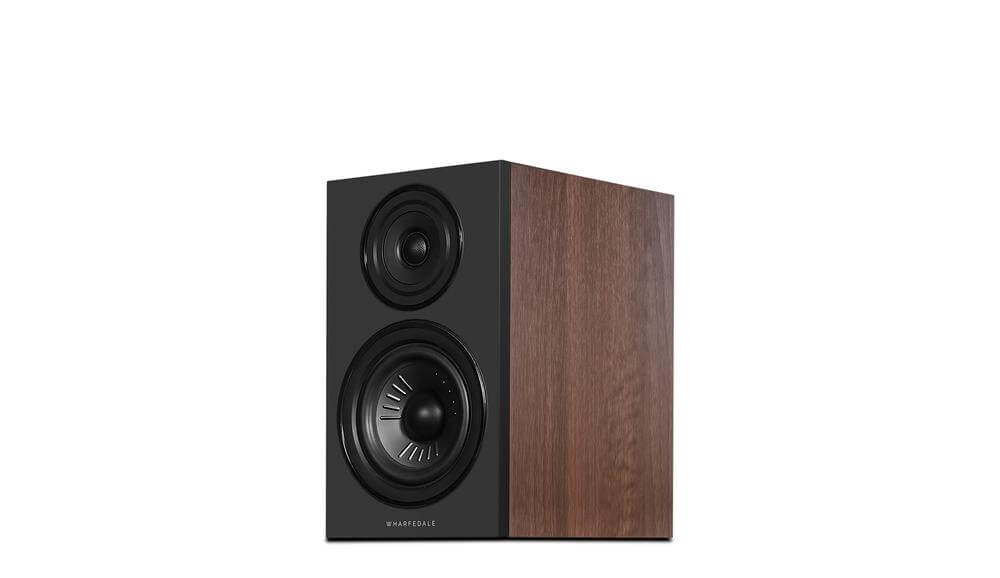

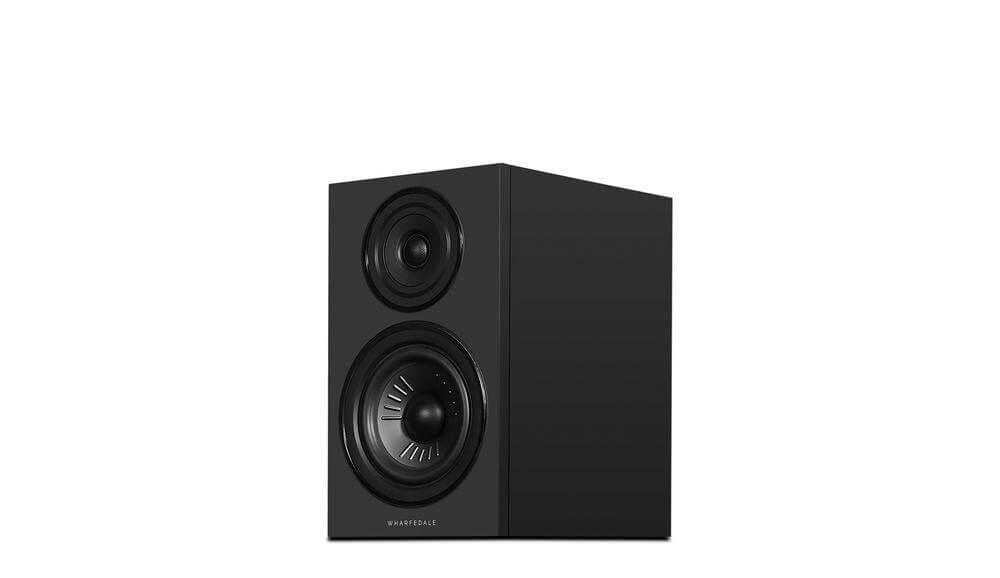

The Wharfedale Diamond 12.2i is the updated version of a 2-way bookshelf speaker that has sold consistently since the Diamond 12 series launched in 2020. Wharfedale's engineering team hasn't redesigned the speaker from scratch. Instead, they've refined the bass port design and internal damping while keeping the mid/bass driver's Klarity cone unchanged. The port tuning work, led by Director of Acoustic Design Peter Comeau alongside engineers Dan Bailey Ornellas and Oliver Davies, used laser interferometry, computational fluid dynamics, and extensive anechoic and in-room measurement to assess airflow and pressure through the port structure. The outcome is a bass response with better control and a smoother transition between low and mid frequencies, which stays consistent across different room placements rather than varying with cabinet position. Alongside this acoustic work, the Diamond 12.2i gains three new finish options: All-Black in a semi-matte tone, Classic Walnut paired with a semi-matte black baffle, and Stone Grey. These finishes sit over the same cabinet engineering as before, so buyers choosing the 12.2i over a used or older-stock Diamond 12 are paying for refined port behaviour and a more contemporary cabinet finish rather than a new driver platform.

Which amplifiers and systems suit the Wharfedale Diamond 12.2i?

The Wharfedale Diamond 12.2i carries a nominal impedance of 8Ω and a minimum impedance of 4.0Ω, so it's compatible with the great majority of stereo amplifiers and AV receivers on the market. Wharfedale specifies a recommended amplifier power range of 20-120W, giving buyers a working guide for matching this speaker to a suitable partnering amplifier rather than guessing at headroom. Sensitivity is rated at 88dB (2.83V at 1m), a figure that indicates how loud the speaker plays for a given amplifier output and helps buyers with lower-powered amplifiers judge whether the pairing will deliver adequate volume without straining the amp. Peak SPL is rated at 96dB. The crossover, which splits the signal between the 6.5-inch (150mm) advanced PP cone bass/mid driver and the 25mm textile dome tweeter at 2.0kHz, uses a Linkwitz-Riley topology built with air-core inductors, a component type more commonly found in higher-priced speakers. Because these inductors introduce additional resistance into the circuit, Wharfedale modified the mid/bass driver's magnet structure to compensate, keeping bass output fast and clean rather than letting the crossover component choice soften low-frequency delivery. There's no AV shield fitted, so buyers planning to position the Diamond 12.2i close to a CRT display or magnetically sensitive equipment should account for that.

How does its cabinet size affect placement and setup?

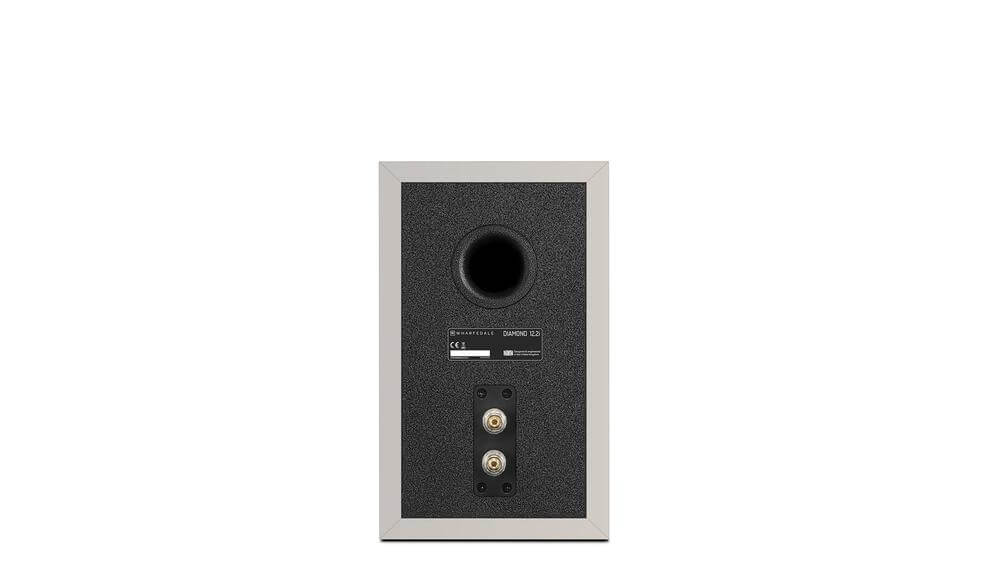

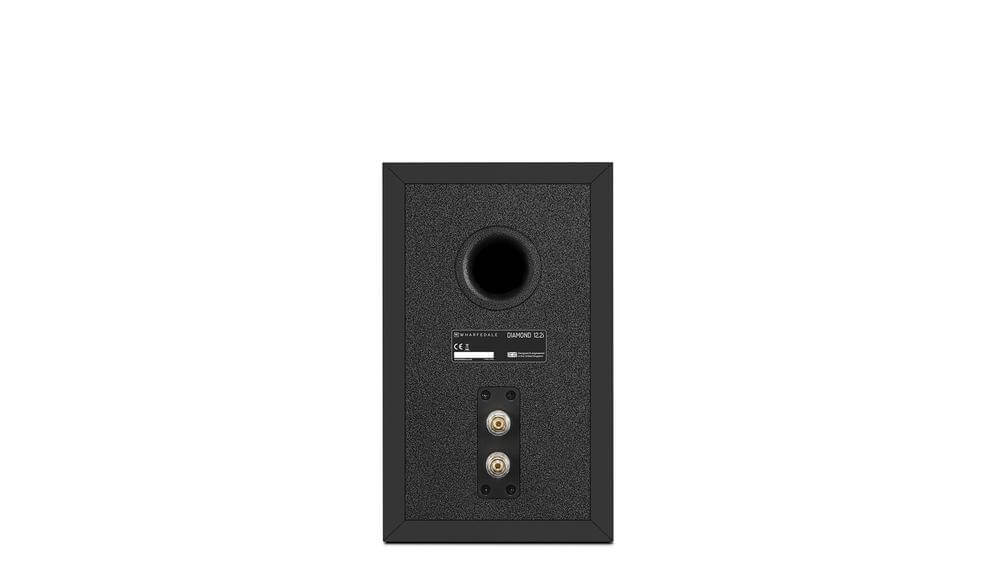

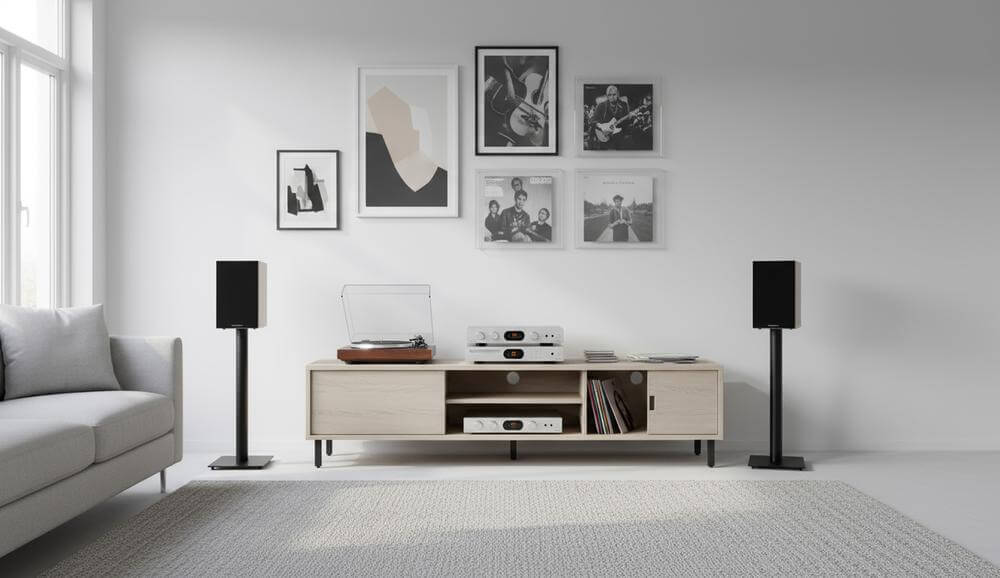

The Wharfedale Diamond 12.2i has an internal cabinet volume of 11.8 litres and external dimensions of 335 x 200 x (285+28)mm, with each speaker weighing 8.2kg. This is a bass reflex design, meaning the cabinet volume and the refined port tuning work together to shape low-frequency output, so buyers setting up the Diamond 12.2i on stands or shelves should leave clearance behind the port for airflow rather than pushing the cabinet flush against a wall, which can alter the bass response the port tuning was designed to control. The pairing of a fairly compact footprint with a frequency response of 50Hz-20kHz (+/-3dB) and bass extension down to 43Hz (-6dB) makes the Diamond 12.2i suited to stand-mounted use in small to medium rooms, where its size keeps it manageable on typical speaker stands without needing the floor space a floorstanding model would demand.

Who should buy this speaker over other models in the range?

The Wharfedale Diamond 12.2i is positioned as a 2-way standmount within the wider Diamond 12i series, making it a starting point for buyers building a stereo or home cinema system around compact bookshelf speakers rather than floorstanders. Because the Diamond 12i series carries over the Klarity cone and magnet engineering used across the original Diamond 12 range, buyers already familiar with, or upgrading from, an original Diamond 12 pair gain updated cabinet finishes and refined port tuning without a change in driver technology to plan around. The Diamond 12.2i suits listeners who want a compact pair of speakers for stereo listening or as front or surround channels in a multi-speaker system, given its role as an entry point into a series that spans further finish and cabinet options.

What technology is used in the mid/bass and tweeter drivers?

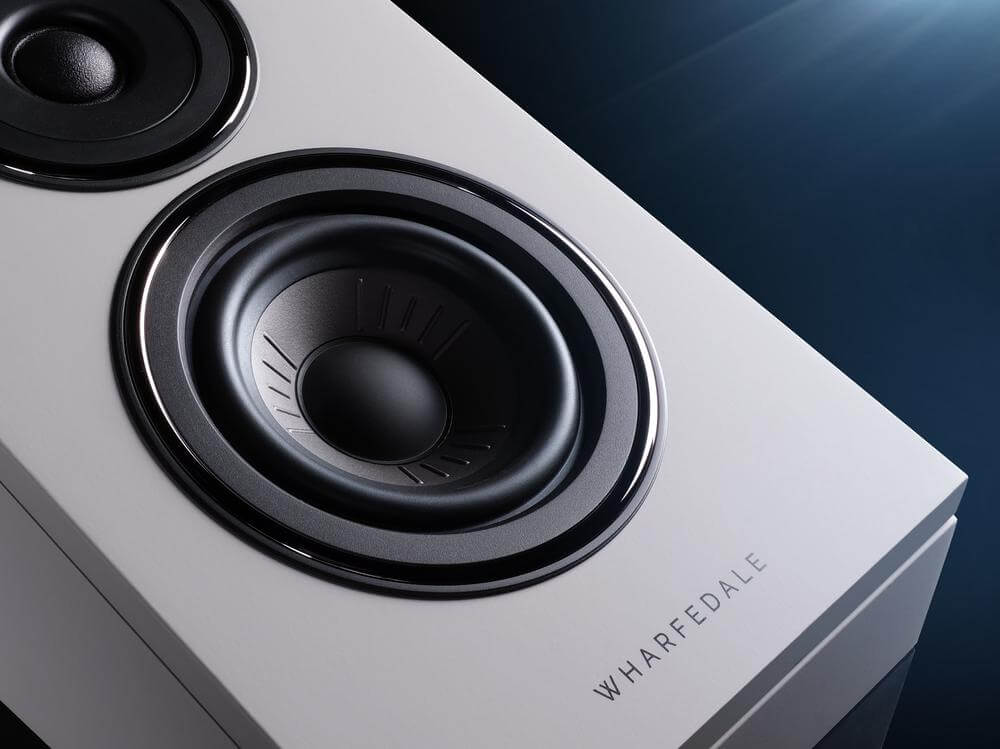

The Wharfedale Diamond 12.2i's mid/bass driver uses a cone made from Klarity, a polypropylene and mica blend chosen for its stiffness and low distortion, giving a cone that stays lightweight and well-damped while responding quickly to transients. A low-damping surround adds to the driver's efficiency and dynamic range, while ribbed cone shaping and profile simulation keep the frequency response linear without introducing added distortion. The magnet assembly includes an aluminium compensation ring that reduces the effects of inductance changes as the voice coil moves, which lowers intermodulation distortion for cleaner output. The voice coil itself is wound on an epoxy/glass fibre bobbin rather than a standard bobbin material, giving the driver greater power handling capacity, better thermal stability, and more structural strength at this price point. High frequencies come from a 25mm woven polyester dome tweeter with a high-loss damping coating, extending and smoothing the treble response. Its front plate uses a flat profile with a minimal waveguide, a design choice aimed at improving dispersion and off-axis output so the treble stays consistent as a listener moves off the speaker's central axis.

How is the Diamond 12.2i cabinet constructed?

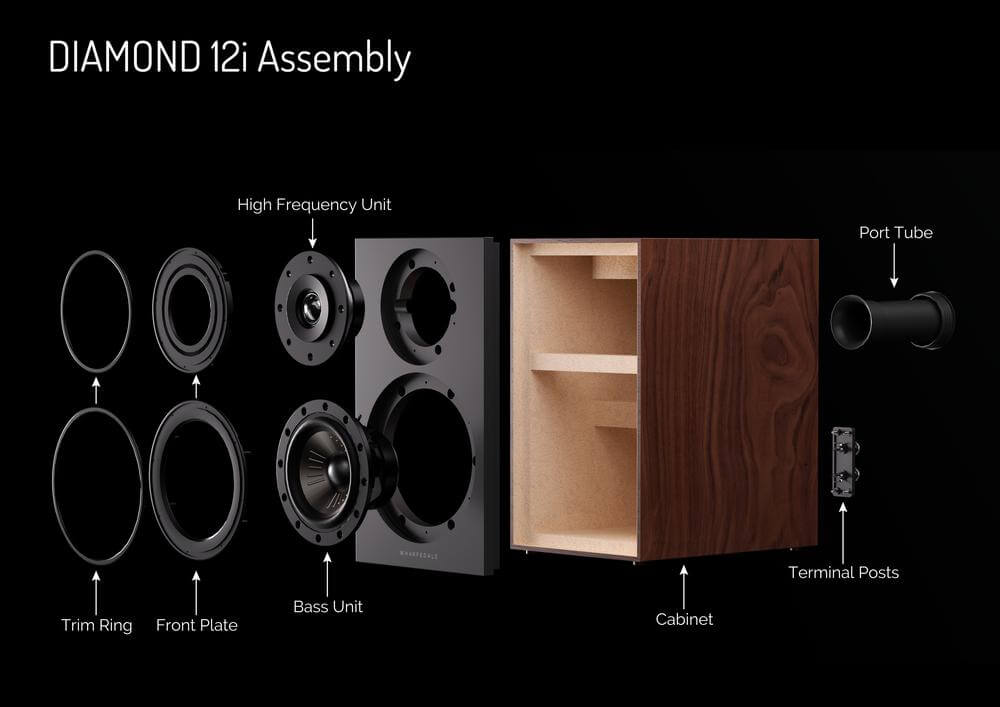

The Wharfedale Diamond 12.2i is built with a multi-layered sandwich cabinet construction designed to reduce panel resonance and the distortion that resonance introduces into the sound. Wharfedale's engineers tested the adhesive properties between the cabinet's layers specifically for their damping effect, rather than treating the adhesive as a purely structural choice. Inside the cabinet, spot bracing connects opposite walls using computer-modelled braces that reduce vibration without transferring it from one panel to another, which supports the speaker's overall structural rigidity and contributes to a more controlled, resonance-free enclosure for the drivers to operate within.
