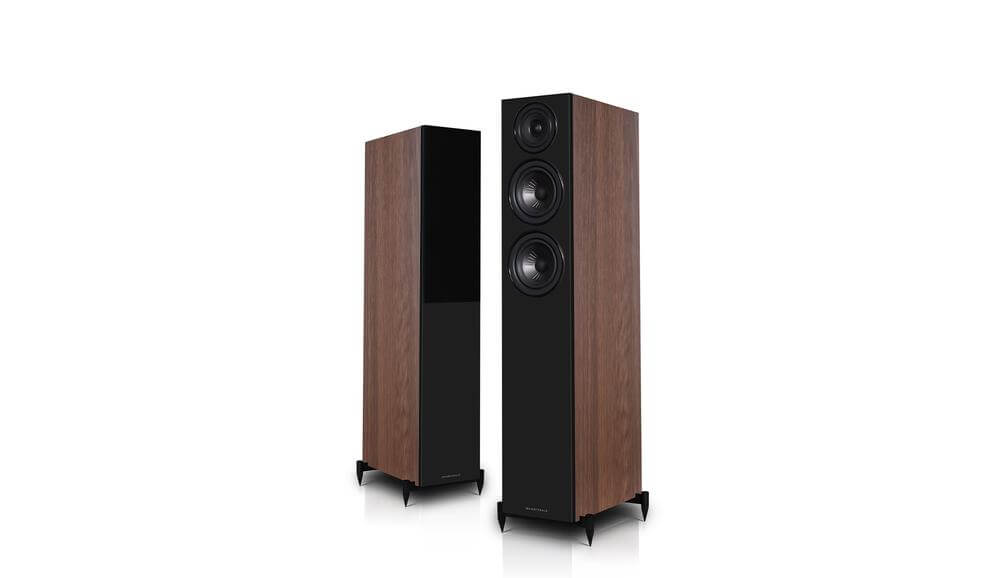

Wharfedale DIAMOND 12.3i Floorstanding Speakers

What sets the Wharfedale DIAMOND 12.3i apart from the original DIAMOND 12 series?

The Wharfedale Diamond 12.3i is a 2.5-way floorstanding speaker built on the foundation of the Diamond 12 series, a range that established itself as a benchmark for performance and value in affordable hi-fi after its 2020 launch. Wharfedale's in-house engineering team didn't start from scratch for the 12i update; they revisited the internals, concentrating on bass port tuning and airflow control. The port design and internal damping were refined using laser interferometry, anechoic and in-room measurement, and computational fluid dynamics to assess pressure and airflow through the port structure. The result is a bass response with tighter control and a more defined transition between low and mid frequencies, one that stays consistent across different room placements. That makes the Diamond 12.3i a fitting choice for buyers who already value the original series' neutral balance but want a cabinet that carries updated finishes and a more settled low end.

Which amplifiers and systems does the DIAMOND 12.3i suit?

The Diamond 12.3i is specified at 89dB sensitivity (2.83V at 1m), with a nominal impedance rated 8Ω compatible and a minimum impedance of 5.0Ω, figures that determine how easily an amplifier can drive it. Wharfedale recommends amplifier power between 30W and 150W, which puts the speaker within reach of mid-range stereo amplifiers and AV receivers rather than demanding specialist high-current partnering equipment. A peak SPL of 102dB gives the driver assembly headroom for dynamic passages, so the amplifier doesn't need to work at its absolute limit to deliver them. Buyers building a system around modestly powered amplification, or upgrading from bookshelf speakers to something with greater bass extension, can take these figures as confirmation that the Diamond 12.3i will integrate without a change of amplifier.

How does the 2.5-way bass reflex layout affect placement and setup?

The Diamond 12.3i is a 2.5-way design that pairs a 5-inch (130mm) bass driver with a second 5-inch (130mm) driver handling midrange duties, both venting through a bass reflex enclosure with a crossover frequency of 2.2kHz. The bass reflex port relies on the airflow refinements covered above, so rear clearance behind the cabinet still plays a part in how the low end settles into a room. Frequency response is specified at 45Hz to 20kHz (+/-3dB), with bass extension reaching 40Hz at -6dB, giving buyers a working reference for how much low-frequency output to expect before adding a subwoofer. A cabinet volume of 26.6 litres supports this port-loaded design, and the resulting dimensions mean the speaker needs standard floorstanding clearance from walls rather than close boundary placement.

What is Klarity cone technology and why does it matter for sound accuracy?

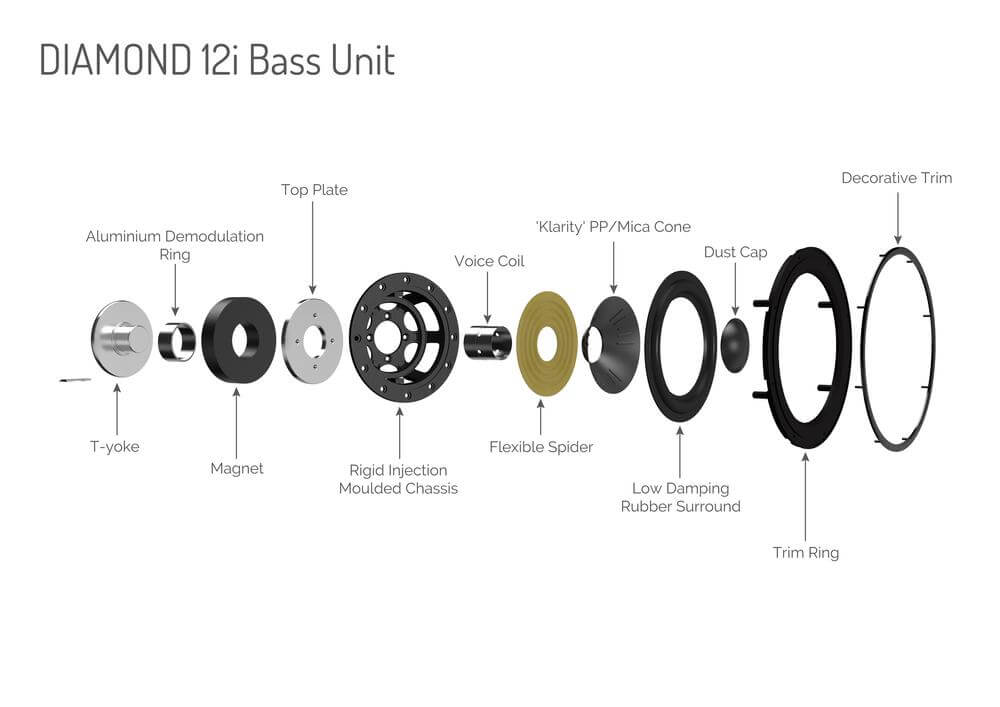

The Diamond 12.3i is built around Klarity mid/bass cones, a blend of polypropylene and mica carried over unchanged from the outgoing Diamond 12 series because of its stiffness-to-weight balance. A stiffer cone resists flexing at higher outputs, which keeps distortion low and preserves a more linear frequency response as the driver moves through its full excursion range. A low-damping surround around each cone increases efficiency and extends dynamic range, while ribbed shaping and profile simulation during development smoothed the frequency response without adding distortion. For a buyer comparing driver materials across competing floorstanding speakers, this construction explains why Wharfedale treats the mid/bass assembly as a core differentiator rather than a component it altered for the 12i update.

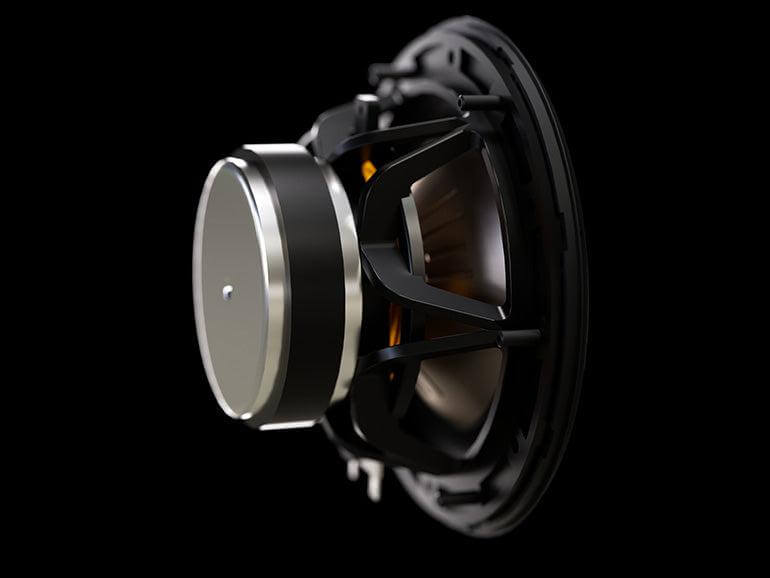

How does the magnet assembly improve driver control?

The Diamond 12.3i is fitted with a magnet system on each mid/bass driver that includes an aluminium compensation ring, which reduces the inductance changes that occur as the voice coil moves within the magnetic gap. Those inductance shifts cause intermodulation distortion if left uncompensated, so the ring keeps the motor's electrical behaviour more consistent across the coil's travel and delivers cleaner output at higher volumes. The voice coil itself is wound on an epoxy/glass fibre bobbin rather than a standard former, which Wharfedale specifies as offering greater power handling, thermal stability, and structural strength for the price point. This directly supports the peak power handling and recommended amplifier range covered earlier, since a more stable motor assembly is what lets the driver sustain higher outputs without breaking up.

What does the crossover network contribute to system performance?

The Diamond 12.3i is built with a Linkwitz-Riley crossover that uses air-core inductors, a component choice more commonly associated with higher-priced speaker ranges. The crossover is tuned to minimise phase shift between the bass, midrange, and 25mm textile dome tweeter, so the handover between drivers stays smooth rather than producing an audible dip or peak at the crossover point. Wharfedale modified the mid/bass driver's magnet structure to address the resistance these inductors introduce, keeping bass response fast and controlled despite the change. Buyers weighing build quality against price will find this crossover specification a more concrete differentiator than general performance claims, since air-core topology is a defined engineering choice rather than a marketing description.

Why does the tweeter use a textile dome, and what does it change at the top end?

The Diamond 12.3i's tweeter is a 25mm woven polyester dome finished with a high-loss damping coating, which extends the treble response while keeping it smooth rather than peaky. Its front plate uses a flat profile with minimal waveguide shaping, a layout intended to widen dispersion so off-axis listening positions receive a more even treble output than a heavily waveguided design would provide. That matters for buyers setting up a room where seating isn't centred precisely on-axis with the speakers, since dispersion characteristics affect how consistent the top end sounds across a wider listening area.

How does the cabinet construction reduce resonance and colouration?

The Diamond 12.3i's enclosure is built from multi-layered sandwich construction, with the adhesive bonding between layers specifically tested for its damping properties rather than chosen only for structural bonding. Inside, spot bracing connects opposite cabinet walls using computer-modelled brace placement, a method designed to reduce panel vibration without transferring that vibration from one wall to another. Reducing cabinet resonance keeps the enclosure from adding its own colouration to the sound the drivers produce, which matters to buyers comparing cabinet build quality between the Diamond 12.3i and lower-cost floorstanding alternatives that use simpler bracing.

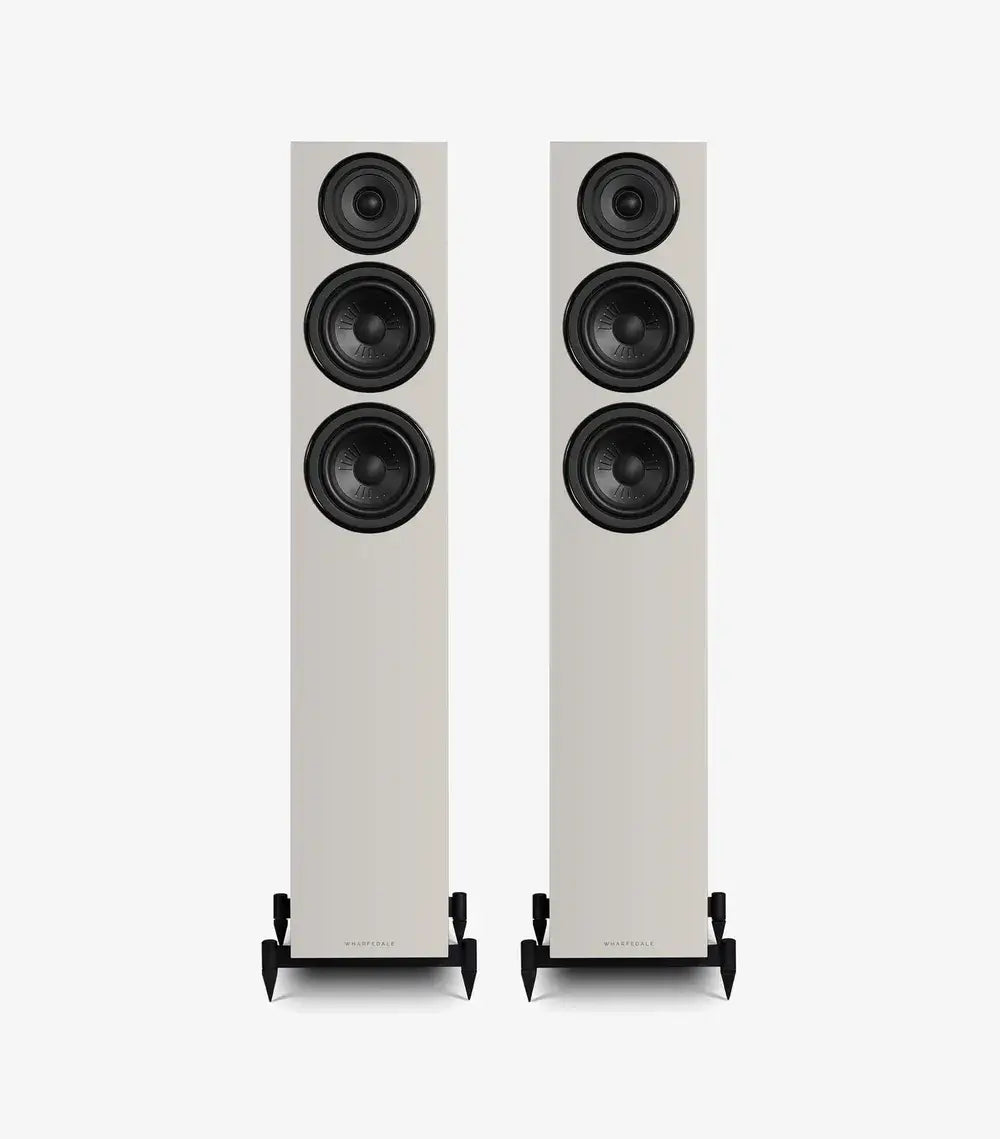

Where does the Wharfedale DIAMOND 12.3i sit within the DIAMOND 12i range?

The Wharfedale Diamond 12.3i is a floorstanding model within the Diamond 12i series, a range that includes new finish options across the line: all-black, classic walnut with a semi-matte black baffle, and stone grey. This particular model is finished in all-black. Buyers deciding between finishes get a choice between a sleek, contemporary semi-matte black look and warmer or lighter alternatives elsewhere in the series, without any difference in the driver, crossover, or cabinet engineering described above.
