Wharfedale EVO 5.4 Floorstanding Speakers

Wharfedale EVO 5.4 Floorstanding Speakers

The Wharfedale EVO 5.4 is a three-way floorstanding speaker built for buyers who want a step up in resolution and bass extension without moving into high-end pricing. The EVO 5.4 sits within Wharfedale's EVO 5 Series, the successor to the multi-award-winning EVO 4, and it carries driver technology and research first developed for Wharfedale's flagship Elysian series. This EVO 5 Series floorstanding speaker suits both the audiophile who listens critically to musical detail and the casual listener who simply wants clear, full-bodied sound from a compact-footprint tower speaker.

How does the EVO 5.4 achieve its treble accuracy?

The EVO 5.4 is fitted with an EVO AMT (Air Motion Transformer) tweeter, a 35 x 70mm driver that replaces the dome design used in most speakers at this level. Rather than pushing air forward with a dome or cone, the AMT uses a pleated diaphragm made from an ultra-thin polymer film, positioned between magnets on either side. When an audio signal reaches the diaphragm's conductive traces, the pleats contract and expand, squeezing air out from between the folds in a controlled motion. Because this pleated design moves roughly four times more air than a dome tweeter of equivalent surface area, the diaphragm doesn't need to move as far to produce the same output. That reduced excursion is what lowers distortion, and the diaphragm's low mass is what allows a faster transient response, a wider frequency range, and better dispersion across the room.

What internal refinements reduce distortion and coloration in the EVO 5.4's drivers?

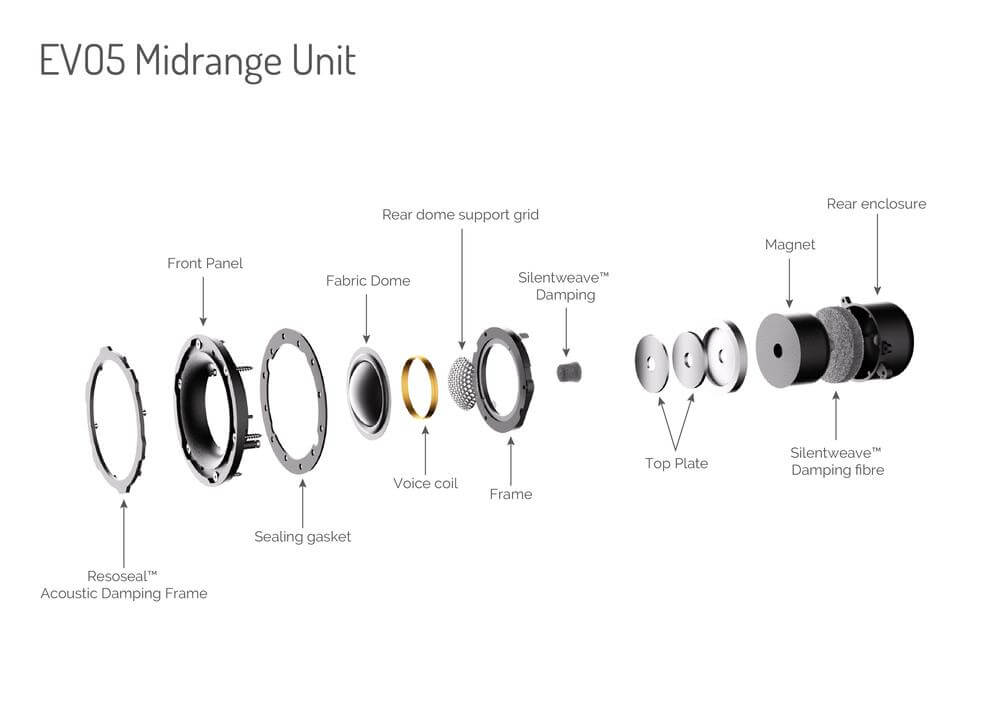

The EVO 5.4 is built with three separate acoustic treatments that work alongside the AMT tweeter rather than duplicating its function. Behind the AMT diaphragm sits Silentweave™, a cotton and felt fibre material developed specifically for the EVO 5 Series to absorb sound waves in the cavity and stop them reflecting back through the diaphragm as unwanted coloration. Every driver in the EVO 5.4, including the AMT, uses ResoFrame™, a cog-shaped elastomer damping frame visible on the driver's front panel, and the AMT adds a further elastomer gasket between the diaphragm and front plate to control mechanical resonance in the lower treble band. On the midrange driver, a technique called Resoseal™ applies a thin elastomer mass ring where the cone meets its surround, refining the midrange response so vocals come through with more natural weight. These treatments explain why the EVO 5.4 sounds cleaner through the midrange and treble than its driver specification alone would suggest.

What amplifier and system requirements suit the Wharfedale EVO 5.4?

The EVO 5.4 is rated at a nominal impedance of 4Ω, described by Wharfedale as 8Ω compatible, with a minimum impedance of 4.3Ω, so it needs an amplifier that's comfortable delivering current into a 4Ω load rather than one designed strictly for 8Ω speakers. Sensitivity is rated at 90dB (2.83V @ 1m), a moderate figure that, combined with the 4Ω load, means buyers should check their amplifier's stated current delivery rather than assume a low-power design will suit it. Wharfedale specifies a recommended amplifier power range of 30-200W, with a peak SPL of 108dB. Crossover points sit at 1.1kHz and 4kHz across the three-way, bass-reflex design, splitting duties between the two bass drivers, the soft-dome midrange, and the AMT tweeter.

How does the SLPP port design control the EVO 5.4's bass output?

The EVO 5.4 is fitted with Wharfedale's Slot Loaded Profiled Port (SLPP), a proprietary bass-reflex design that channels the rear output of the two 6.5" bass drivers out through a shaped slot at the base of the cabinet rather than a conventional rear-firing port. This slot equalises pressure with the room and reduces the turbulence that causes chuffing or muddy bass in simpler reflex designs. The EVO 5.4 introduces a three-directional SLPP channel, an evolution from the two-directional port used in the EVO 4, and this further optimises airflow distribution and lowers turbulence and distortion at higher output levels. The result is defined, controlled bass that integrates with the mid and high frequencies rather than the boomy or smeared bass associated with simpler reflex ports.

How should the EVO 5.4 be installed?

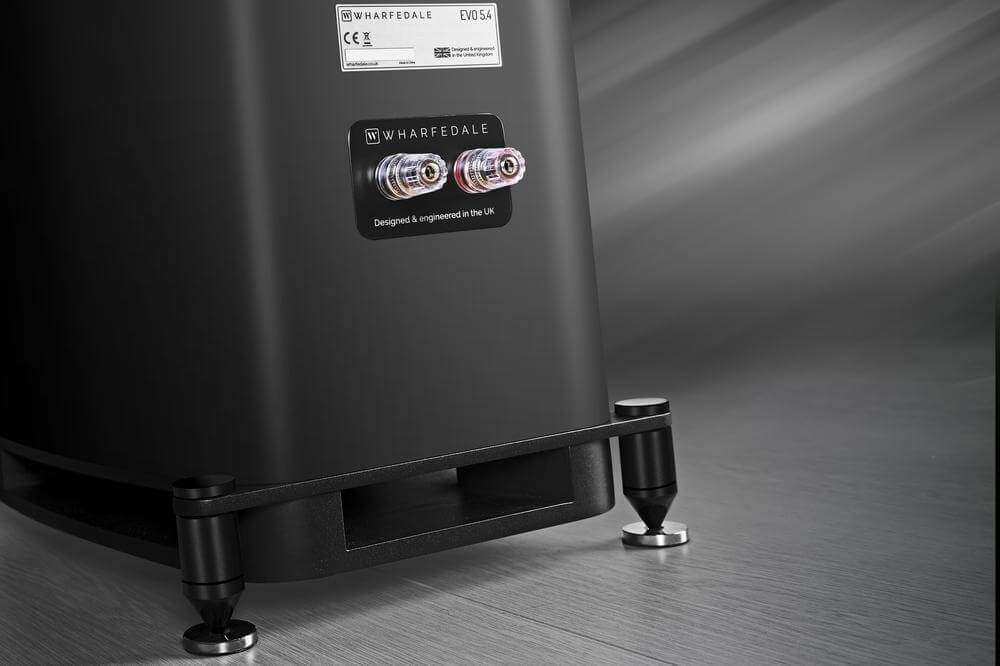

The EVO 5.4 stands 1028mm tall on its plinth and spikes, with a footprint of 302mm wide by 350mm deep (390mm including the grille and terminals). Standard accessories include a spike seat, used with the integrated spikes to decouple the cabinet from the floor and improve bass definition by minimising energy transfer into the flooring. At a net weight of 31.2kg per speaker, the EVO 5.4 is stable once positioned and levelled on its spikes. The EVO 5.4 isn't AV-shielded, a specification worth checking if it's being placed as part of a wider system where shielding matters.

Who is the EVO 5.4 designed for, and what ownership benefits does it offer?

The EVO 5.4 is aimed at buyers who want EVO 4-level value with a further step up in refinement, whether that's an audiophile building a two-channel system around nuanced musical detail or a listener who wants a floorstanding speaker with enough scale and clarity for everyday use. The EVO 5.4 is offered in Black, Grey, Walnut and White finishes, so buyers can match it to different room styles without any change to the underlying driver or cabinet engineering.

How is the EVO 5.4 cabinet engineered for resonance control?

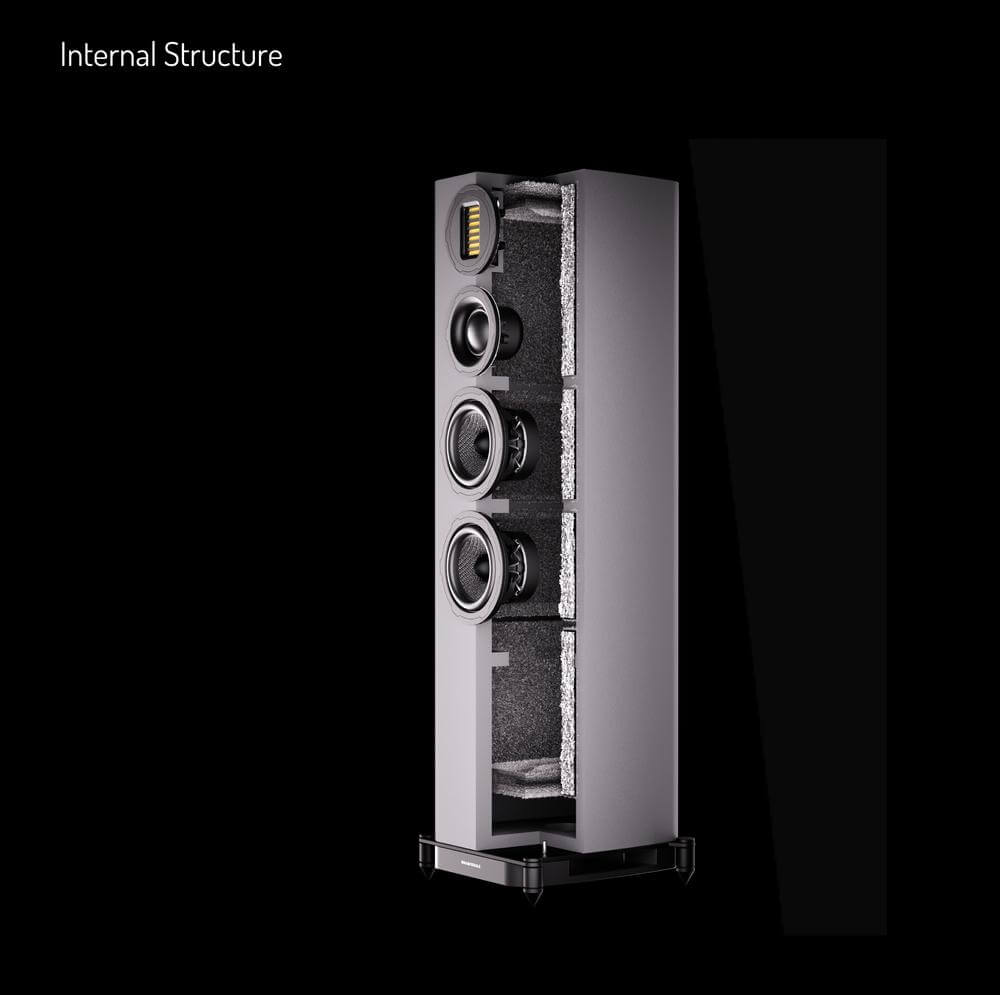

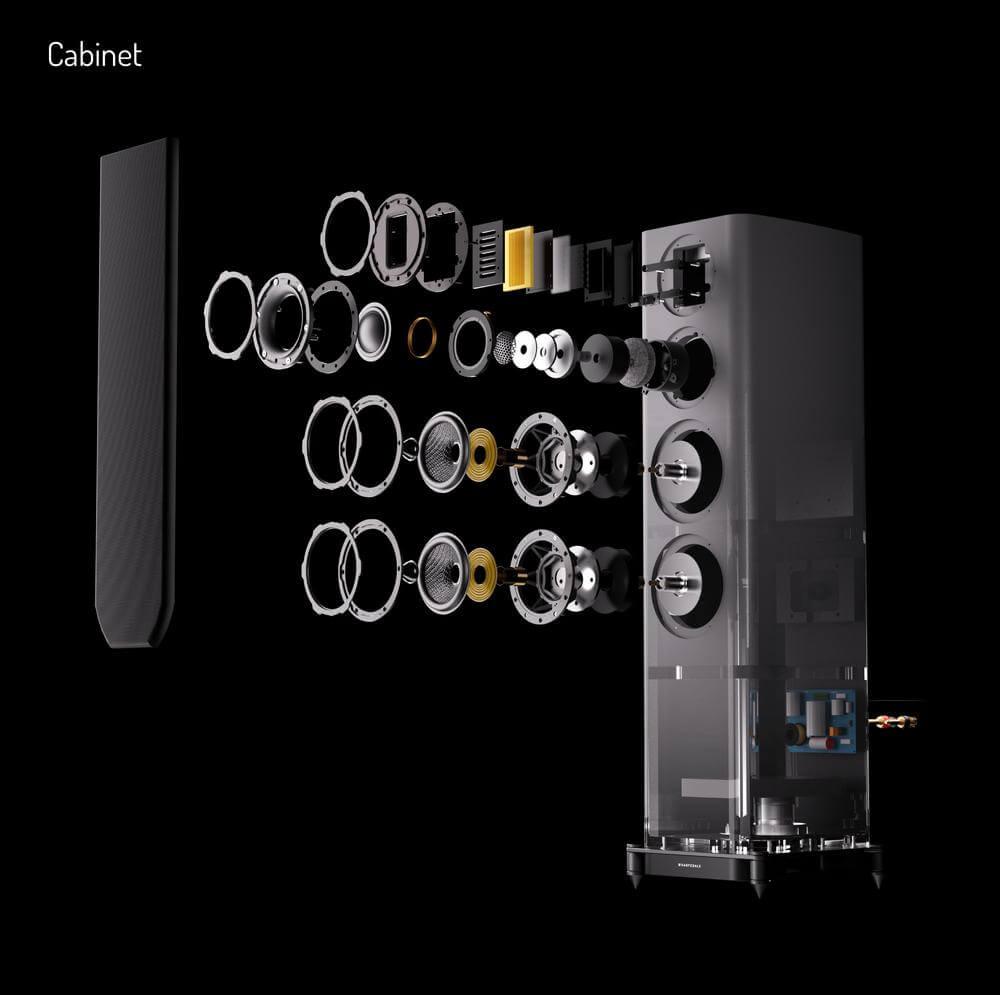

The EVO 5.4 is built around a bass-reflex enclosure housing two 6.5" (165mm) black woven Kevlar cone bass drivers and a 2" (50mm) soft-dome midrange, all within a cabinet whose internal volume has been increased over the previous generation. That larger 59.5-litre cabinet volume is what allows the EVO 5.4 to reach a bass extension of 36Hz (-6dB) and a frequency response of 42Hz–24kHz (+/-3dB), alongside improved overall dispersion. Cabinet resonance is addressed separately from driver-level damping through a hybrid plinth that combines metal and wood elements at the base, adding structural rigidity and reducing vibration that would otherwise colour the sound with external resonance artefacts. This means the EVO 5.4 controls unwanted cabinet noise at the structural level, while ResoFrame™ and Resoseal™ handle resonance at the driver level, so resonance is addressed at two separate points rather than one.

Where does the EVO 5.4 sit against other Wharfedale speakers?

The EVO 5.4 sits above the EVO 4 in Wharfedale's range, aimed at buyers who already know the EVO 4's reputation as a showroom staple and multi-award winner and want the same value positioning with the AMT tweeter, three-directional SLPP port, and the additional Silentweave™, ResoFrame™, and Resoseal™ treatments layered on top. Buyers who already own EVO 4 speakers and want a clear upgrade path within the same family, rather than a move to a different series, are a direct fit for the EVO 5.4. The AMT tweeter itself traces its development back to Wharfedale's flagship Elysian series, so buyers wanting a taste of that flagship-level treble technology at a lower price point, without the full Elysian specification or cost, are well served by the EVO 5.4 rather than by stepping up to Elysian directly.
