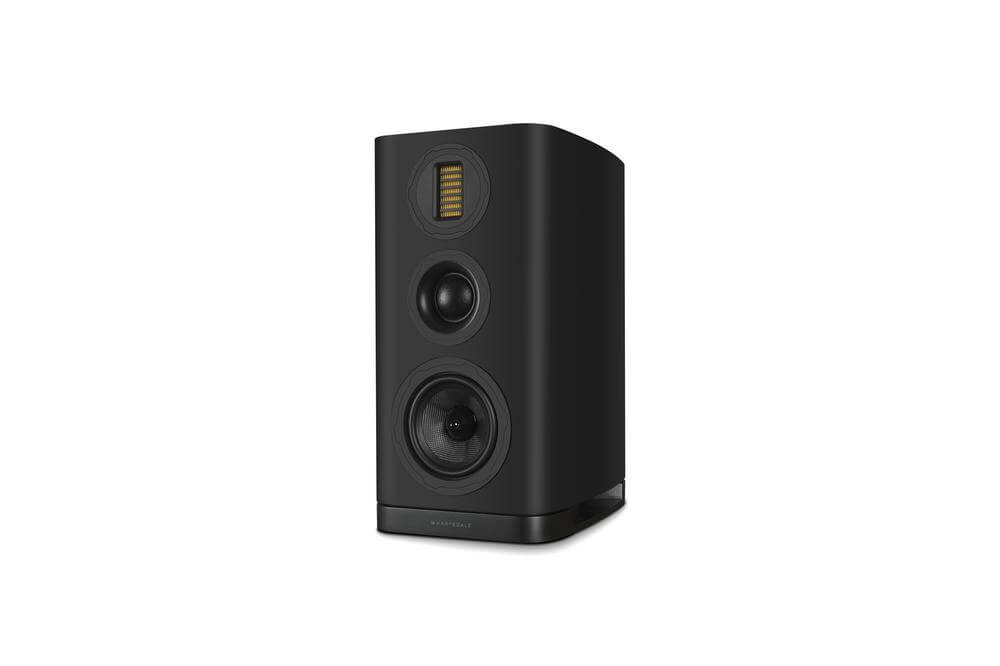

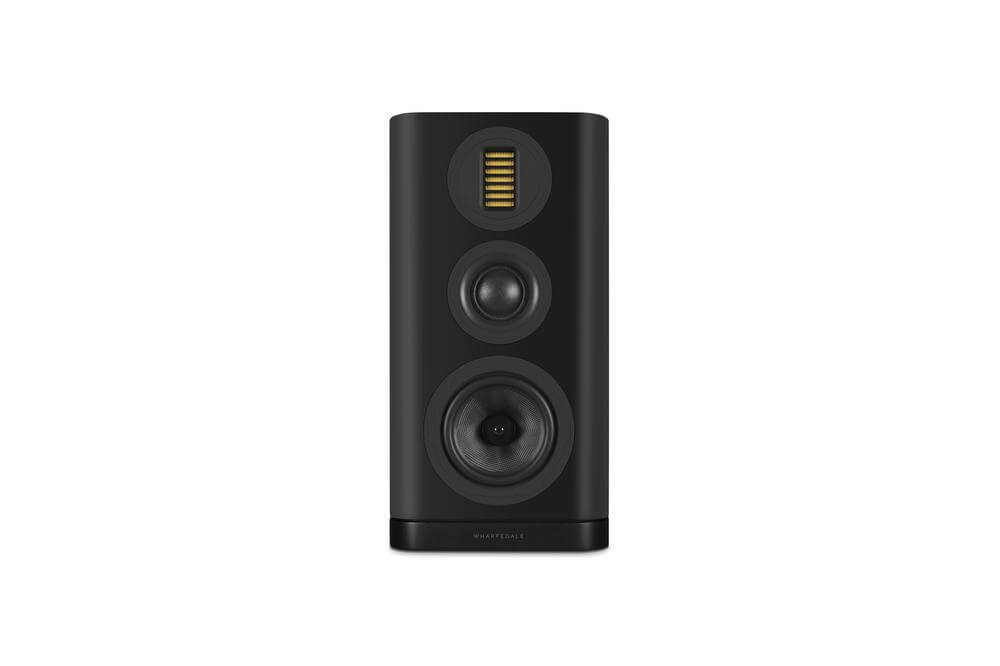

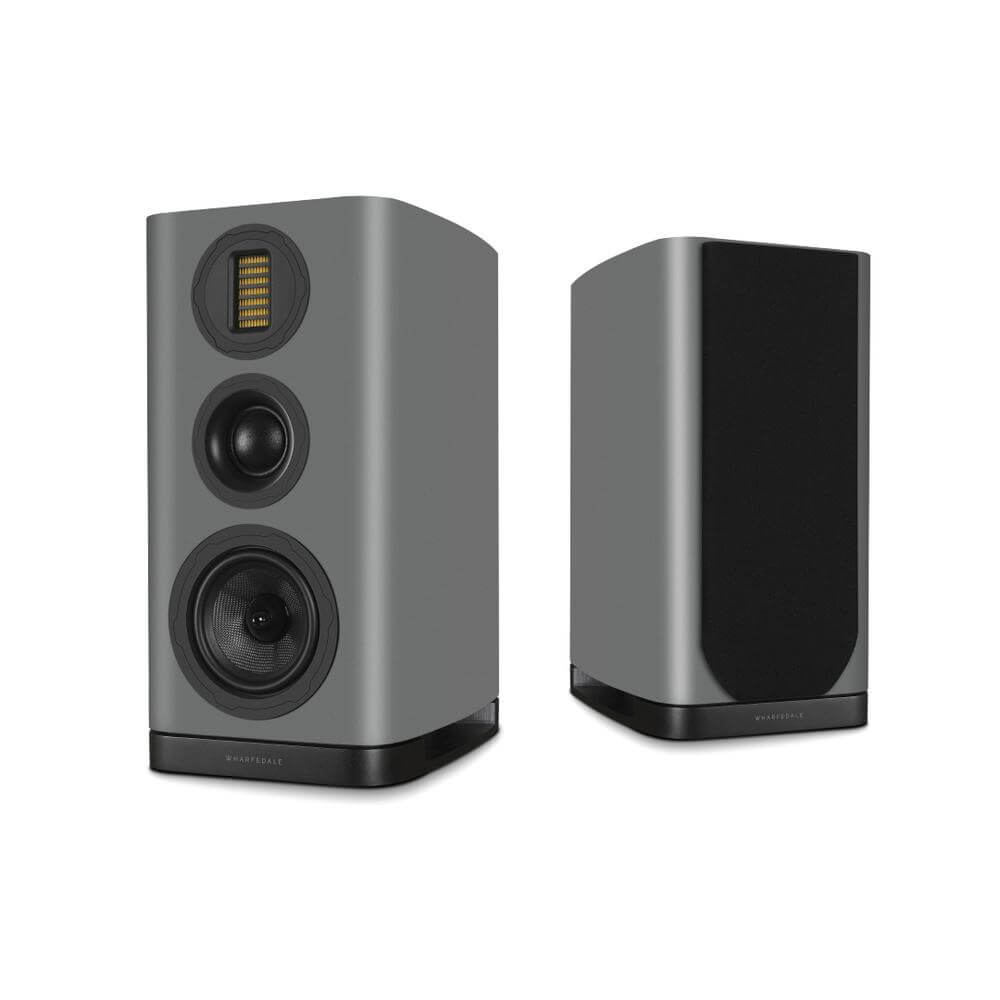

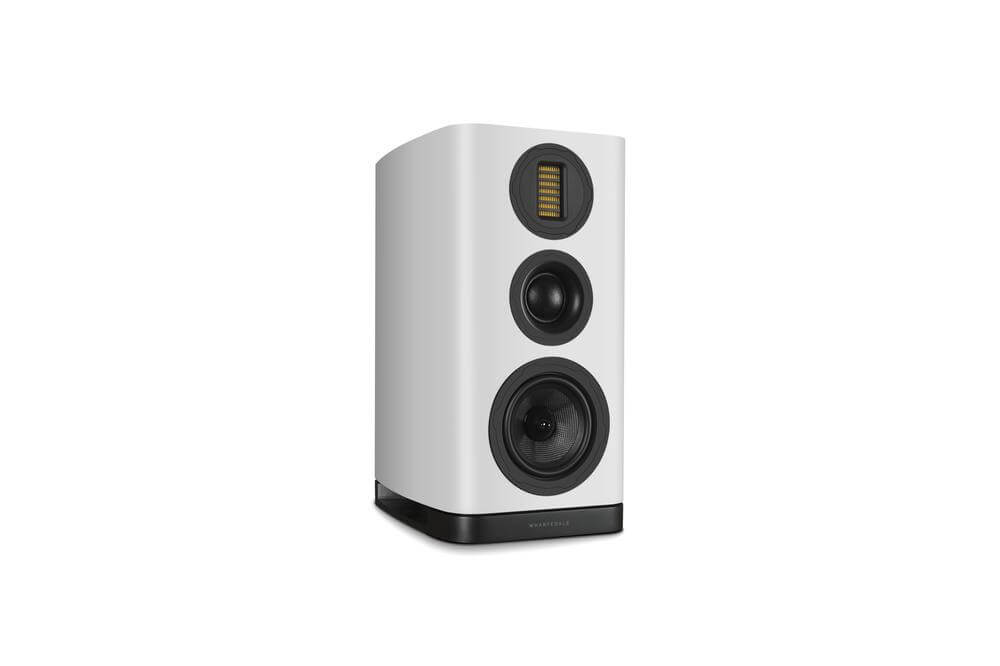

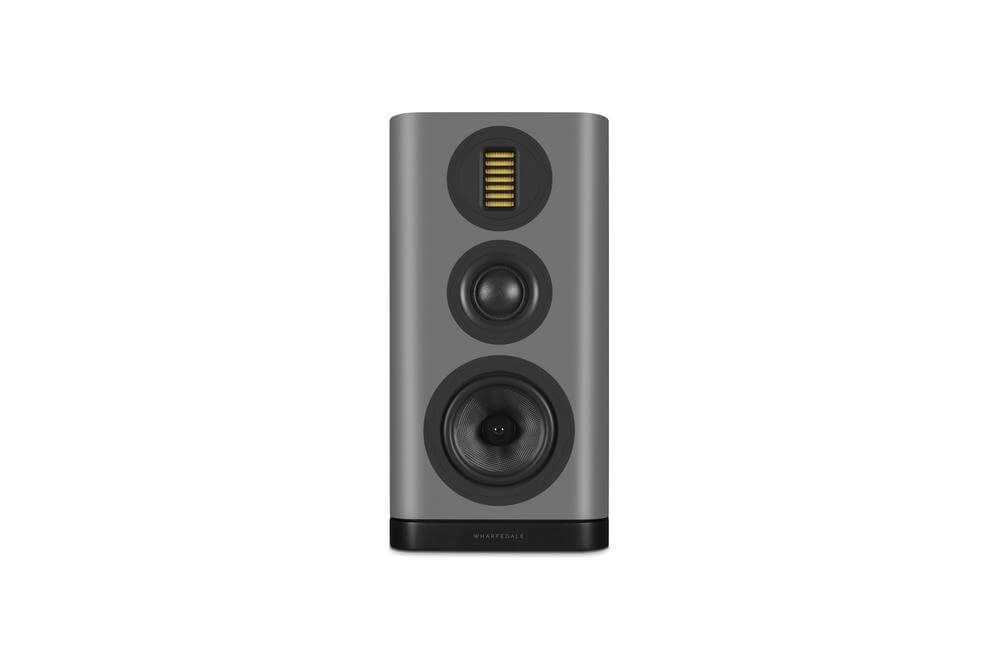

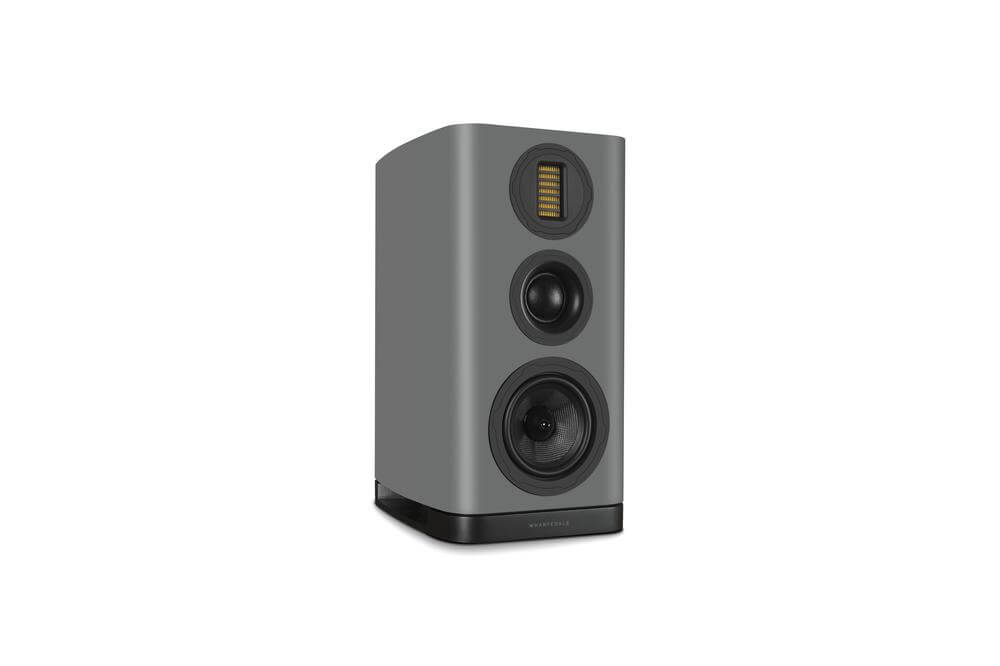

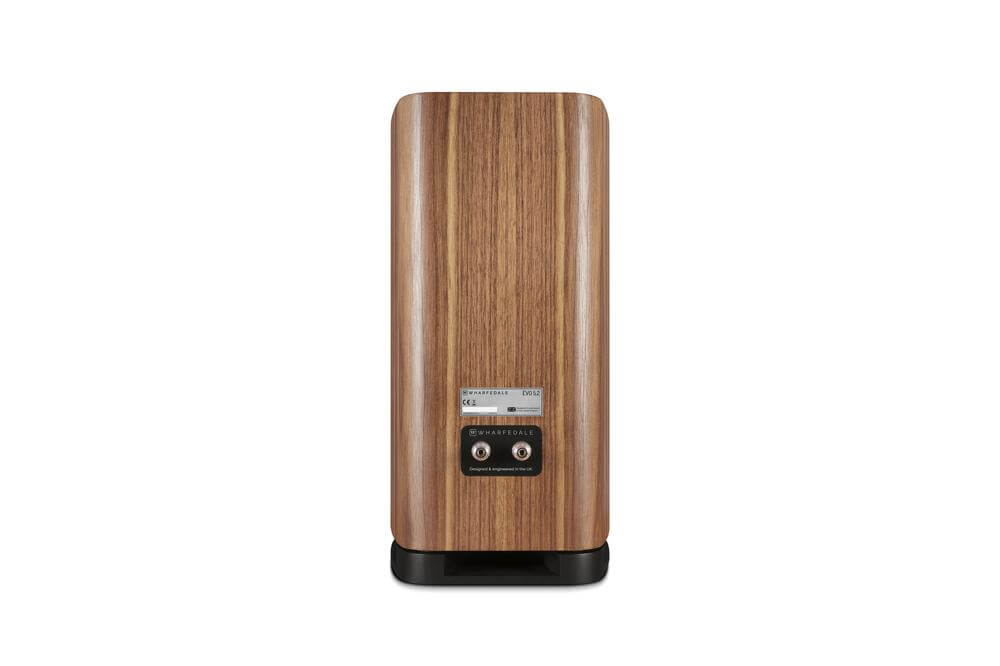

Wharfedale EVO5.2 Bookshelf Speaker

Why the Wharfedale EVO 5.2 suits your listening space

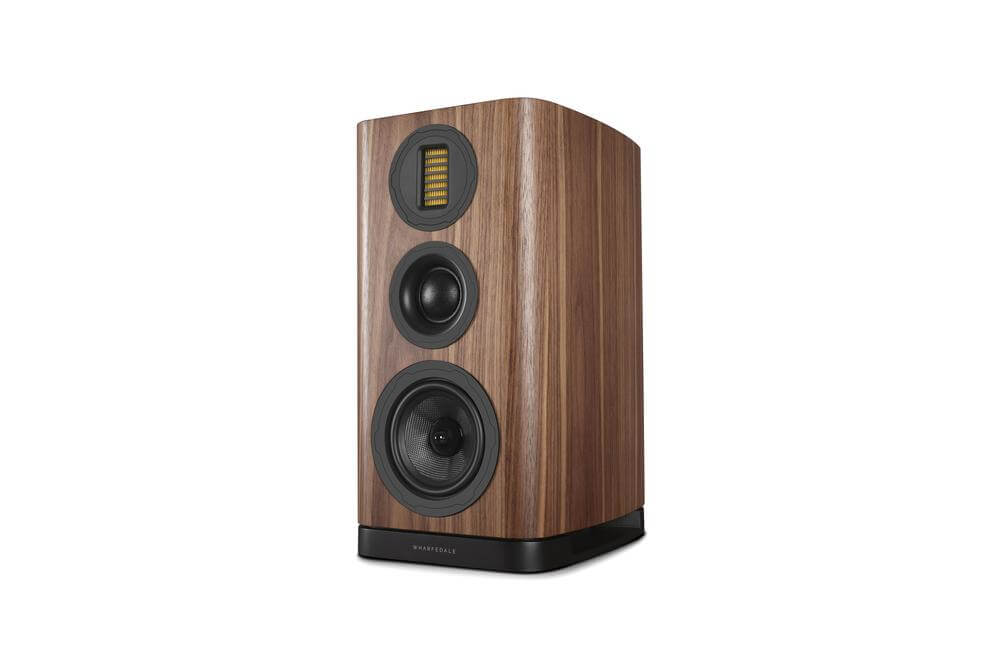

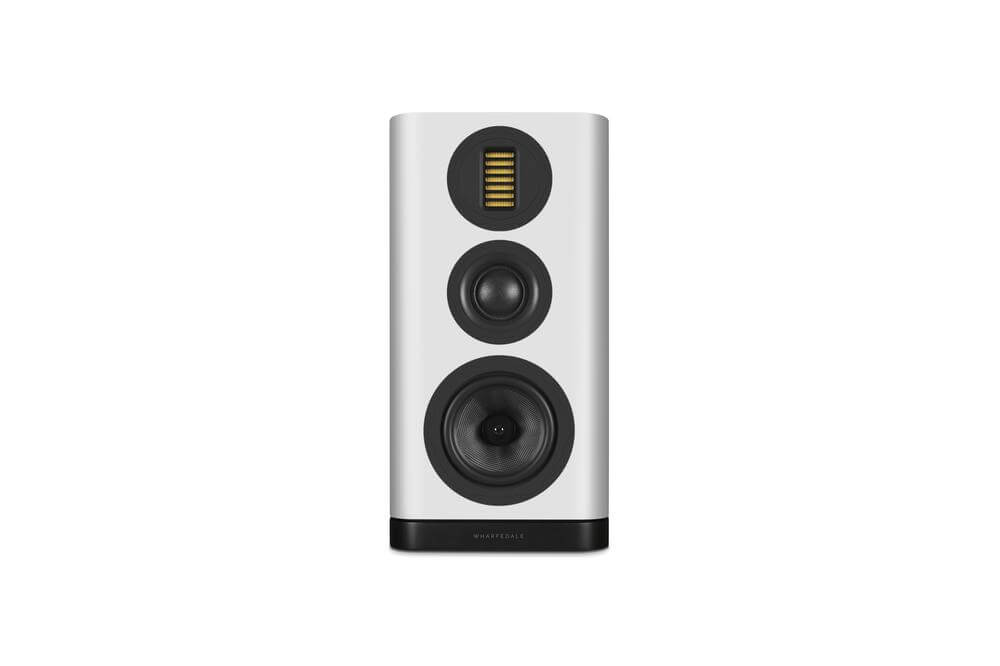

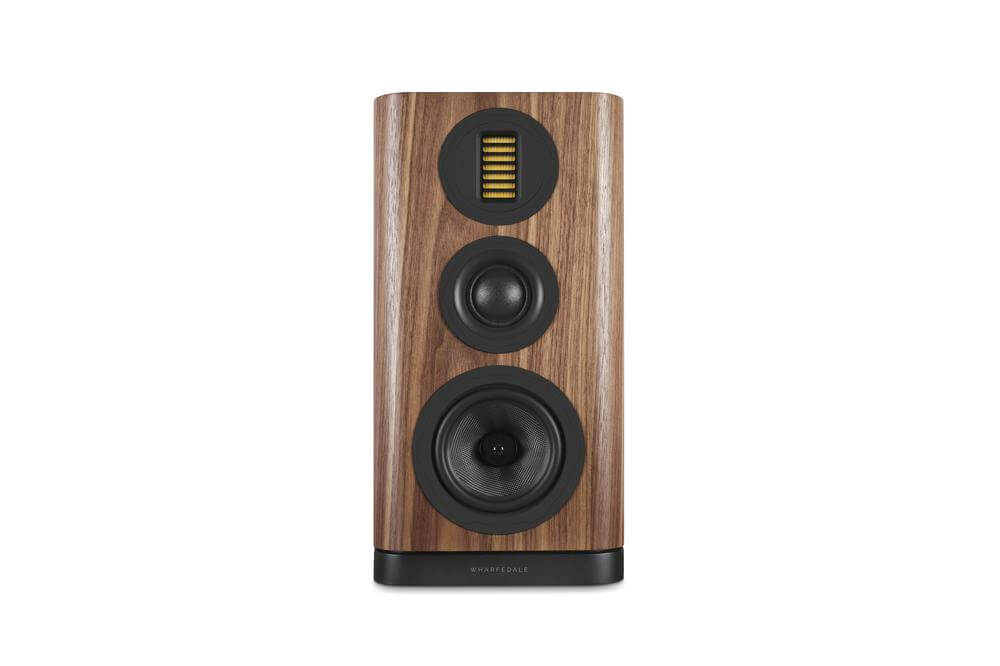

The Wharfedale EVO5.2 Bookshelf Speaker is a three-way, bass reflex bookshelf speaker from Wharfedale's EVO 5 Series. It's the successor to the multi-award-winning EVO4 range. It's aimed at listeners building a stand-mounted or shelf-based two-channel system. Buyers choose it for the AMT tweeter technology and the Silentweave, ResoFrame, and Resoseal driver refinements, developed from research that first appeared on Wharfedale's flagship Elysian project.

What sets the Wharfedale EVO5.2 Bookshelf Speaker apart from other three-way designs?

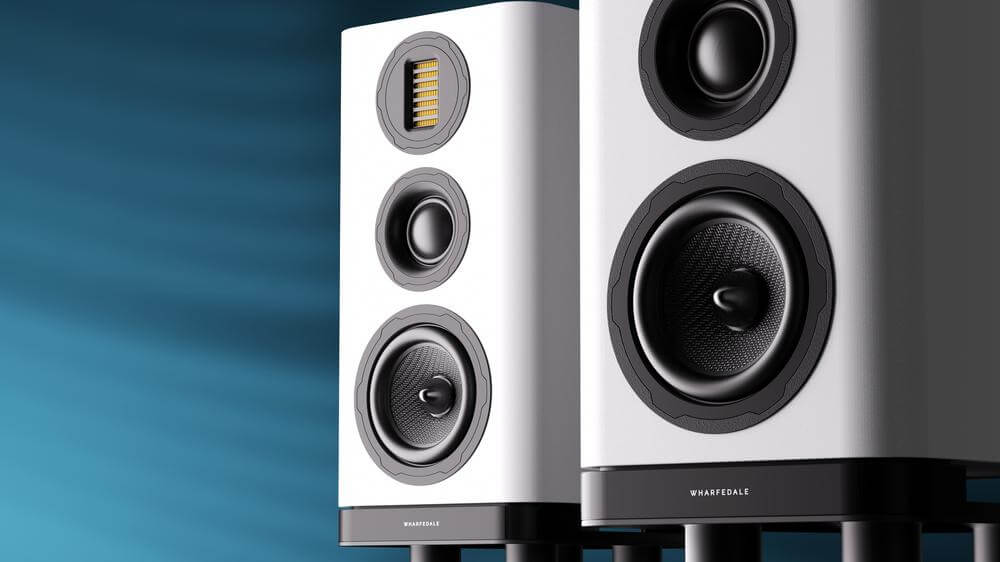

The Wharfedale EVO5.2 Bookshelf Speaker is built around an Air Motion Transformer. This high-frequency driver works differently to a conventional dome tweeter. Instead of pushing air forward with a curved diaphragm, the 35 x 70mm AMT uses a pleated diaphragm made from an ultra-thin polymer film. Magnets sit on either side of the pleats. When an audio signal reaches the conductive traces on the diaphragm, the pleats contract and expand in a folding motion. This squeezes air out from between the pleats rather than pushing it forward. The folding action moves around four times more air than a dome tweeter of equal surface area. That's what lets the AMT cover a wide, extended treble range while moving less than a conventional dome does for the same output.

How does the AMT tweeter shape the EVO 5.2's high-frequency detail?

The AMT fitted to the EVO 5.2 is the driver behind the speaker's published frequency response of 44Hz to 24kHz (+/-3dB). The pleated diaphragm moves a shorter distance than a dome or cone to shift the same volume of air. This lets it respond to transient signals more quickly. Its lighter moving mass keeps distortion low as output increases towards the 105dB peak SPL rating. The larger effective radiating area created by the pleats also gives the AMT wider dispersion than a small dome tweeter. High-frequency detail spreads more evenly off-axis, rather than concentrating in a narrow beam directly in front of the cabinet.

What technology reduces resonance and colouration inside the drivers?

The Wharfedale EVO 5.2 is fitted with two damping technologies. Both work behind the drive units to control unwanted resonance. Silentweave is a material combining cotton and felt fibre. It sits in the cavity behind the AMT diaphragm and absorbs sound waves before they can reflect back through the driver and colour its output. ResoFrame is an elastomer damping frame, visible as a cog-shaped ring on the front panel of each drive unit. It reduces resonance carried through the chassis into the cabinet. On the AMT, an additional elastomer gasket sits between the diaphragm and the front plate. This damps mechanical resonance specifically in the lower treble band.

Why does the midrange deliver a more natural vocal reproduction?

The Wharfedale EVO 5.2's midrange driver is a 2-inch (50mm) soft dome. It uses a technique called Resoseal, where a thin elastomer mass ring is bonded to the rear of the cone, at the point where it meets the surround. This mass ring changes how the cone edge behaves as it flexes. It controls breakup modes that would otherwise blur the crossover handover points at 800Hz and 4.3kHz. Speech and singing sit largely within this midrange band, so controlling breakup at the surround has a direct bearing on how the driver reproduces vocals through the crossover region.

What amplification and system does the Wharfedale EVO5.2 Bookshelf Speaker require?

The Wharfedale EVO5.2 Bookshelf Speaker is compatible with amplifiers rated between 25W and 120W. This range covers both compact stereo amplifiers and larger integrated amplifiers. Its nominal impedance is 4 ohms, stated as 8-ohm compatible. The minimum impedance falls to 3.2 ohms, so an amplifier that can sustain lower-impedance loads without strain will get the most from the speaker. Sensitivity is rated at 88dB (2.83V @ 1m). Together with the 25-120W recommended range, this figure indicates the amplifier power needed to reach the speaker's 105dB peak SPL cleanly.

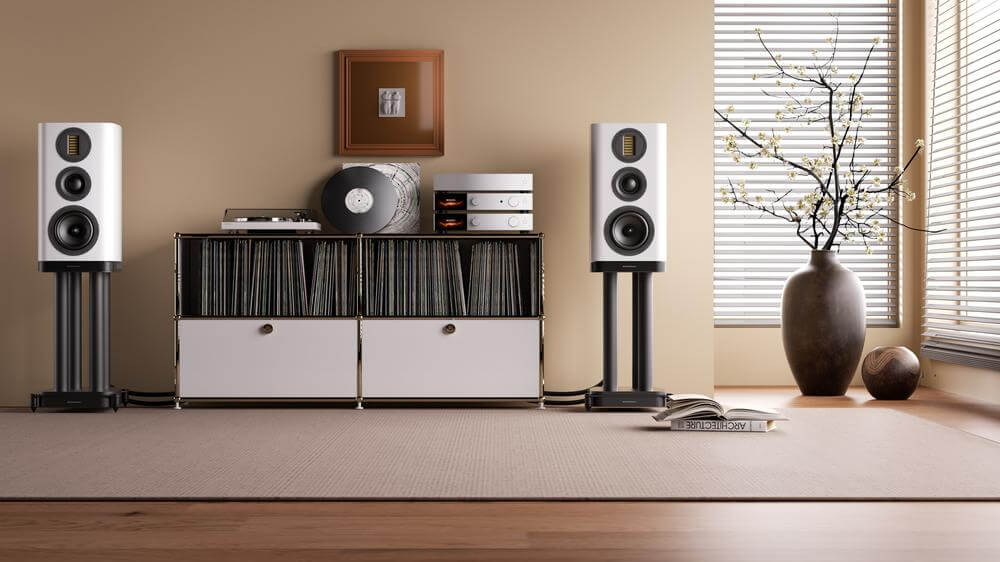

How should the Wharfedale EVO5.2 Bookshelf Speaker be positioned in a room?

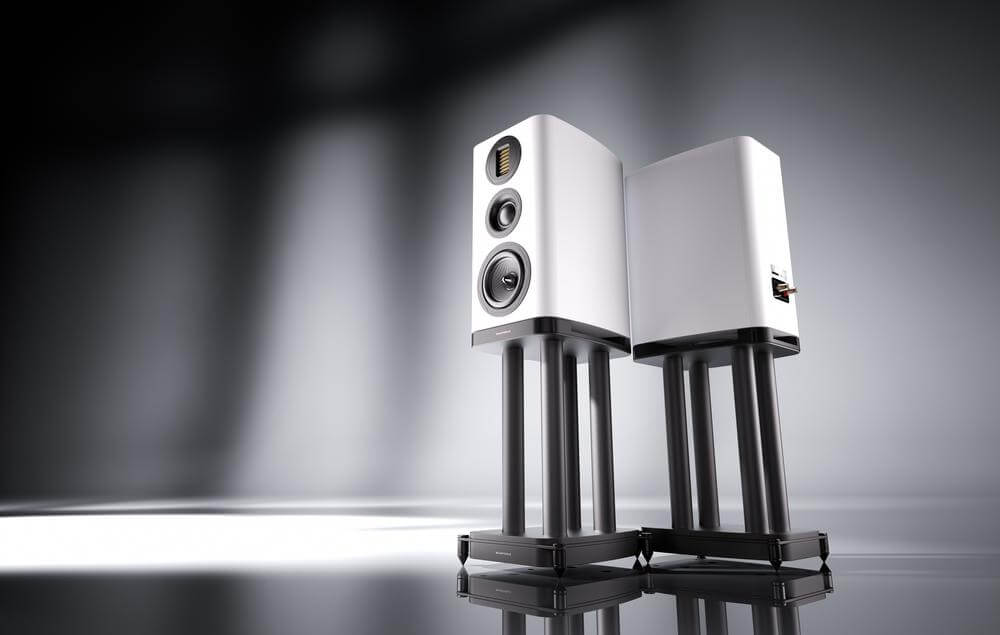

The Wharfedale EVO5.2 Bookshelf Speaker is best positioned with attention to its cabinet and base construction. Each cabinet has an internal volume of 27.2 litres. Wharfedale states this as an increased volume for the EVO 5 series, and it extends bass response down to 38Hz (-6dB) while improving overall sound dispersion. A hybrid plinth, combining metal and wood, forms the cabinet's base. It adds mass that reduces vibration transmitted into whatever surface the speaker rests on. Wharfedale also offers a dedicated stand for the EVO 5.2, built from high-carbon steel. The stand sets the speaker at the height suited to typical listening positions and further reduces vibration and interaction with the floor.

Where does the EVO 5.2 sit against other bookshelf speakers?

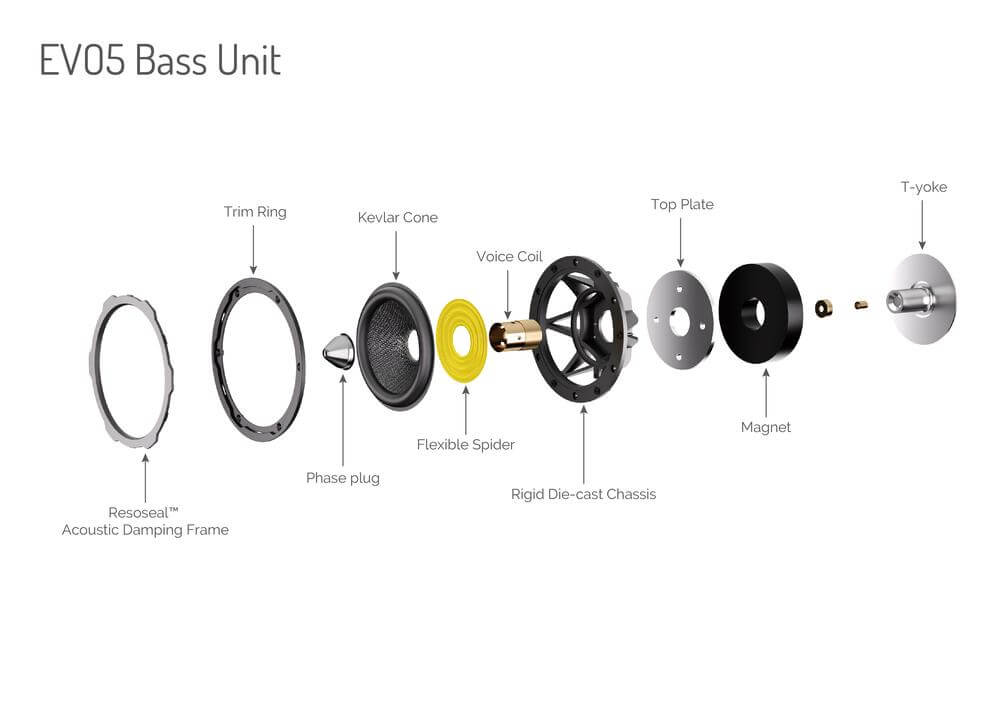

The EVO 5.2 is the direct successor within Wharfedale's EVO 5 Series to the EVO4 range that preceded it. Buyers who already know the EVO4, and want the same bass reflex, three-way bookshelf format, but with the newer AMT tweeter, Silentweave damping, ResoFrame chassis, and Resoseal midrange treatment, should treat the EVO 5.2 as the natural upgrade path within the same series. It suits listeners assembling a stand-mounted two-channel system, rather than a floorstanding or in-wall setup, who want a 6.5-inch Black Woven Kevlar bass driver paired with a soft dome midrange and an AMT treble unit, rather than a conventional two-way, dome-tweeter design.
