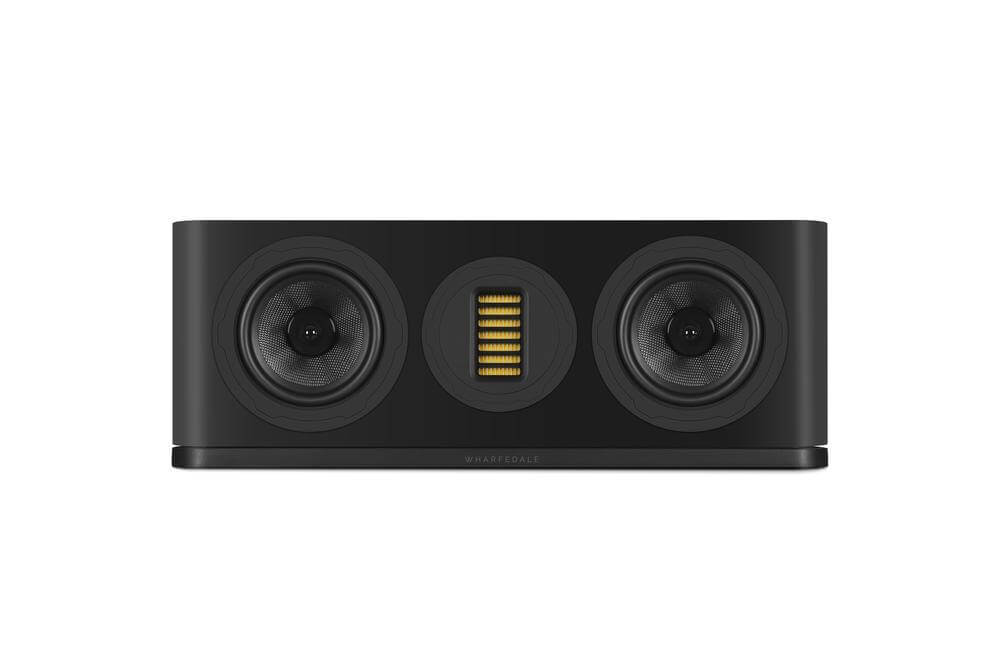

Wharfedale EVO5.C 2-way Centre Speaker (each)

Wharfedale EVO 5.C Centre Speaker

Why choose the Wharfedale EVO 5.C for your centre channel?

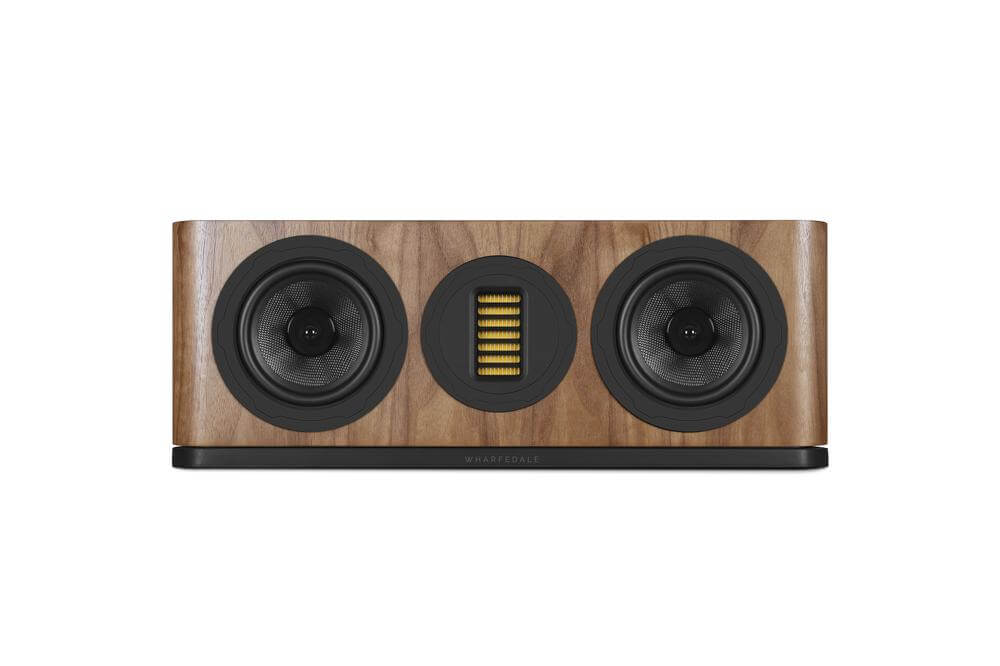

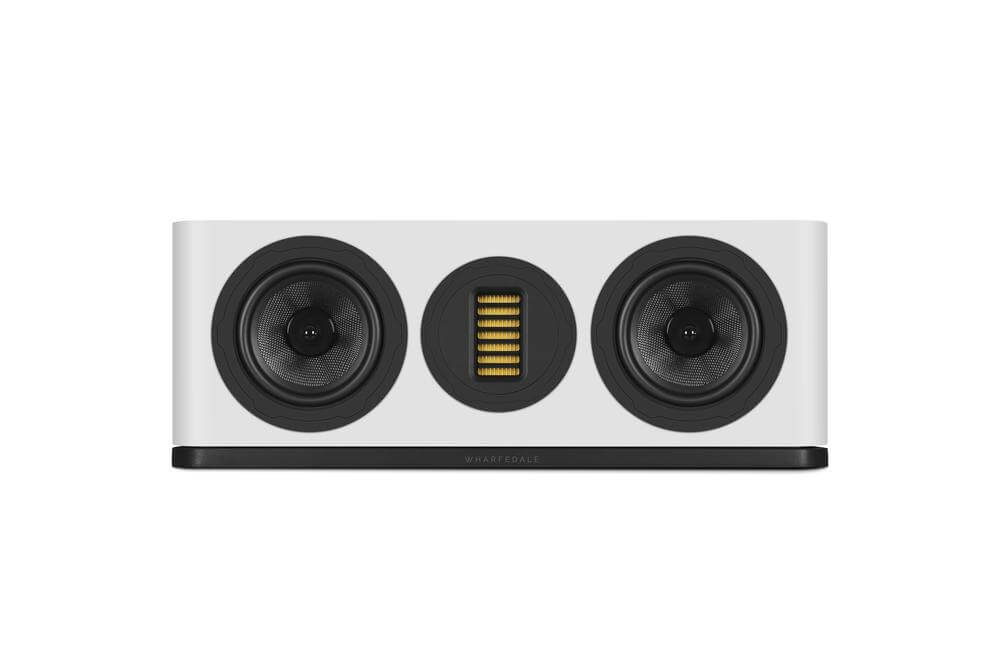

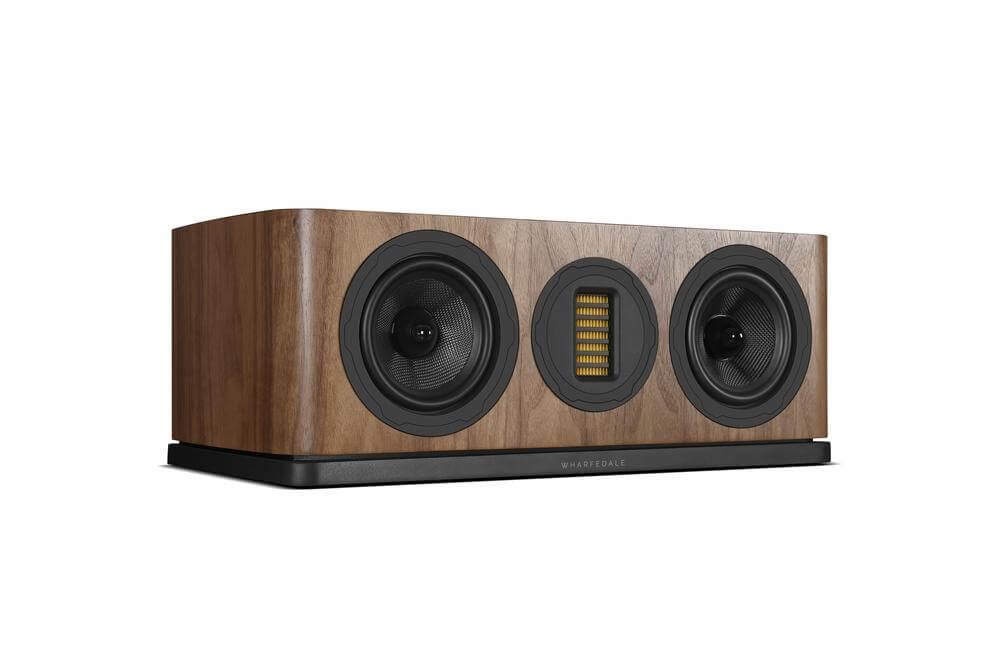

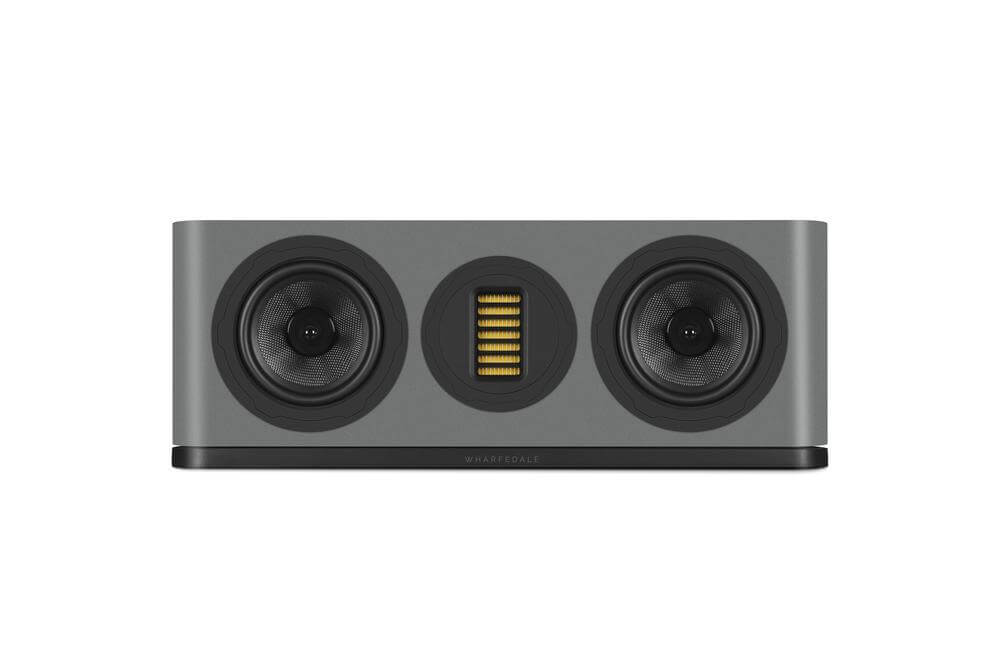

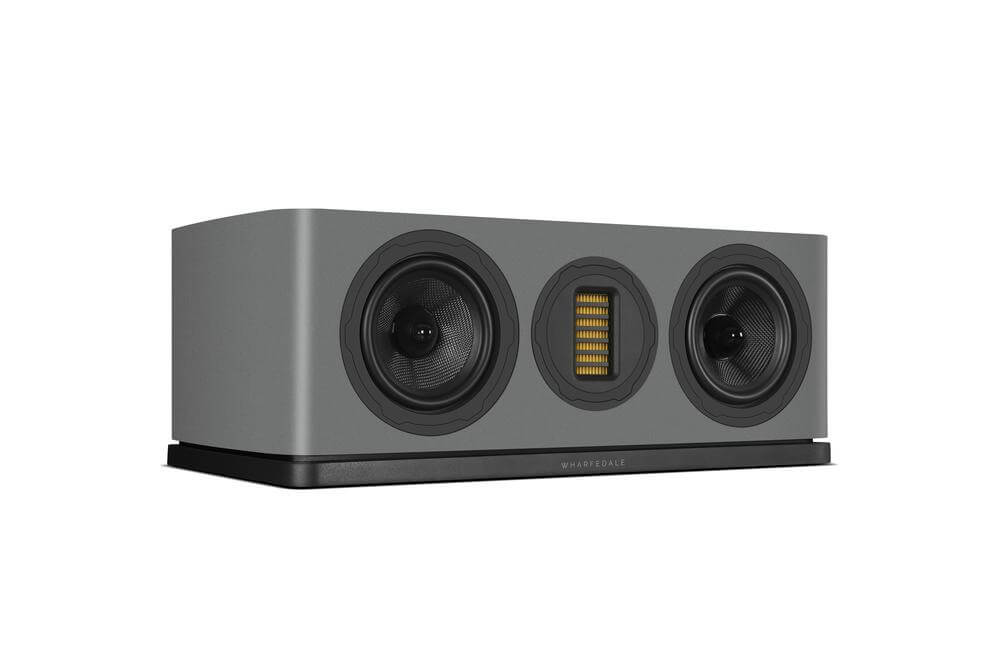

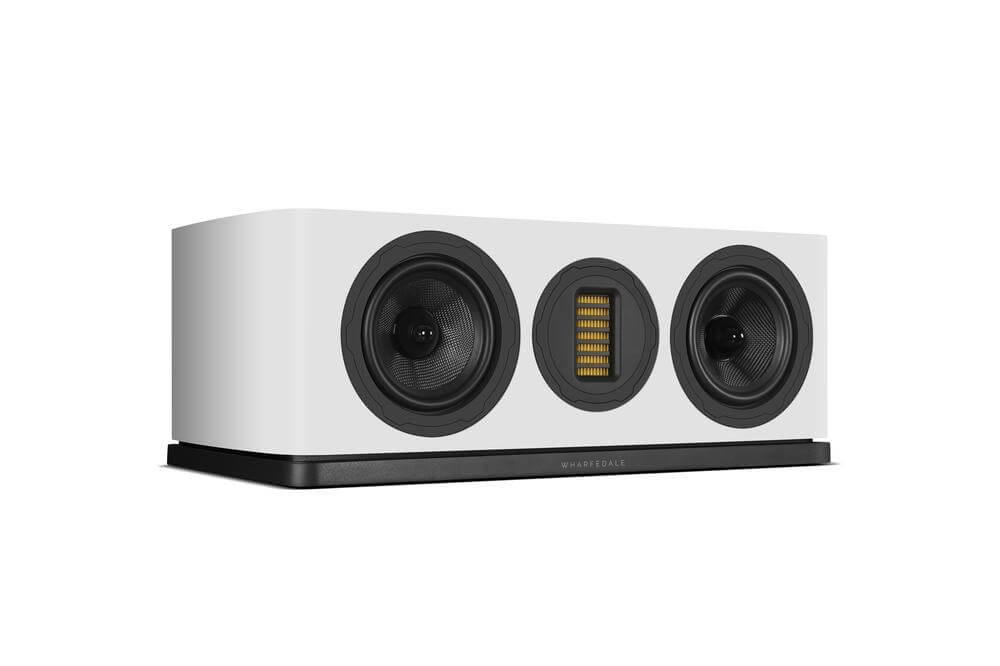

The Wharfedale EVO 5.C is a 2-way centre channel speaker built for buyers who want dialogue clarity and musical detail from a home cinema or music system without stepping into flagship pricing. It sits within the EVO 5 Series, the successor to the award-winning EVO 4 range, and carries forward the same driver philosophy while adding new damping and cabinet technology aimed at lowering distortion and colouration. It is available in Black, Lunar Grey, Walnut veneer, and White, so it can be matched to the existing EVO 5.3, EVO 5.4, EVO 5.2, or EVO 5.1 speakers in a room, or to the surrounding décor.

What makes the EVO 5.C different from a typical centre speaker?

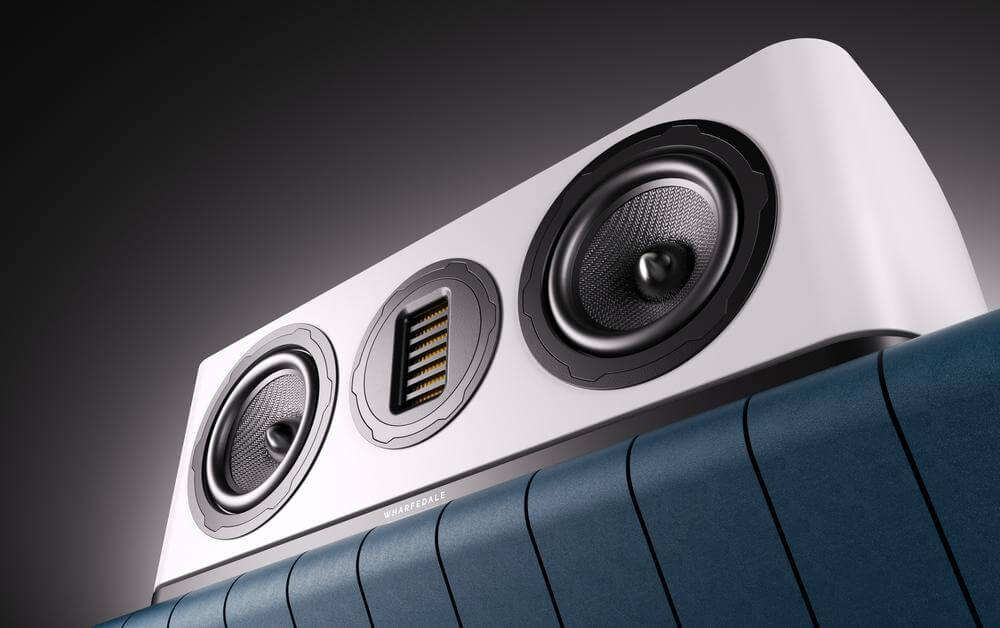

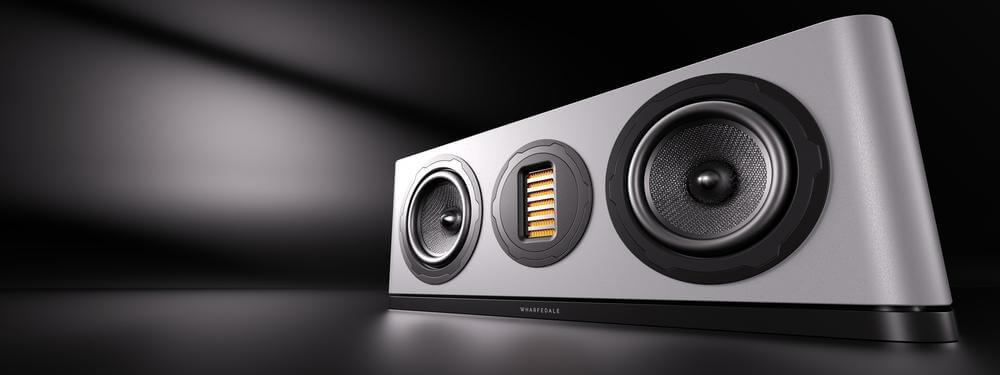

The EVO 5.C is fitted with Wharfedale's AMT (Air Motion Transformer) high-frequency unit rather than the dome tweeter found in most centre speakers at this price point. Instead of pushing air forward with a dome or cone, the AMT uses a pleated diaphragm made from an ultra-thin polymer film, sandwiched between magnets. When the diaphragm is energised, the pleats contract and expand, moving air in a folding motion that pushes roughly four times more air than a conventional dome of the same surface area. This is the reason the EVO 5.C is positioned above typical entry-level centre speakers despite its compact footprint.

Will it match your amplifier or AV receiver?

Its nominal impedance of 4Ω is also 8Ω compatible, so it will run from either a 4Ω-rated or an 8Ω-rated amplifier output without additional matching components. Wharfedale specifies a recommended amplifier power range of 25W to 120W and a sensitivity of 89dB (2.83V @ 1m), so the speaker reaches useful cinema and music listening levels without demanding a high-current amplifier. Peak SPL is rated at 103dB, giving headroom for dynamic film soundtracks.

Can the EVO 5.C be paired with other speakers in the range?

The EVO 5.C is designed as the dedicated centre channel partner for the wider EVO 5 Series, sharing the same AMT tweeter, ResoFrame damping, and Silentweave absorption material used across the floorstanding and standmount models. Pairing it with EVO 5 towers or standmounts for the front left and right channels supports a consistent tonal balance across the front soundstage during dialogue and pans.

How does it fit into a home cinema installation?

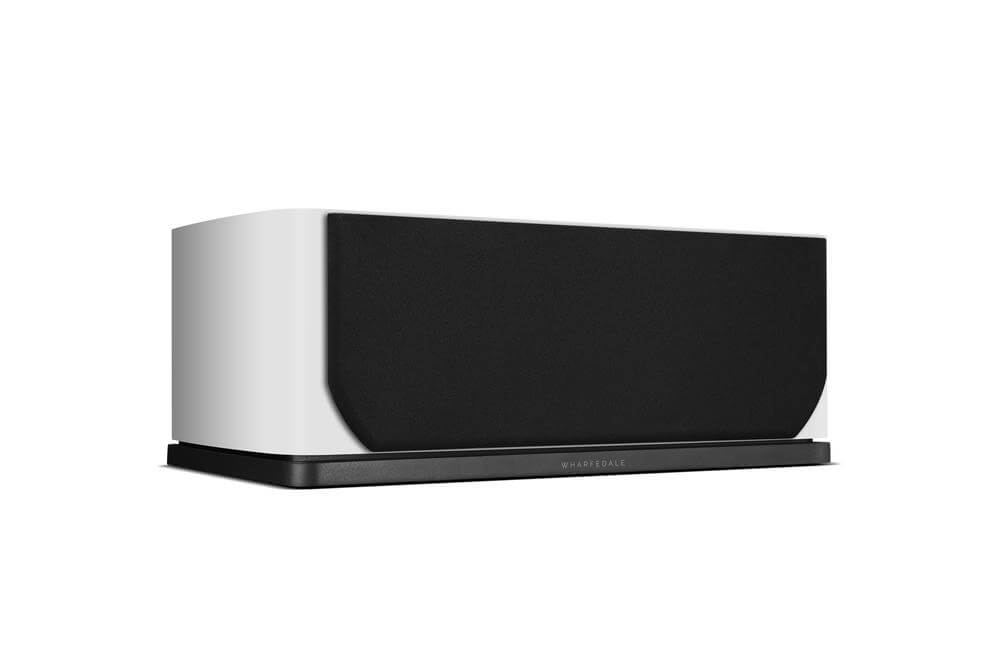

It is not magnetically shielded, per its AV shield specification, so placement should account for this where relevant. At 188mm high, 520mm wide, and 265mm deep (305mm including the grille), and weighing 12.5kg, it is sized to sit beneath a wall-mounted screen or on a shelf within a TV cabinet. The cabinet is supplied with rubber feet as a standard accessory, helping decouple it from the shelf or cabinet surface it rests on.

Who is this centre speaker designed for?

The EVO 5.C is intended for buyers building a home cinema or two-channel-plus-centre system who want dialogue and vocal reproduction to match the detail of higher-end front speakers, without the system cost climbing into premium territory. Its bass reflex enclosure and 49Hz bass extension (-6dB) support film dialogue and effects that dip into the low-midrange, while its AMT-driven treble handles the sibilance and detail present in speech.

How does the AMT tweeter's construction affect its treble?

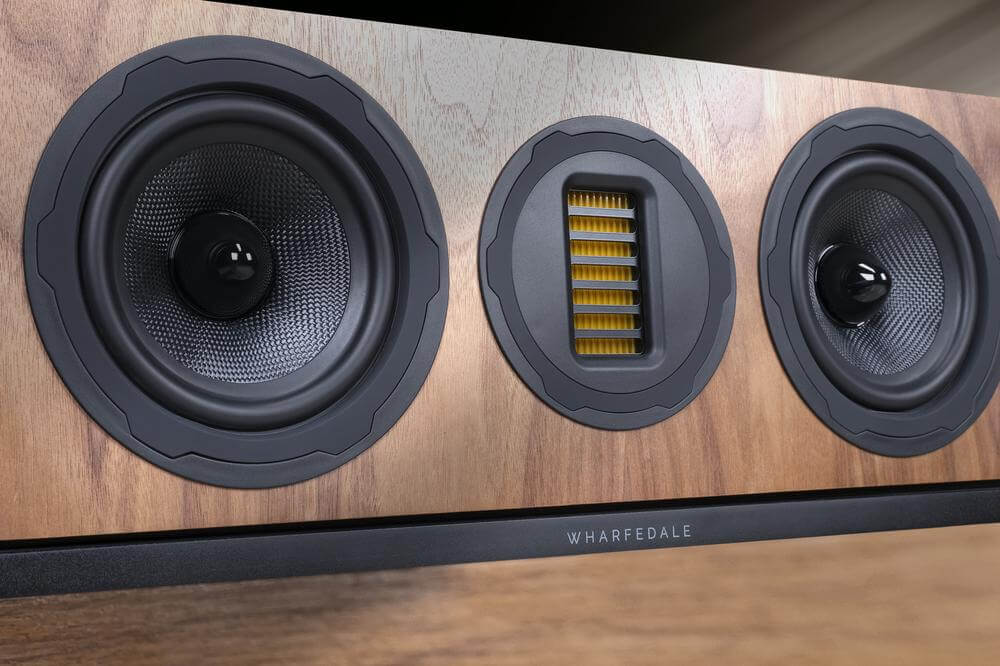

The AMT unit's rear chamber is filled with Silentweave, a material combining cotton and felt fibres developed specifically for the EVO 5 Series to absorb sound wave reflections behind the diaphragm. An elastomer damping gasket sits between the diaphragm and front plate, and the whole assembly is set within a ResoFrame acoustic damping frame, a cog-shaped elastomer ring visible on the driver's front panel. Together these reduce mechanical resonance and smooth the response through the lower treble band, the frequency region most involved in vocal sibilance and instrument detail.

What reduces distortion in the bass drivers?

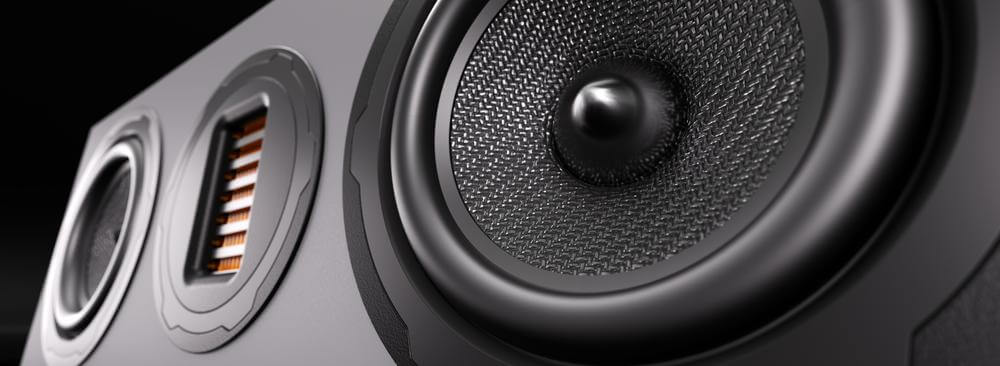

The EVO 5.C is built with two 5-inch (130mm) Black Woven Kevlar cone bass drivers, each fitted with a ResoSeal elastomer ring where the rear of the cone meets the surround. This ring mass-damps the cone edge, absorbing reflections that would otherwise disturb the driver's natural roll-off beyond the 2.3kHz crossover point. A smoother roll-off gives more scope to simplify the crossover and achieve an accurate phase blend between the bass/midrange and AMT treble unit. The same ResoFrame damping frame used on the tweeter is also applied to the bass driver's front plate, lowering distortion and colouration across its output.

What is the cabinet built from?

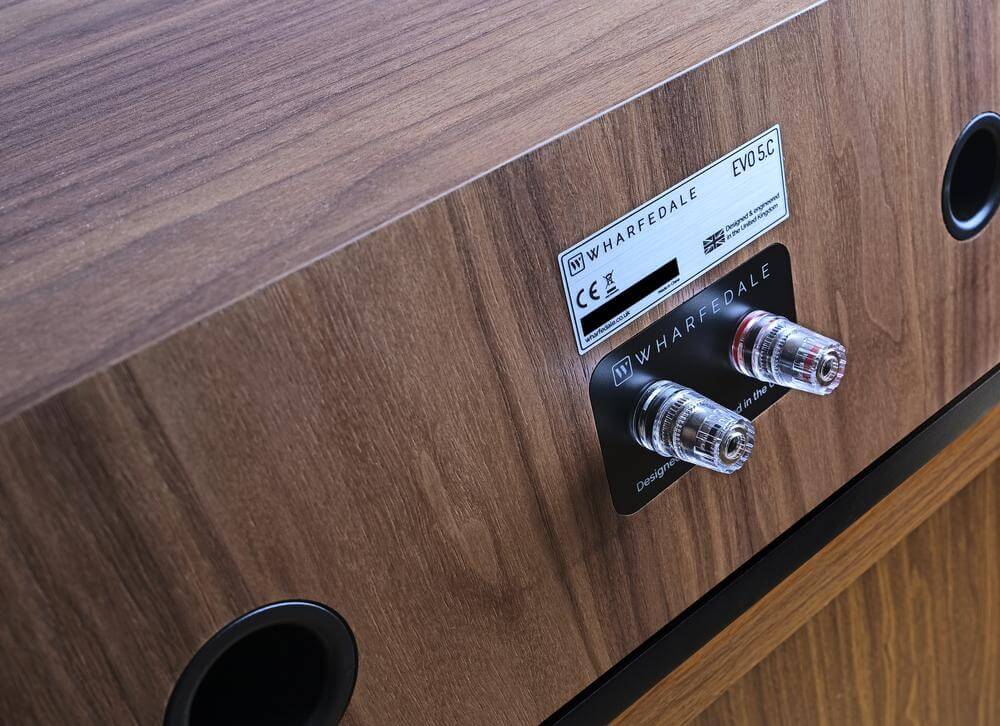

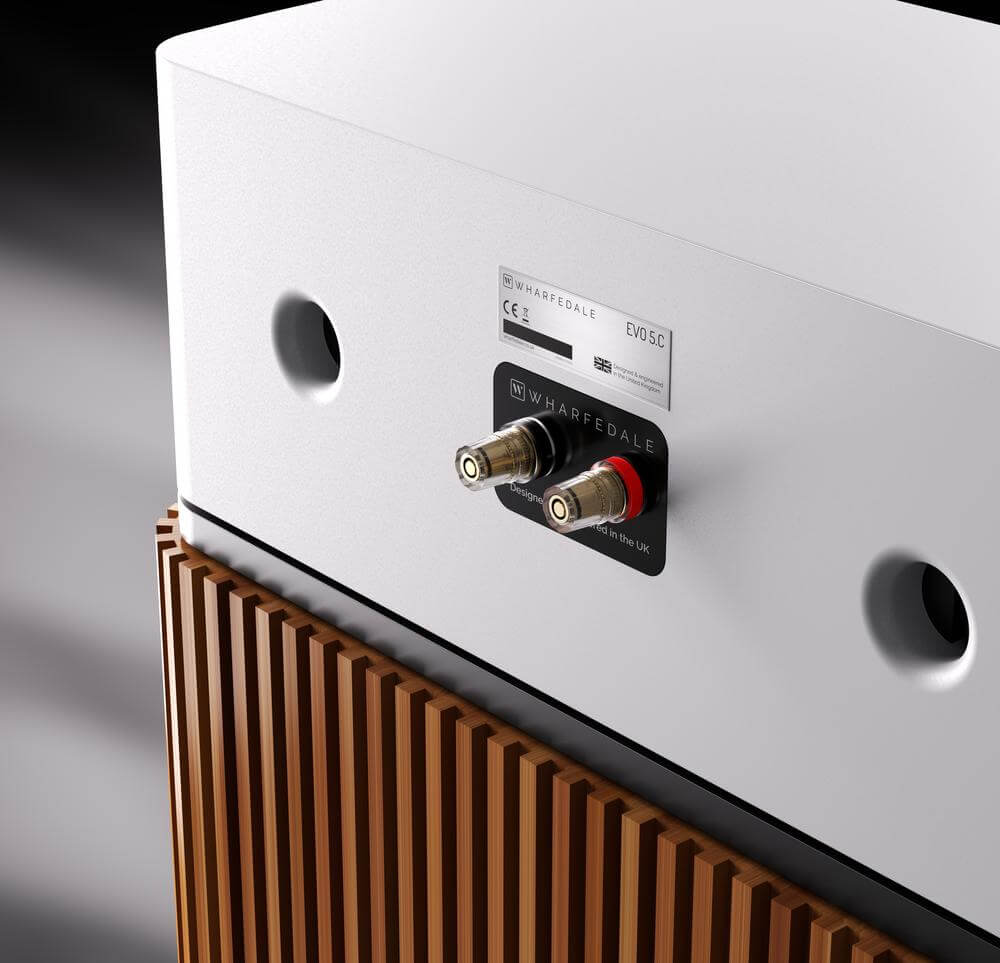

The EVO 5.C is built around a bass reflex enclosure with an internal cabinet volume of 14 litres, increased over the outgoing generation to extend bass reach and improve dispersion. The cabinet rests on a hybrid plinth combining metal and wood elements, chosen to improve structural integrity and reduce vibration transmitted into the cabinet from its supporting surface.
