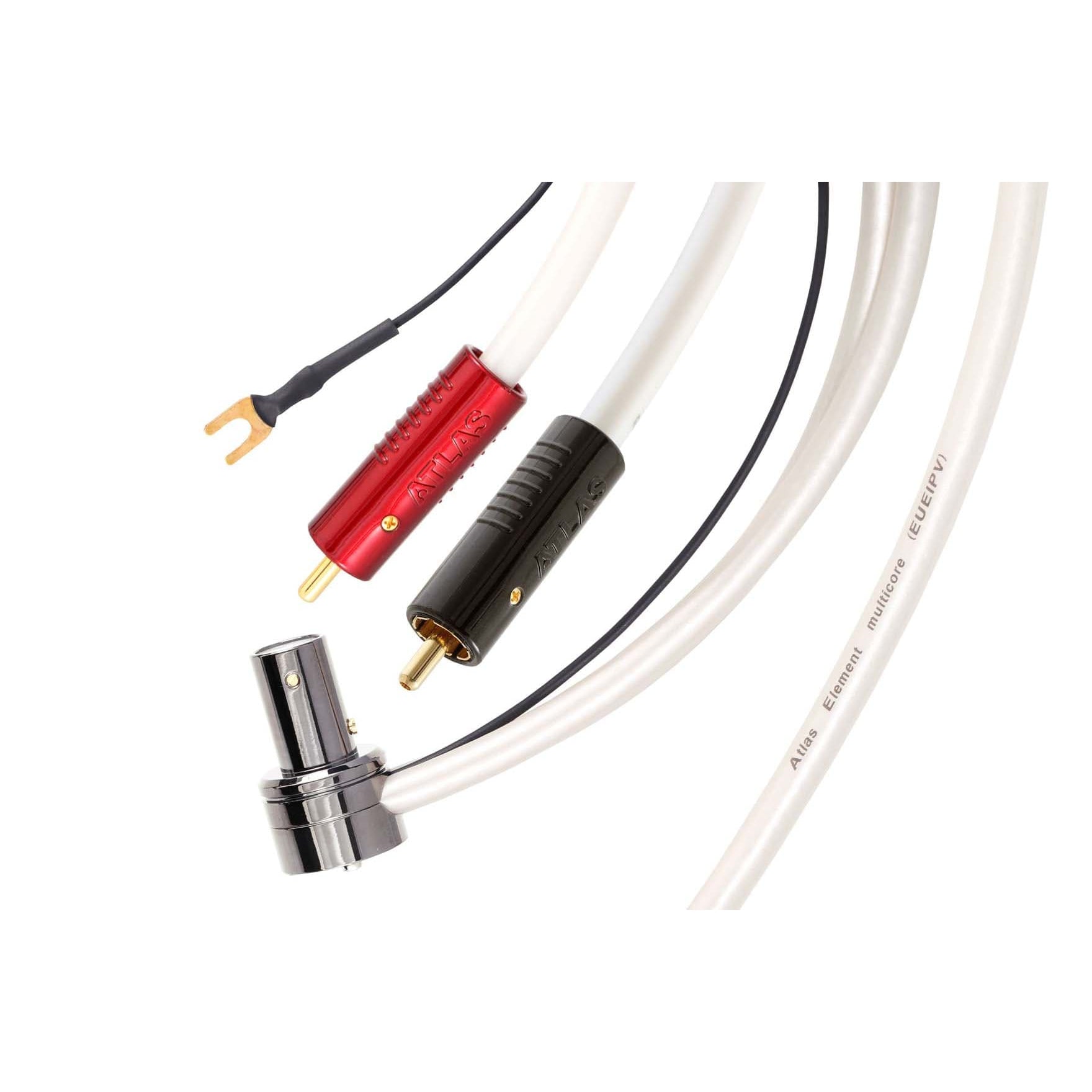

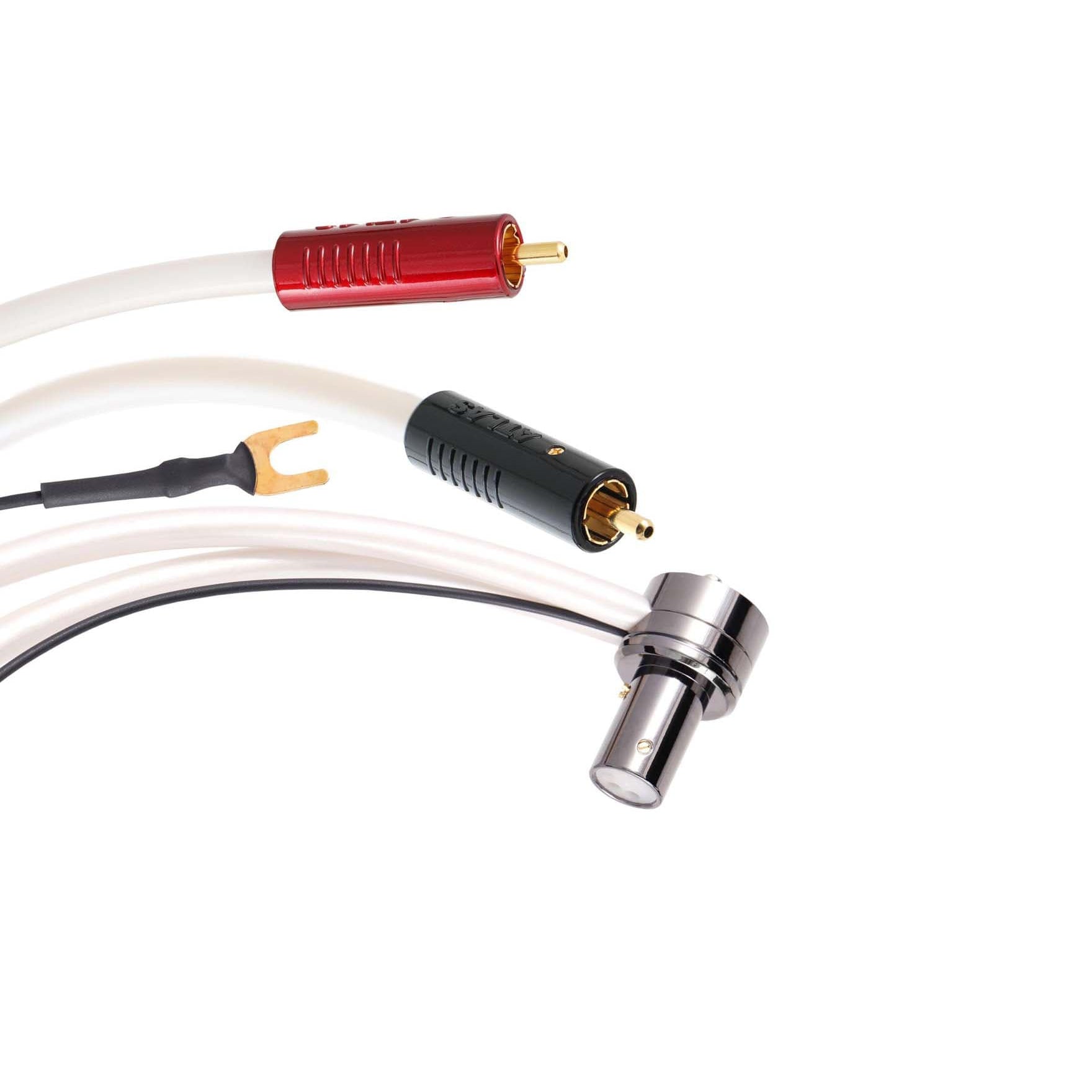

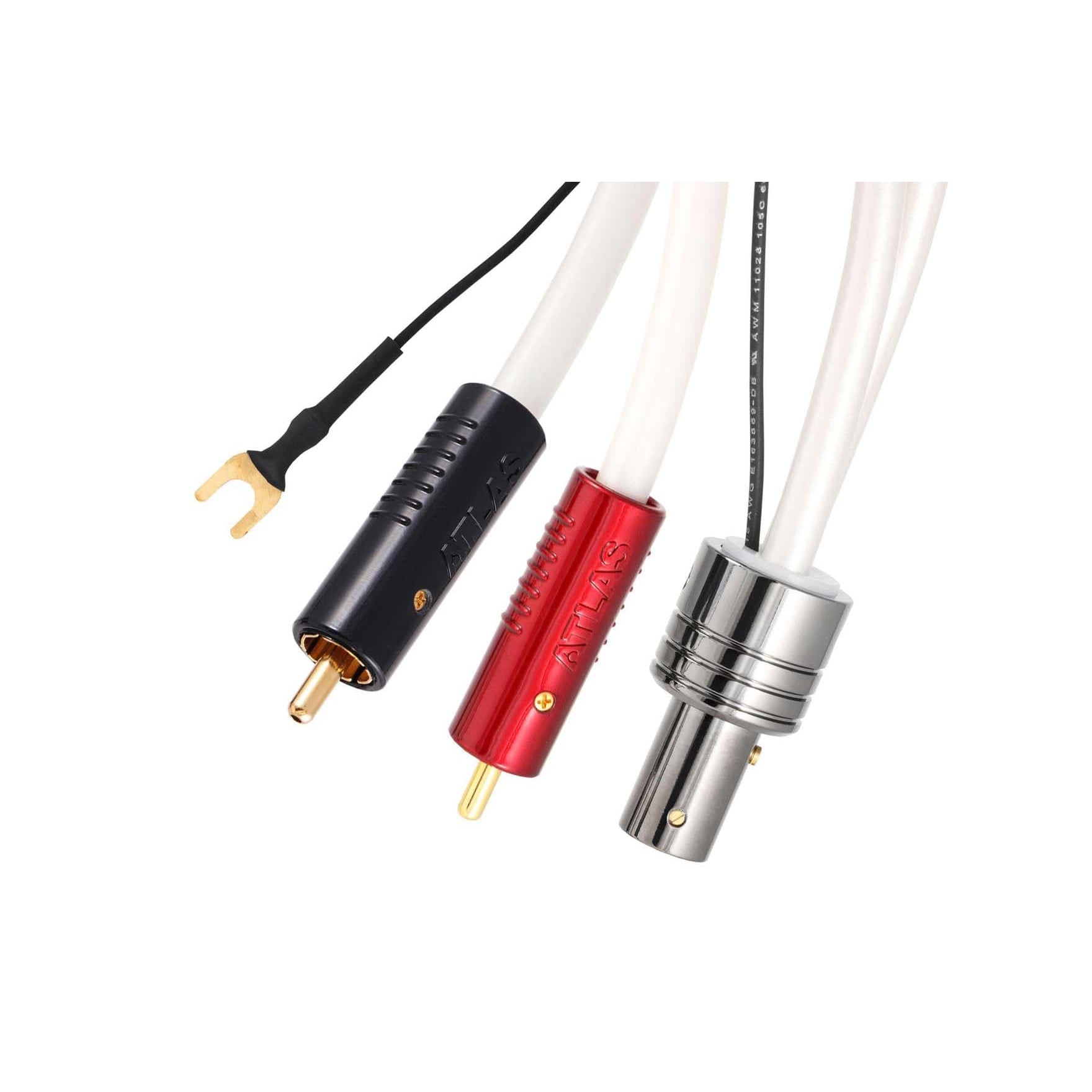

The Atlas Element Assist Tonearm – Achromatic X RCA is a high-performance phono cable designed to deliver ultra-low noise and exceptional signal fidelity between your turntable and phono stage. Using high-purity OFC copper conductors, a low-loss PEF dielectric, and robust OFC braided shielding, it preserves the delicate output of moving magnet and moving coil cartridges with clarity and depth. Fitted with precision-engineered Achromatic X RCA connectors and a gold-plated 5-pin tonearm plug, the cable supports flexible installation across a wide range of tonearm designs. Cable entry is from either the side (90° right angle entry) or from the base (180° straight entry), please specify your preferred option when ordering. Ideal as an upgrade over stock tonearm leads, it offers enhanced dynamics, refined tonal balance, and long-term reliability.

Atlas Element Assist Achromatic Tonearm X RCA Cable

Specification

Value

Construction

Multicore + screen

Conductor

OFC

Dielectric

PEF

Screen

OFC braid

Capacitance

35.97 pF/m

Inductance

0.964 µH/m

Resistance

0.0809 Ohms/m

Outside diameter

7.0 mm

Colour/finish

Pearl White

Atlas Element Assist Tonearm Cable Enhances Signal Integrity

Atlas Element Assist Tonearm – Achromatic X RCA is a premium phono interconnect cable engineered to elevate the performance of your vinyl playback system. Designed specifically for tonearm-to-phono stage connection, this low-capacitance cable preserves the delicate signals generated by both moving magnet and moving coil cartridges, maintaining musical nuance and dynamic range across the entire frequency spectrum.

The Element Assist is crafted with superior oxygen-free copper (OFC) conductors and an ultra-low-loss PEF dielectric. This combination ensures outstanding conductivity while effectively reducing signal degradation, enabling greater fidelity and tonal accuracy. Shielding is provided by an OFC braid, delivering high resistance to RFI and EMI for cleaner, quieter playback.

Achromatic X RCA Connectors Improve Signal Transfer

Atlas Achromatic X RCA connectors are the focal point of the cable's precision engineering. These next-generation cold-welded plugs eliminate solder—a potential source of impedance variation—and ensure a consistent, secure electrical interface between components. The connectors are insulated with high-grade FEP, preserving signal purity while maintaining long-term mechanical reliability.

The 5-pin tonearm connector is precision-machined, hard gold-plated, and built to exacting standards, ensuring low contact resistance and long-term durability. Whether configured for 90° side-entry or 180° straight-entry orientation, the cable offers installation flexibility for a wide range of tonearm geometries and turntable layouts.

Flexible Construction Supports Ease of Use

Atlas Element Assist Tonearm Cable is exceptionally flexible, allowing easy routing in space-constrained setups without compromising signal integrity. With an outer diameter of 7.0mm and a pearl white finish, the cable maintains a low visual profile while remaining robust and tactile during handling.

Eurobox packaging enhances the unboxing and storage experience, presenting the cable in a protective format consistent with high-end audio expectations. This makes the cable not only an upgrade in performance but also in ownership experience.

OFC Multicore Architecture Enables High-Fidelity Playback

High-purity OFC conductors form the multicore internal structure, optimised to deliver consistent impedance and minimal resistance. The measured values—capacitance at 35.97 pF/m, inductance at 0.964 µH/m, and resistance at 0.0809 Ohms/m—underscore the cable’s suitability for high-resolution phono signal transmission, ensuring that even microdynamic content in vinyl records is conveyed with clarity and precision.

This cable is an immediate performance level upgrade over stock leads that often compromise the potential of premium tonearms and cartridges. Vinyl enthusiasts, whether using classic audiophile decks or modern turntables, will find the Atlas Series Element Assist a discerning choice for enhancing soundstage width, tonal detail, and musical involvement.

Atlas Essentials Construction Delivers Long-Term Reliability

Built under the Atlas Essentials philosophy, the Element Assist embodies five core design values: low capacitance, high conductivity, robust shielding, flexible geometry, and solder-free terminations. These elements work synergistically to provide a transparent, revealing audio path between tonearm and phono stage.

Whether you’re seeking to replace ageing leads or are building a high-performance analogue signal chain from the ground up, the Atlas Element Assist Tonearm – Achromatic X RCA provides a sophisticated, technically accomplished solution trusted by analogue connoisseurs.
