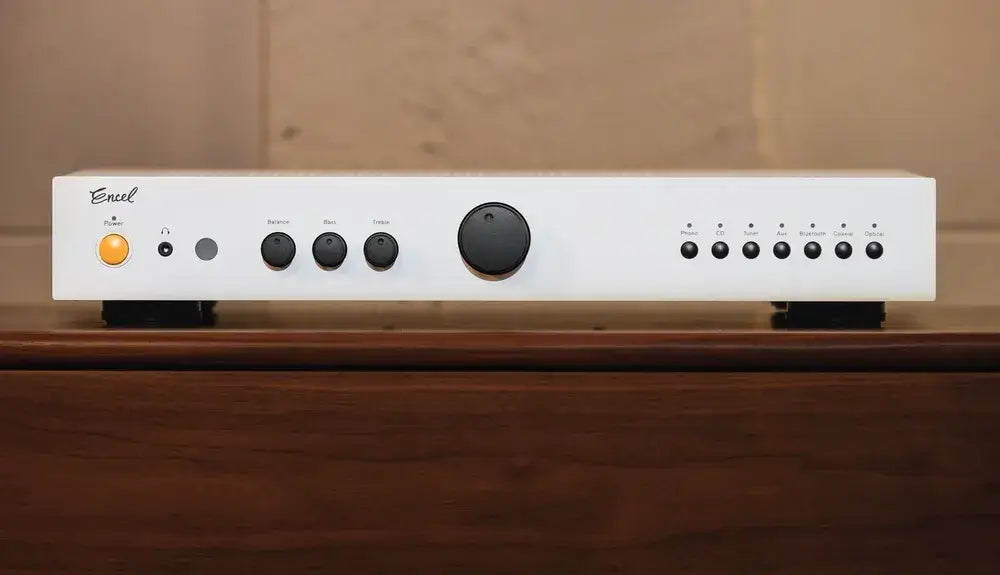

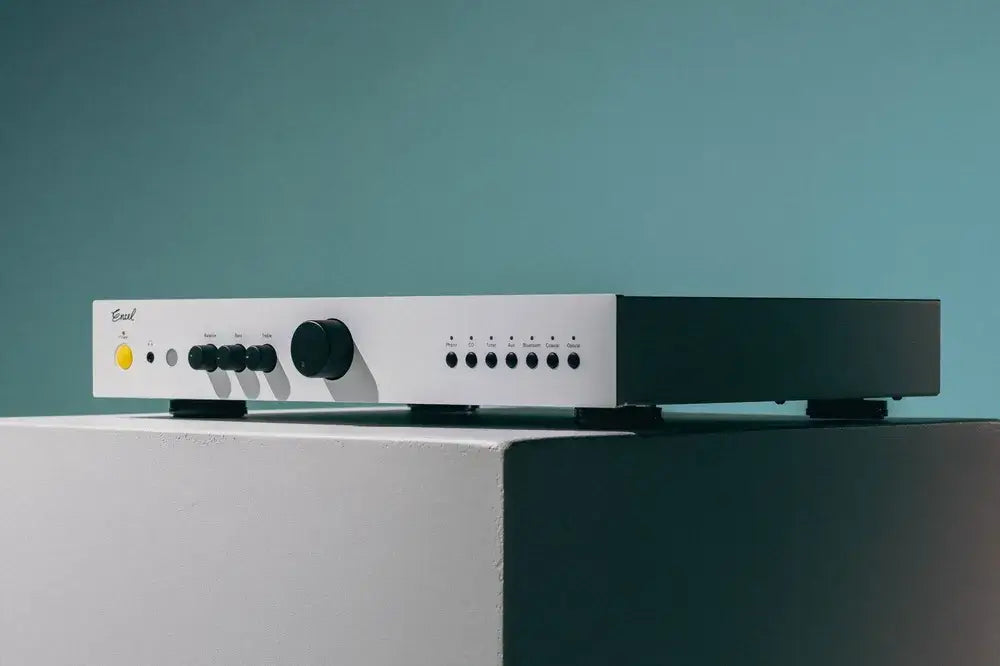

Encel Brains Integrated Amplifier

Choosing the Encel Brains Integrated Amplifier for Your Hi-Fi System

Encel Brains is an integrated amplifier built to sit at the centre of a home hi-fi system, taking a signal from a turntable, CD player, phone or TV and driving it through to your speakers with the power and clarity that source alone can't provide. On its own, a phono or line-level signal carries barely enough energy to move a speaker driver, so Brains adds clean amplification without introducing distortion into that signal. Its 40 watts per channel output at 8 ohms, combined with total harmonic distortion below 0.03 percent, means the amplifier boosts the incoming signal without smearing fine detail or adding audible noise. A damping factor of 180 gives the amplifier tight control over speaker cone movement, translating into more accurate bass response and better-defined transients.

Which sources can it connect to?

It carries a range of inputs that let you build a system around it rather than working around its limitations. A dedicated phono input, with a sensitivity of 2.5mV and impedance of 47k ohms, accepts a turntable's cartridge signal directly, so you don't need a separate phono preamp if you're starting out with vinyl. Line-level inputs, rated at 150mV sensitivity and 24k ohms impedance, cover CD players, streaming devices and other analogue sources, while a Texas Instruments 32-bit/384kHz PCM5102 DAC handles digital signal conversion for connected digital sources. A headphone output gives you a private listening path for late-night sessions. Line-level frequency response extends from 10Hz to 40kHz within ±1dB, while the phono stage runs from 20Hz to 15kHz within ±0.3dB, so both digital and analogue sources are reproduced with minimal tonal deviation across the audible range.

How do you set up and control the amplifier?

Setup is handled largely from the listening position, since input selection and volume adjustment both work via the included remote control. Volume itself is handled entirely in the analogue domain rather than through a digital stepped attenuator, which avoids the digital artefacts that can creep into quieter passages. Bass and treble controls, each offering ±6dB of adjustment at 100Hz and 10kHz respectively, let you tune the output to your room rather than your speakers alone. Smaller speakers struggling in a large room benefit from added bass, while a heavily carpeted room that's soaking up treble responds well to a boost at the top end. The unit runs on 120V/60Hz or 230V/50Hz power, drawing up to 150 watts, and its 430 x 73 x 347mm chassis is sized to sit comfortably on a standard hi-fi rack or shelf.

Who is Brains built for?

Brains is suited to a buyer who wants a single amplifier to grow into rather than replace as their system changes, whether they're building a first vinyl setup, adding a CD player, streaming from a phone or connecting a TV for film and game sound. Its durable construction and repairable componentry mean individual parts can be serviced rather than the whole unit discarded when something wears out, making it a practical choice for anyone who wants one amplifier to remain relevant for years, potentially passing between owners or generations.

What engineering keeps the signal clean?

This amplifier centres on a high-current, low-noise transformer that isolates its internal circuitry from the electrical noise and physical vibration present in mains power. Since that circuitry depends on a clean power supply to reproduce a signal accurately, the transformer's job is to strip out noise before it reaches the amplification stage. Signal-to-noise ratios of 80dB for the phono input and 100dB for line-level inputs reflect how effectively that clean supply, combined with the circuit design, keeps background hiss out of the reproduced signal. It uses Class A/B amplification rather than the Class D amplification found in Bluetooth speakers and wireless headphones; Class D circuits are more efficient and compact, suited to portable and wireless devices, while Class A/B remains the preferred topology in dedicated hi-fi amplifiers for reproducing a signal with fewer tonal compromises.

What is Brains made from?

Its chassis is custom-engineered from steel, paired with a solid aluminium front panel produced using dedicated tooling and finished with a fine sand-blast texture. That combination gives the casework the rigidity needed to shield internal circuitry from external vibration, while the sand-blasted front panel resists wear over years of daily use. The amplifier comes in black or white finishes, each paired with inverted shading on the control dials and input selectors, so the control layout reads clearly against either finish. Design work was undertaken in Melbourne through multiple rounds of iteration, continuing Encel's history of Australian audio engineering spanning over 60 years.

Where does Brains sit in the Encel range?

Encel Brains is positioned as the amplification core of an Encel-based system, intended to pair with the brand's own source components such as its turntables rather than function as a standalone streaming or all-in-one unit. Buyers assembling a system around a turntable will find value in its built-in phono stage, which removes the need for a separate phono preamp. Those focused on long-term ownership, repairability, and a single unit that accepts turntables, CD players, digital sources and headphones are the clearest fit. Brains is available through specialist hi-fi retailers, with purchase and demo enquiries directed through Encel's stockist network.
