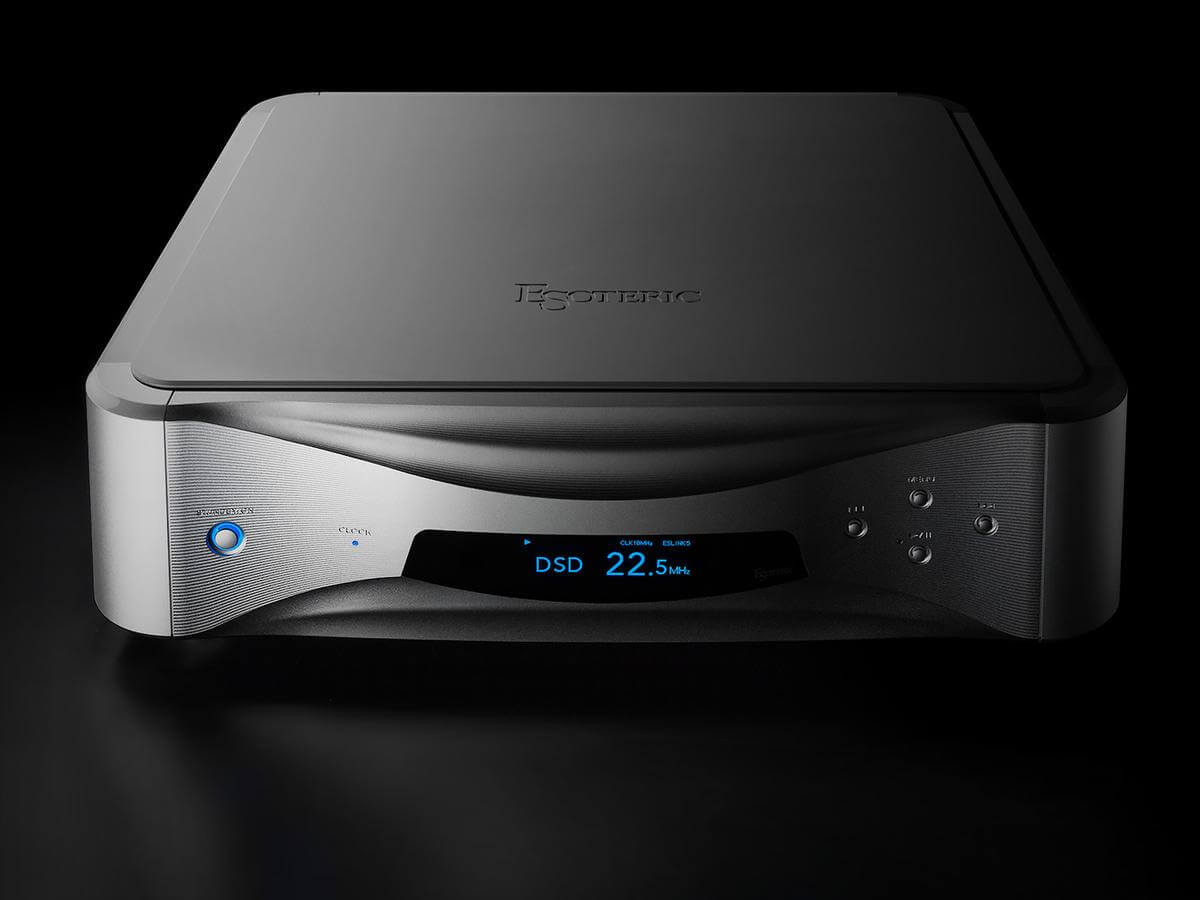

Esoteric Grandioso N1T Reference Network Audio Transport / Streamer

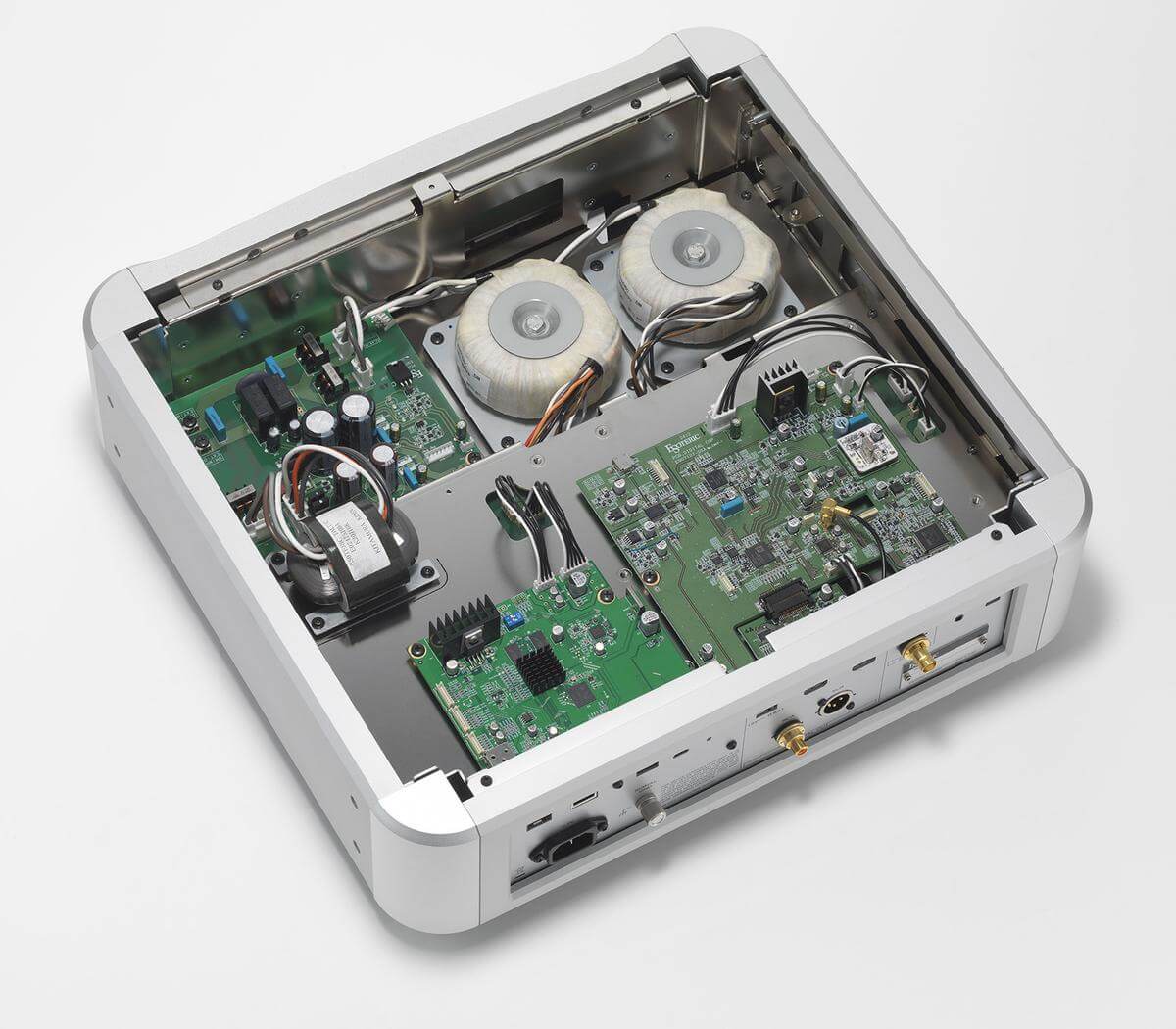

The Esoteric Grandioso N1T Reference Network Audio Transport is a flagship streaming solution built to deliver the purest digital playback. Powered by the 4th Gen Esoteric Network Engine G4, it supports native DSD 22.5MHz, PCM 768kHz/32-bit, and integrates with Tidal, Qobuz, Spotify, and Roon. With independent linear power supplies, an ultra-precise Master Sound Discrete Clock, and ES-Link5 high-bandwidth connection to Esoteric DACs, it ensures unmatched sonic purity. Featuring an SFP port for optical networking and dual USB server capability, the Grandioso N1T embodies Esoteric’s meticulous craftsmanship and sets a new benchmark in high-end network streaming.
To secure a unit, please enquire directly regarding current availability, as lead times may vary.
Specifications
Esoteric Grandioso N1T Reference Network Audio Transport / Streamer
Specification | Value |
---|---|
Product |
Grandioso N1T |
Supported file formats |
FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA, DSF, DSDIFF (DFF), DoP, MP3, AAC (m4a container) |

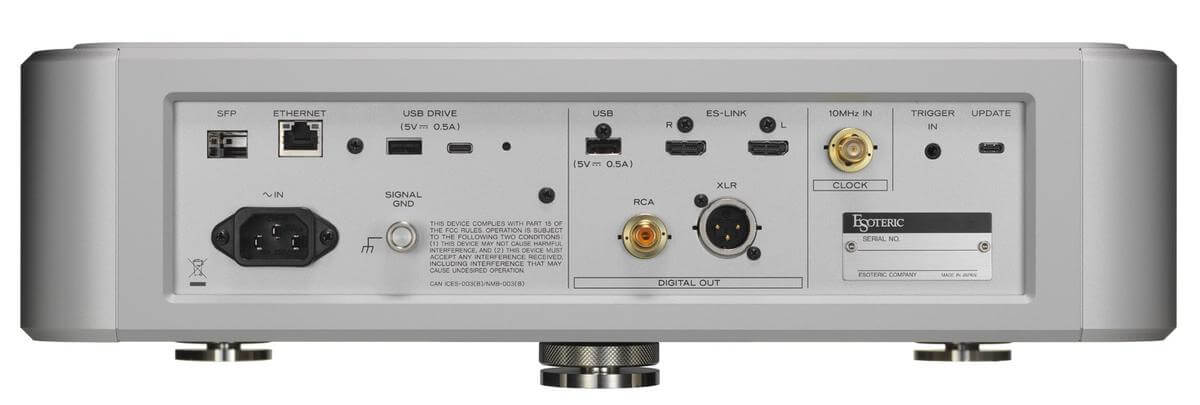

Ethernet port (1000base-t) |
× 1 |
Sfp port (1000base-t) |
× 1 |
Usb drive ports |
USB 2.0 or higher recommended (FAT32 or NTFS single partition, maximum current supply 0.5A) |
Usb type-a |
× 1 |
Usb type-c |
× 1 |
Supported sampling frequencies pcm |
44.1k-768kHz, 16/24/32bit (32bit integer / 32bit float format) |
Supported sampling frequencies dsd |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
Digital outputs es-link |
× 1 (L/R) |
Digital outputs usb port (usb2.0) |
TYPE-A × 1 (maximum current supply: 0.5A) |
Digital outputs xlr (110ω) |
× 1 (PCM 44.1k〜192kHz 16/24bit, DSD 2.8MHz DoP) |
Digital outputs rca (75ω) |
× 1 (PCM 44.1k〜192kHz 16/24bit, DSD 2.8MHz DoP) |
Clock input connector |
BNC × 1 |
Clock input impedance |
50Ω |
Clock input frequencies |
10MHz (±10ppm) |
Clock input level sine wave |
0.5-1.0Vrms |
Clock input level rectangle wave |
TTL levels |
External control trigger input (trigger in) |
3.5mm mono mini jack × 1 |
External control trigger input level |
12V, 1mA |
Product Details
