Master Clock Generator Sets Benchmark: Grandioso G1X Enhances Musical Expression
Grandioso G1X is a high-end master clock generator designed to redefine digital audio fidelity through Esoteric’s first wholly original and fully in-house-developed clock architecture. Centred around the revolutionary Master Sound Discrete Clock, the G1X embodies a singular engineering focus on clock precision, temperature control, and electromagnetic stability, culminating in a reference-grade timing solution tailored for the most discerning audiophiles and high-performance digital systems.
Master Sound Discrete Clock Sets New Sonic Standards

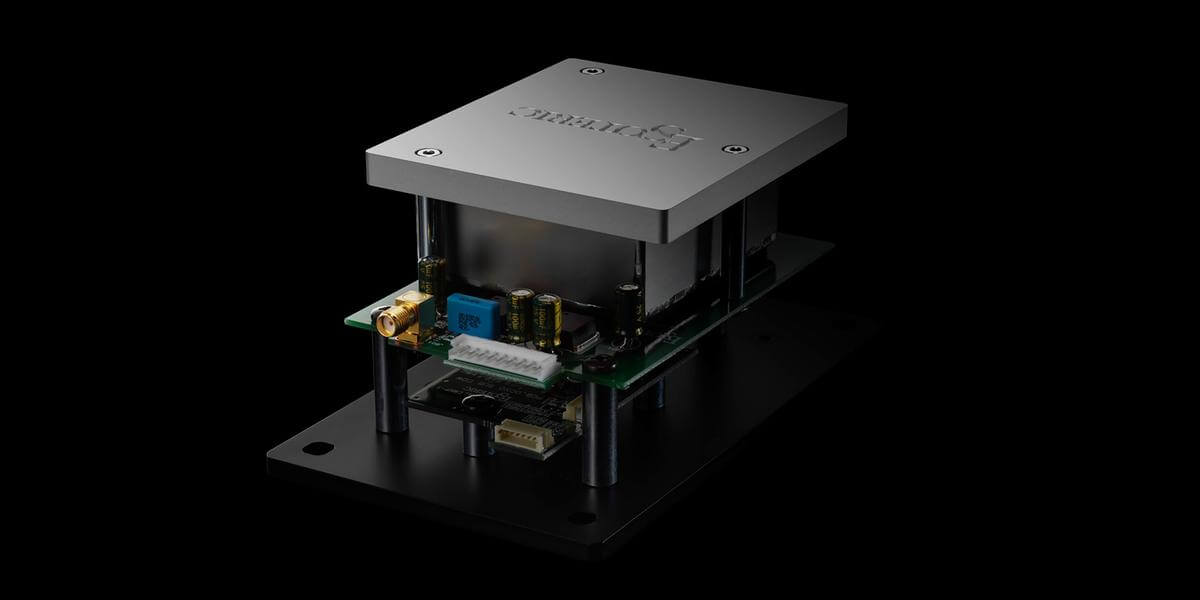

Master Sound Discrete Clock is the proprietary timing core of the Grandioso G1X, featuring Esoteric’s newly engineered SC1 crystal oscillator. Unlike standard modules that rely on off-the-shelf rubidium or cesium-based solutions—often with compromised internal crystal circuits—the G1X’s oscillator is purpose-built for ultra-high fidelity musical reproduction. The SC1 crystal is slow-grown and SC-cut, optimised for resonance stability, and selected with extreme precision based on vibrational consistency and frequency deviation profiles.
This oscillator isn’t a generic timing component—it is an audio-first crystal module, built to deliver superior timbral accuracy and low phase noise. The bespoke circuit architecture supports high drive levels and improved oscillation purity, allowing digital components locked to the G1X to exhibit refined tonal balance and a notably deeper harmonic structure.
SC1 Crystal Engineered for Tonal Purity and Temporal Accuracy
Esoteric SC1 crystal offers unmatched thermal and mechanical stability, taking inspiration from quartz technology originally developed for aerospace navigation. Its resonance behaviour is meticulously curated, with large crystal size and proprietary cut geometry used to enhance resistance to parasitic losses and maintain coherence under electrical load.
Each crystal undergoes individual characterisation, where its temperature-frequency profile is charted in detail during production. This ensures that each unit of the Grandioso G1X is matched with an oven control program tuned specifically to its oscillator, enhancing frequency integrity and preserving the original spatial cues of music.
Master Sound TC Delivers Precision Thermo-Control
Master Sound TC (Thermo-Control) is the intelligent environmental stabilisation engine of the G1X, ensuring that the SC1 crystal always operates within its optimal thermal band. Unlike generic OCXO designs that use fixed 85°C ovens and compensate frequency drift via correction circuits, Esoteric’s approach actively micro-controls the oven’s thermal behaviour based on the specific temperature signature of each oscillator.
The system’s adaptive thermal modelling maintains tight temperature tolerances with real-time adjustments, delivering a purer 10MHz sine wave output with no artefacts introduced by active frequency correction. This yields a timing signal of exceptional phase stability and sonic transparency.
Vacuum Flask Oven Minimises Thermal Drift and Energy Load
Grandioso G1X features a proprietary vacuum flask oven architecture, created in collaboration with advanced metalworkers in Tsubame City. By isolating the heater assembly within a vacuum-sealed, thermos-style enclosure, the G1X virtually eliminates conductive heat loss and environmental thermal interference.
This results in not only lower power requirements but also reduced heater cycling, which is critical to maintaining continuous waveform stability without thermal-induced modulation—an overlooked source of sonic distortion in less sophisticated designs.
128-Step Heater Control Enables Ultra-Fine Thermal Resolution
Esoteric 128-step heater control ensures consistent temperature equilibrium, addressing the problems associated with traditional on-off thermal regulation. This high-resolution control loop actively adjusts heater output across a fine-grain gradient, avoiding voltage ripple and electrical interference that can degrade oscillator performance.
This innovation translates into ultra-low jitter performance and audible improvements in transient clarity, timing cohesion, and spatial imaging—particularly in systems using high-resolution DACs and transport units that demand precise timing synchronisation.
Independent Power Supplies Preserve Signal Integrity
Grandioso G1X deploys four fully discrete power supply circuits, each tailored to critical subsystems: oscillator drive, oven heating, control microprocessor, and output buffer amplification. By preventing power-supply interference between functional blocks, the G1X achieves an exceptional signal-to-noise ratio and a lowered noise floor.
This isolation elevates low-level detail retrieval and dynamic microcontrast, especially when connected to DACs or digital transports via 10MHz master clock synchronisation.
Esoteric-HCLD Buffer Amplifier Maintains Signal Purity Across Output Loads
Esoteric-HCLD (High Current Line Driver) buffer amplifier delivers uncompromised output consistency, borrowed directly from the Grandioso C1X linestage preamp. With ultra-fast slew rate and a bandwidth extending to 180MHz, the buffer maintains the full spectral integrity of the 10MHz sine wave across a variety of load impedances and cable lengths.
This high headroom buffer ensures pristine transmission of the master clock signal, critical when synchronising multiple digital components across a system, such as transport, DAC, and upsampler.
10MHz Sine Wave Outputs Support Adaptive Zero Ground Mode

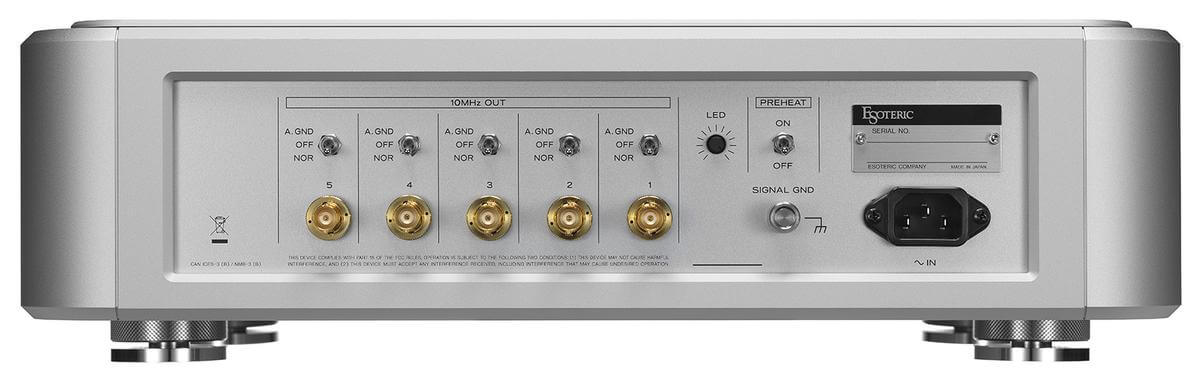

Grandioso G1X provides five isolated 10MHz sine wave clock outputs, each configurable to operate in Normal or Adaptive Zero Ground mode. The latter sets the reference ground potential to zero volts, reducing ground loop interactions between connected digital devices.
This design flexibility supports precise synchronisation across high-end digital playback chains, ensuring ultra-low jitter distribution with system-level ground plane optimisation for improved sonic coherence.
MIL-Spec Cabling and SMA Connectors Ensure Optimal Signal Transmission
Grandioso G1X includes custom coaxial cabling fitted with MIL-grade SMA connectors, chosen for their superior mechanical stability and minimal transmission loss. The internal wiring design suppresses electromagnetic reflection and impedance mismatch, preserving waveform integrity from oscillator to output.
This engineering discipline reflects Esoteric’s attention to signal purity and component-level reliability, especially in complex audio ecosystems where cable-induced jitter and phase error can subtly degrade performance.
Preheat Function Preserves Thermal Stability Between Listening Sessions
Grandioso G1X features a preheat mode that maintains optimal crystal temperature, even when the main power is switched off. This reduces warm-up time and ensures the oscillator remains within thermal equilibrium, ready to deliver peak clock performance from the moment the system is activated.
This feature is essential for critical listening environments, where consistent sonic performance is expected without long wait periods for thermal stabilisation.
Chassis Architecture Designed for Vibration Control and Electromagnetic Shielding
The Grandioso G1X chassis features a dual-layer base and semi-floating top panel, engineered to isolate mechanical vibration and suppress electromagnetic interference. Critical components such as power transformers are separated by structural layering, while pinpoint feet provide direct grounding paths for mechanical resonance.
Laser-precision slits in the chassis panels further enhance mechanical damping and airflow regulation, allowing the G1X to operate in thermally and acoustically controlled conditions. These refinements contribute to an unmistakably relaxed and open sound signature, prized in premium digital audio setups.
