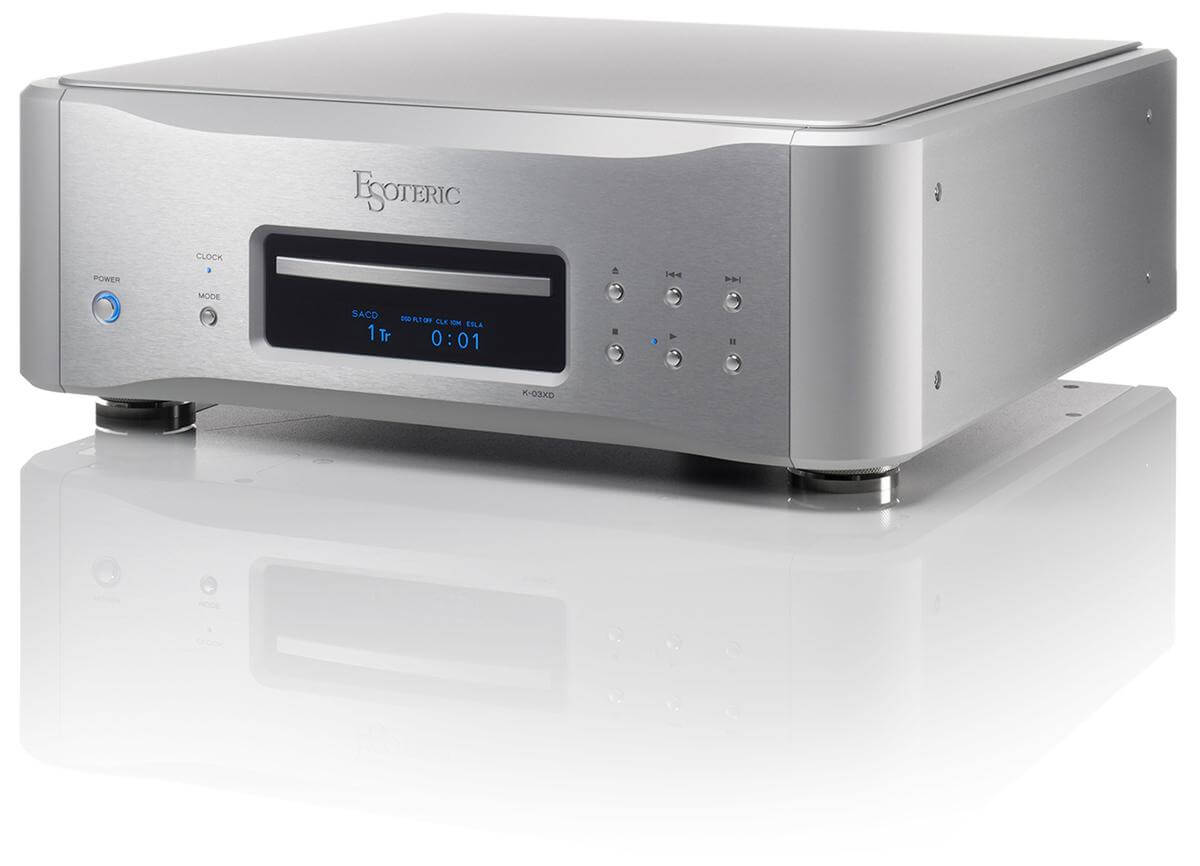

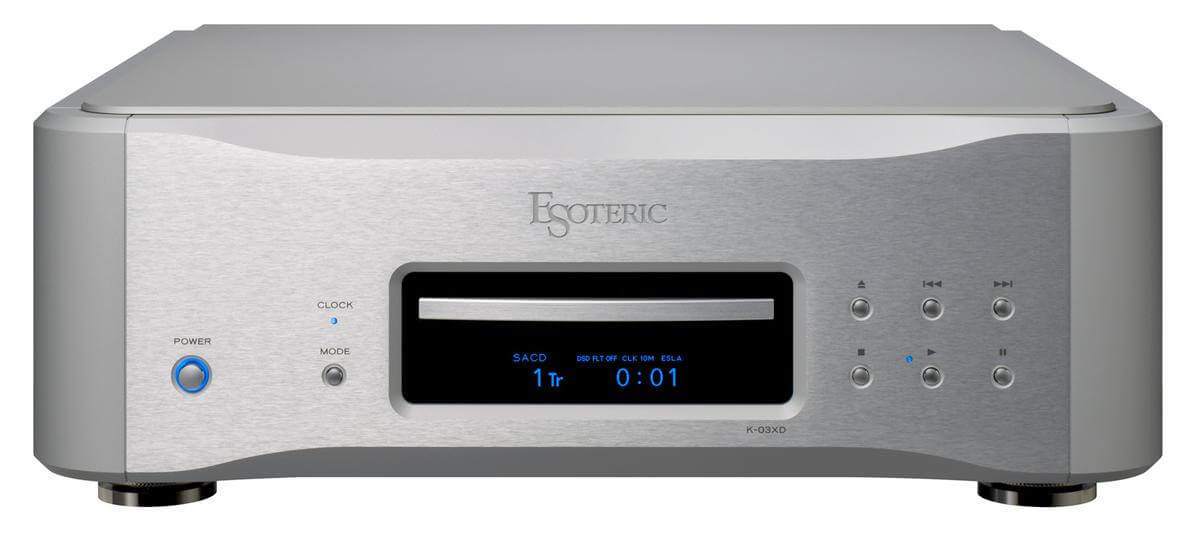

Esoteric K-03XD SE Reference CD/SACD Player/DAC

Super Audio CD/CD Player Showcases Advanced Playback Technology

Super Audio CD/CD Player K-03XD SE is a reference-grade disc player that integrates Esoteric’s flagship digital and mechanical engineering, offering a transformative listening experience for audiophiles and high-end audio enthusiasts. This premium player merges mechanical precision with meticulously crafted digital conversion architecture, enabling playback of both CD and Super Audio CD formats with remarkable accuracy, energy, and spatial realism.

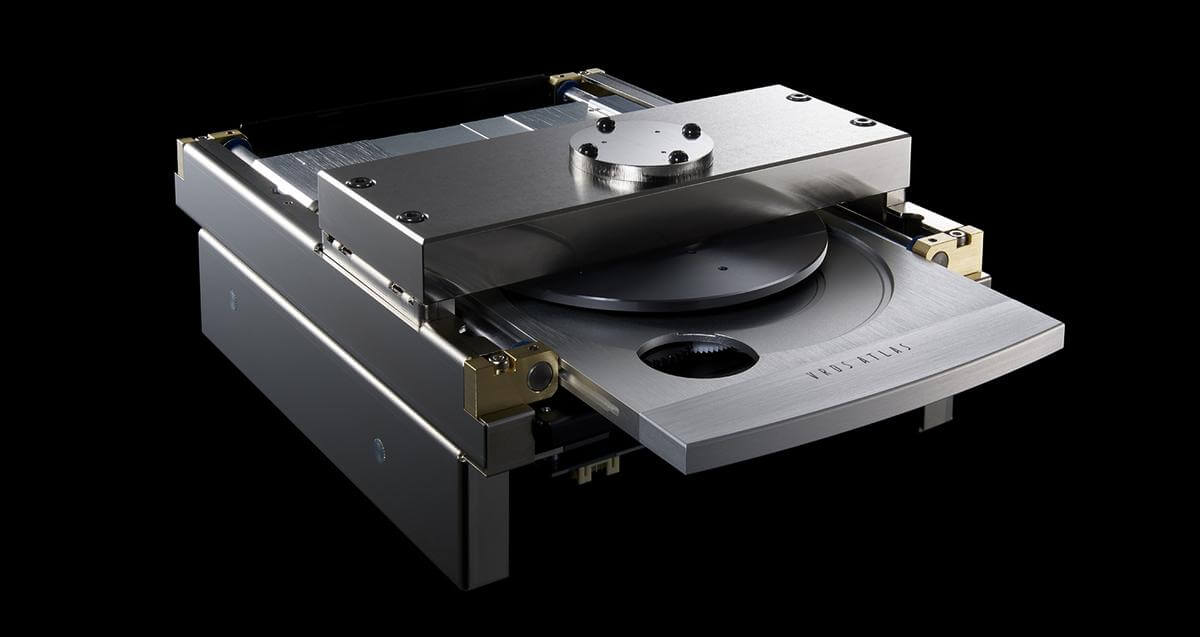

VRDS System Enhances Disc Stability and Sound Integrity

VRDS technology ensures exceptional disc handling by clamping the disc to a platter of identical diameter, eliminating rotational vibration and reducing mechanical noise. In the Esoteric K-03XD SE Super Audio CD/CD Player, this mechanism precisely corrects disc warpage and aligns the disc surface to the optical axis of the pickup, reducing servo activity and enhancing optical reading fidelity.

VRDS-ATLAS, the most advanced platform in Esoteric’s transport history, is employed in a dedicated configuration for the K-03XD SE. Adapted from flagship models like the Grandioso P1X SE and K1X SE, this disc transport ensures silent operation with an ultra-rigid structure, achieved through its 18mm SS400 steel bridge and duralumin platter. Its single-point spindle bearing minimises friction while enhancing rotational smoothness, mirroring the precision design seen in top-tier units.

Wide, Low-Profile Construction Minimises Resonance

The wide-format, low-centre-of-gravity chassis of the K-03XD SE further reduces mechanical resonance and vibration. This layout positions the turntable motor beneath the transport bridge, drastically shortening the vibration grounding path and effectively isolating noise. A semi-floating, screwless top panel contributes to a more open and airy sound signature by avoiding vibration transmission through the chassis.

Additional vibration-reduction strategies include elastomer tray stoppers, minimal tray cavity dimensions, and a multi-point mechanical grounding system. The 5mm steel baseplate and triple Pinpoint Feet (patented) ensure maximum decoupling and structural rigidity, contributing to the clarity and depth of musical playback.

Twin Toroidal Transformers Deliver Isolated, Clean Power

The power supply architecture in the Esoteric K-03XD SE CD player is critical to its rich sonic presentation. Two independent toroidal transformers power digital and analogue stages separately, preserving signal purity and dynamic range. This dual-transformer design supports a broad, sculpted soundstage with minimal interference and high current delivery.

A low-feedback discrete DC regulator enhances transparency and speed, while 26 super capacitors (650,000μF total) bolster bass articulation and transient response. This capacitor bank supports microdynamics and low-frequency resolution, reinforcing the musical foundation without loss of control or tonal detail.

Master Sound Discrete DAC Delivers Live-Performance Realism

The Master Sound Discrete DAC inside the K-03XD SE is derived from the legendary Grandioso D1X, a high-end digital-to-analogue converter praised for its lifelike realism. Each channel employs 32 discrete elements—each with its own resistor, capacitor, logic circuit, and clock driver—ensuring ultra-precise processing and electrical isolation.

This DAC structure avoids standard integrated chips, instead relying on a handcrafted array of components for unmatched fidelity. Premium-grade resistors and capacitors in the analogue section create a vivid, three-dimensional texture with extended dynamic resolution. Voices, instruments, and ambience emerge with clarity, dimension, and energy.

High-Resolution Support Through Delta-Sigma and FPGA Architecture

Advanced delta-sigma modulation in the K-03XD SE supports ultra-high-resolution formats including 22.5MHz DSD and 768kHz PCM. The 64-bit/512Fs processing pipeline is managed by a custom-developed FPGA that handles both DSD and PCM signals via an exclusive digital algorithm tailored for the Master Sound Discrete DAC.

This system optimises timing precision and digital-to-analogue conversion for natural harmonic richness and spatial depth across all supported formats, ensuring the K-03XD SE stands apart as an elite-level digital front end.

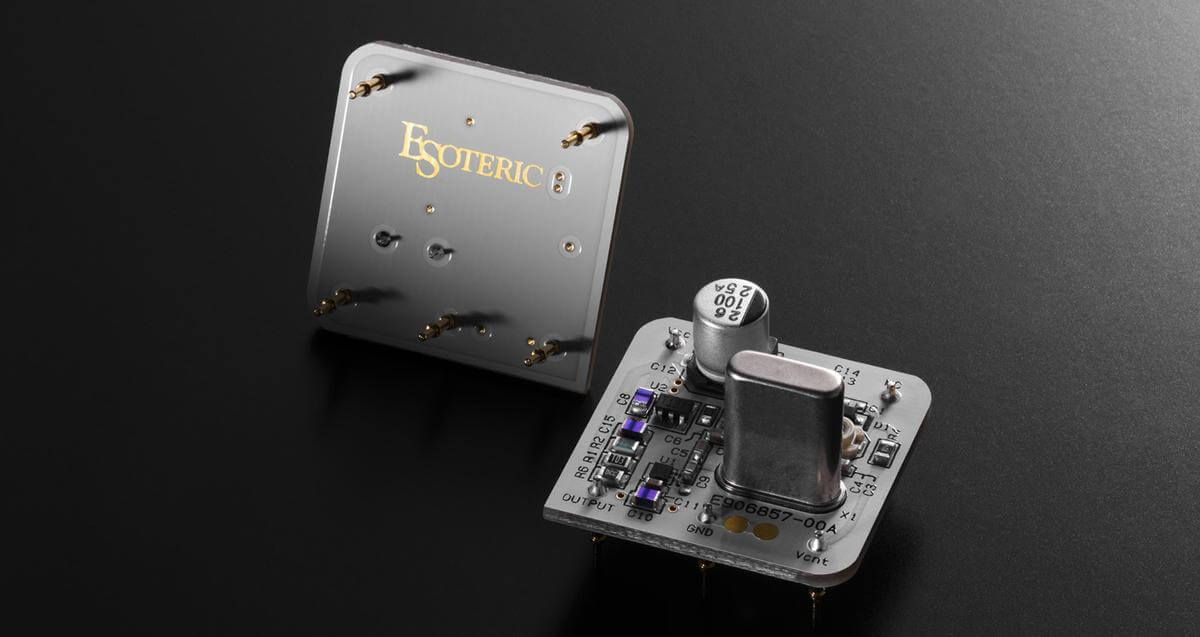

Clocking Precision with In-House Discrete OCXO

A dedicated Master Sound Discrete Clock inside the K-03XD SE draws from the Grandioso G1X reference oscillator, employing a large crystal and custom discrete circuitry for internal clocking precision. This in-house OCXO design exceeds typical off-the-shelf modules in timing accuracy, resulting in a noticeable improvement in musical flow and temporal integrity.

The unit supports external clock synchronisation, enabling connection to Esoteric G Series 10MHz master clocks for enhanced jitter suppression and rhythmic refinement across all digital playback.

Esoteric-HCLD Output for Ultra-Fast Signal Transmission

The HCLD (High Current Line Driver) output stage of the K-03XD SE CD/SACD player operates with an extraordinary slew rate of 2,000V/µs. This circuit supports instantaneous signal transients and preserves the full energy of high-resolution content. It’s designed to handle rapid dynamic shifts and complex musical passages without signal degradation or compression.

Esoteric’s ES-Link Analog current transmission further elevates output performance. By sending 100x more current than traditional voltage-driven outputs, it’s inherently resistant to cable impedance and noise. This keeps the connection between player and amplifier as transparent and impactful as possible, preserving musical intent and expression.

USB DAC Functionality and Digital Processing Versatility

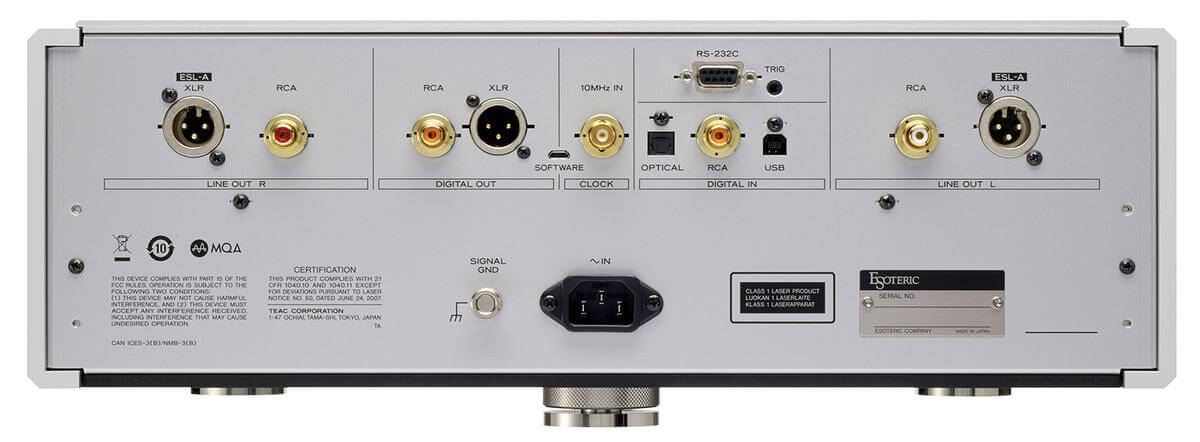

With USB-B, optical, and coaxial digital inputs, the K-03XD SE functions as a standalone high-resolution DAC. USB asynchronous support allows 22.5MHz DSD input from a computer transport or network streamer. Its internal digital processing suite includes PCM upsampling (2/4/8/16×) and PCM-to-DSD conversion, giving listeners total flexibility in tailoring the playback format to their preference.

This versatility allows the K-03XD SE CD player to integrate seamlessly into complex digital audio systems, expanding its utility beyond physical media playback into a central role in a high-end digital streaming chain.

Internal Architecture Prioritises Signal Purity and Isolation

The K-03XD SE’s dual-layer chassis architecture separates audio circuitry on the upper level from power transformers and supply circuits on the lower level. This arrangement limits magnetic interference and vibrational crossover, while also shortening signal paths for faster, cleaner current delivery.

All elements—from the layout of circuit boards to the soldering environment—are optimised for sonic transparency. Esoteric's in-house production facility, using aerospace and medical-grade cleanroom standards, ensures every component is soldered under oxygen-free conditions for maximum longevity and signal fidelity.

Discrete Engineering Captures Musical Soul with Precision

Esoteric K-03XD SE represents the culmination of decades of audio innovation, with its handcrafted circuits, ultra-stable VRDS-ATLAS disc transport, dual transformer power, and discreet high-performance DAC. Designed for those who demand not just sonic accuracy but emotional impact, this Super Audio CD/CD player transforms digital music into a compelling, immersive experience.
