Lehmann Audio Black Cube SE II SV Edition Phono Preamplifier

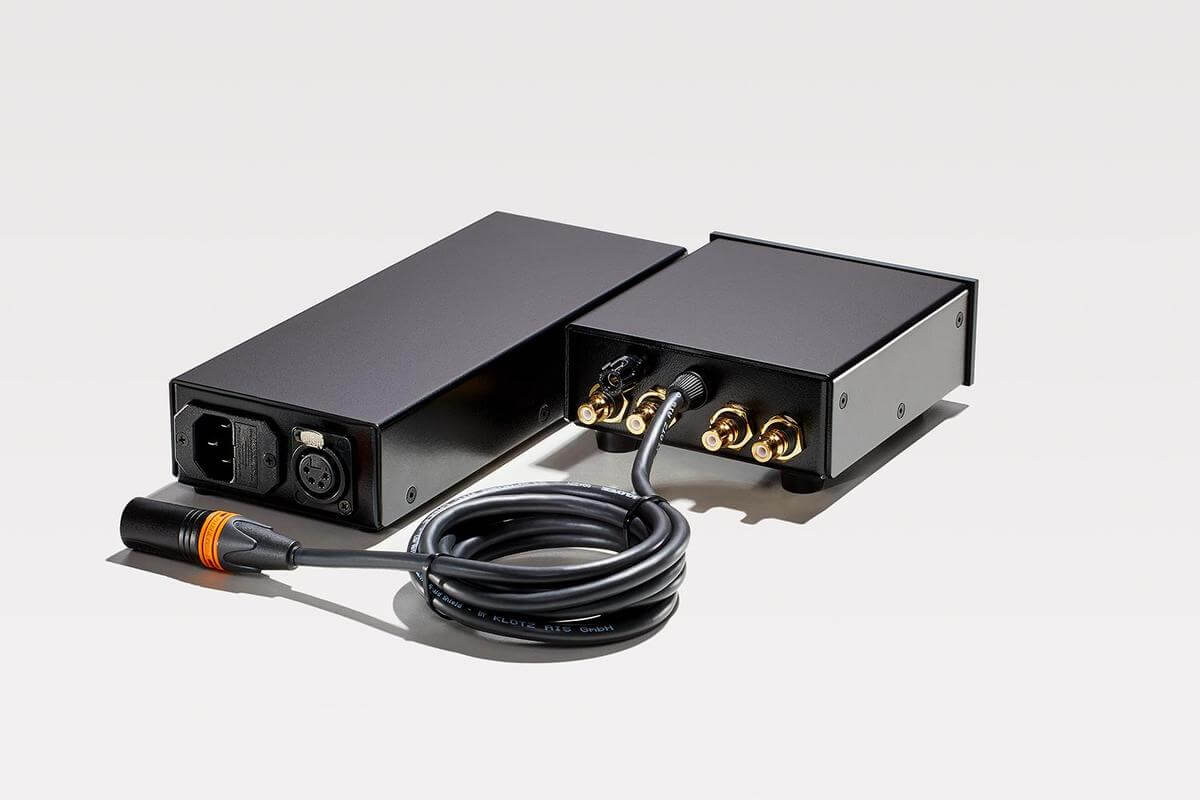

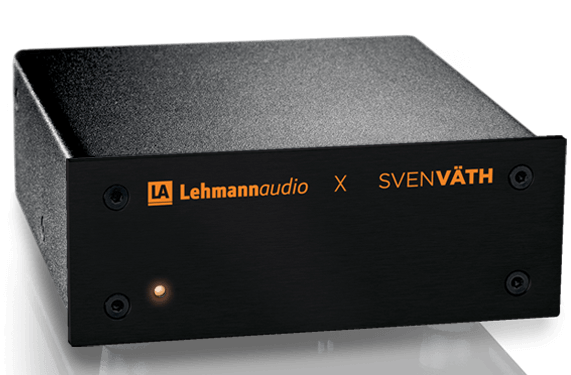

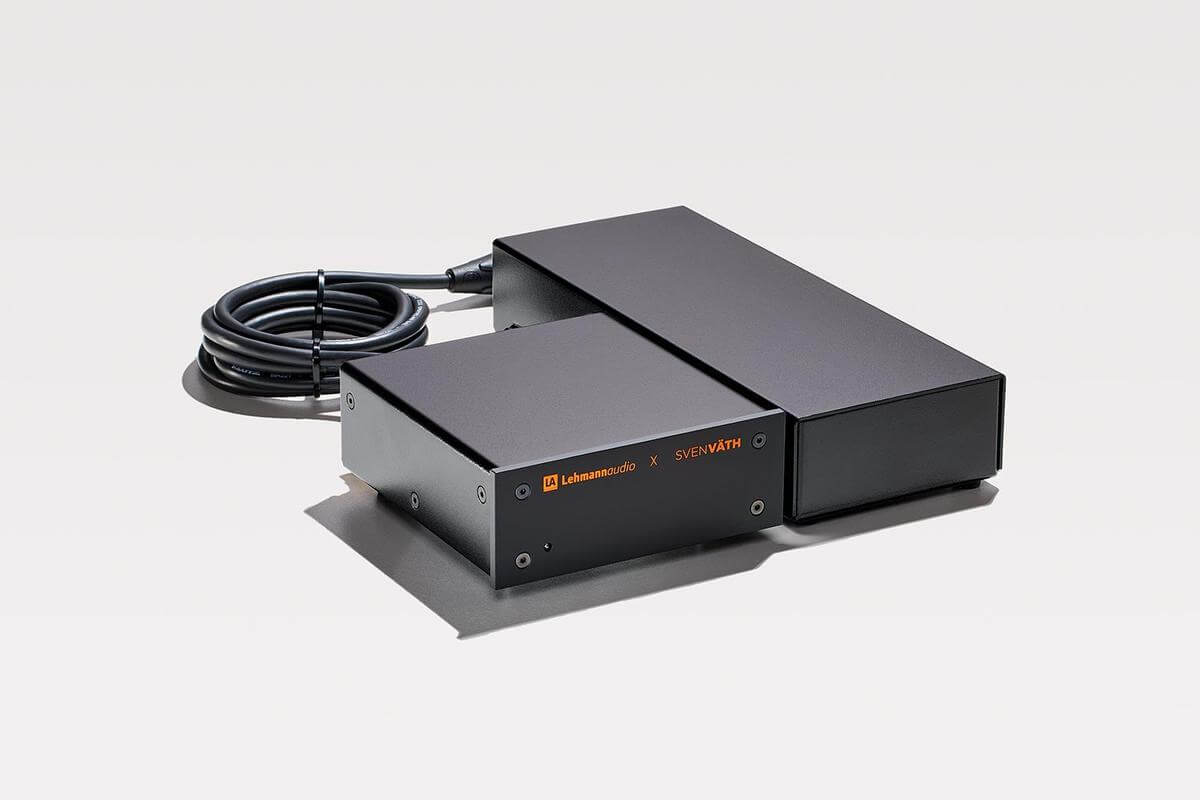

Lehmann Audio Black Cube SE II SV Edition is a special collaboration with legendary DJ Sven Väth, created as a refined evolution of the award-winning SE II phono stage. Fitted with Mundorf capacitors in the output stage, it improves transient reproduction, clarity, and spatial realism, making both powerful beats and subtle textures sound more lifelike. The SV Edition features a matte black faceplate with orange logo print, an orange LED power indicator, and a custom Neutrik XLR plug with gold-plated contacts and orange accent ring. Combining audiophile precision with distinctive aesthetics, it offers an emotionally charged listening experience tailored for vinyl enthusiasts who value both sonic truth and expressive design.
Specifications
Lehmann Audio Black Cube SE II SV Edition Phono Preamplifier
Specification | Value |
---|---|
Model |
Black Cube SE II SV Edition |
Sensitivity for output level |
775 mV / 0 dB (with activated high gain switch) |
Gain 1 khz mm |
46 dB |
Gain 1 khz mc |
66 dB |
Maximum input level 1 khz mm |
45 mV |
Maximum input level 1 khz mc |
4.5 mV |
Signal to noise ratio (rms unweighted) mm |
71 dB |
Signal to noise ratio (rms unweighted) mc |
63 dB |
Input level for snr mm |
3.8 mV / 1 kHz |
Input level for snr mc |
0.38 mV / 1 kHz |
Gain settings |
36 dB, 46 dB, 56 dB, 66 dB |
Channel separation |
> 80 dB at 10 kHz |
Input impedance |
47 kohms, 1 kohm, 100 ohms |
Custom load slots |
1 x custom load, 1 x hardwire slot |
Output impedance |
47 ohms |
Input capacitance |
100 pF |
Channel mismatch |
typ. 0.5 dB |
Bass filter |
16 settings between 7 Hz and approx. 90 Hz |
Power consumption |
< 3 W |
Netzspannung |
240 V AC |
Sicherung |
250 mA T |
Outer dimensions audio section |
114 mm x 124 mm x 50 mm |
Outer dimensions pwx power supply |
93 mm x 233 mm x 45 mm |
Weight audio section |
0.6 kg netto |
Weight pwx power supply |
1.0 kg netto |
