Brand: Lehmann Audio

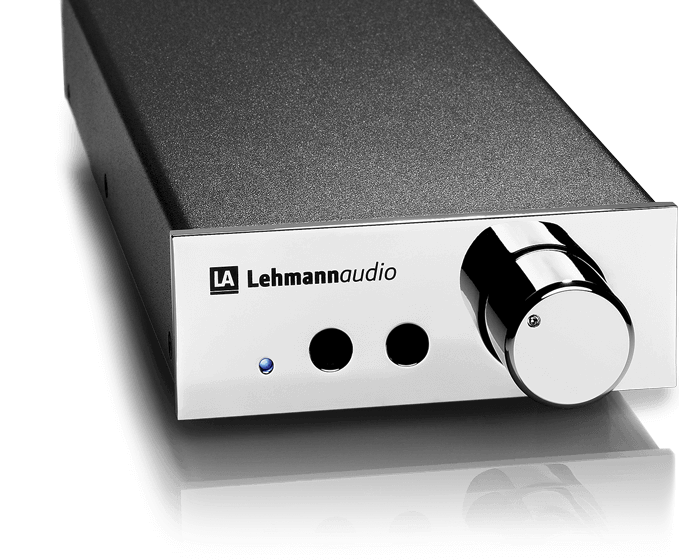

Lehmann Audio Linear USB II Headphone Amplifier Streaming Preamplifier
The Lehmannaudio Linear USB II is a high-end headphone amplifier and USB DAC designed for audiophiles seeking reference-class sound quality. It features a 384 kHz / 32-bit ESS Sabre DAC, Class A analogue amplification, and Low-Z Copper PCB for ultra-clean signal paths. With selectable gain settings, dual headphone outputs, and streaming preamp capability, it delivers powerful, natural audio from PCs, Macs, or mobile devices. Built in Germany, this compact, precision-engineered device is ideal for both critical listening and premium desktop setups.
To secure a unit, please enquire directly regarding current availability, as lead times may vary.
Specifications
Lehmann Audio Linear USB II Headphone Amplifier Streaming Preamplifier
Specification | Value |
---|---|
Product |
Linear USB II |
Input impedance |
47 kohms |
Maximum gain |
0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
Frequency response |
10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
Signal to noise ratio |
> 100 dB at gain 0 dB |
Thd |
< 0.001 % at 6 mW/300 ohms |
Channel separation |
> 80 dB at 10 kHz |
Output power |
400 mW/60 ohms, 200 mW/300 ohms |
Output impedance |
pre-out 50 ohms, phones out 5 ohms |

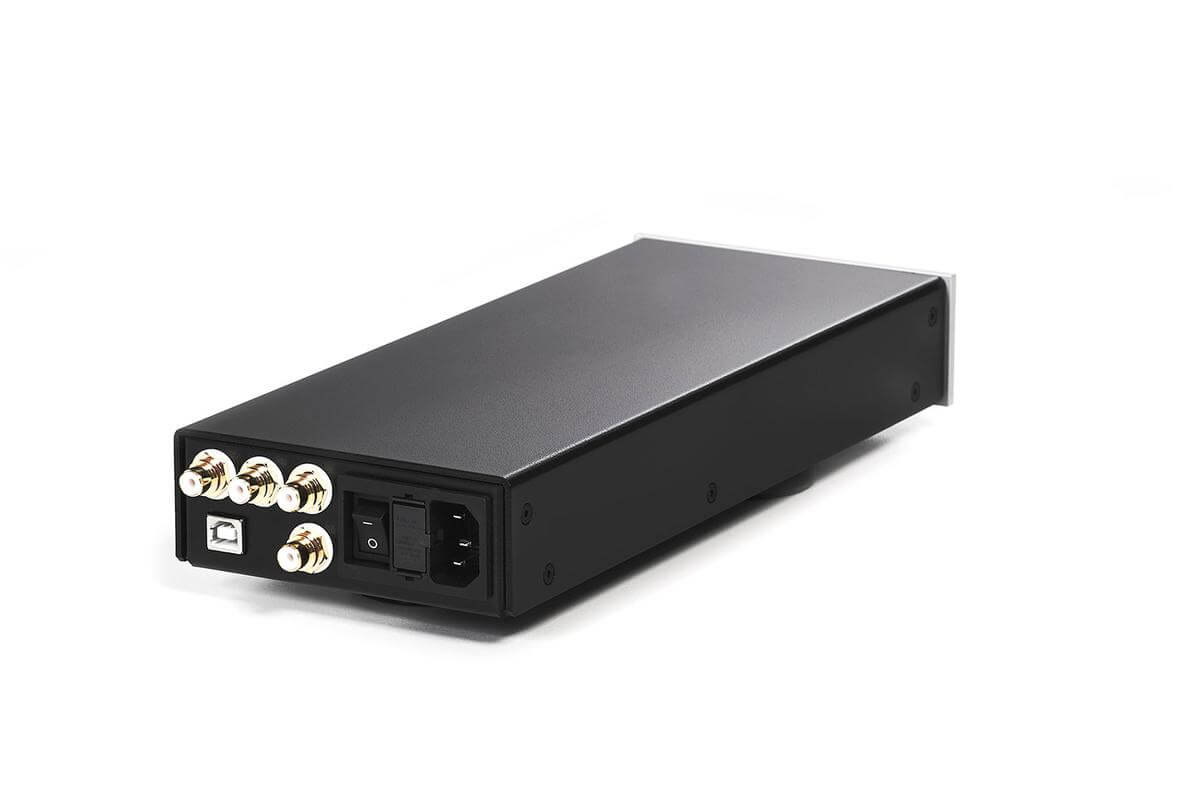

Connectors audio |
Neutrik headphone jacks with gold plated contacts, 1 x pre-out, 2 x phones out, gold plated RCA sockets with teflon insulation |
Power consumption |
15 W through internal, regulated power supply |
Special feature analogue section |
PC board in Low-Z Copper technology, vibration-absorbing 3S Device Feet |
Outer dimensions w x d x h |
110 mm x 280 mm x 44 mm (4.3 x 11 x 2 in.) |
Weight |
1.5 kg (3.3 lbs.) net |
Digital inputs |
1 x USB B |
Sampling rate |
up to 384 Khz |
Resolution |
up to 32 bits |
Formats |
PCM, DOP 128, FLAC, MP3, WAV |
Chipset |
ESS Sabre K2M |
Analogue filter |
Silver Mica capacitators |
Max. output level dac |
1.8 V eff. |
Special feature dac |
The analogue input is automatically activated when no digital signal is recognised |
Product Details

Lehmann Audio Linear USB II Headphone Amplifier Streaming Preamplifier
Sale price$4,080.00 AUD
