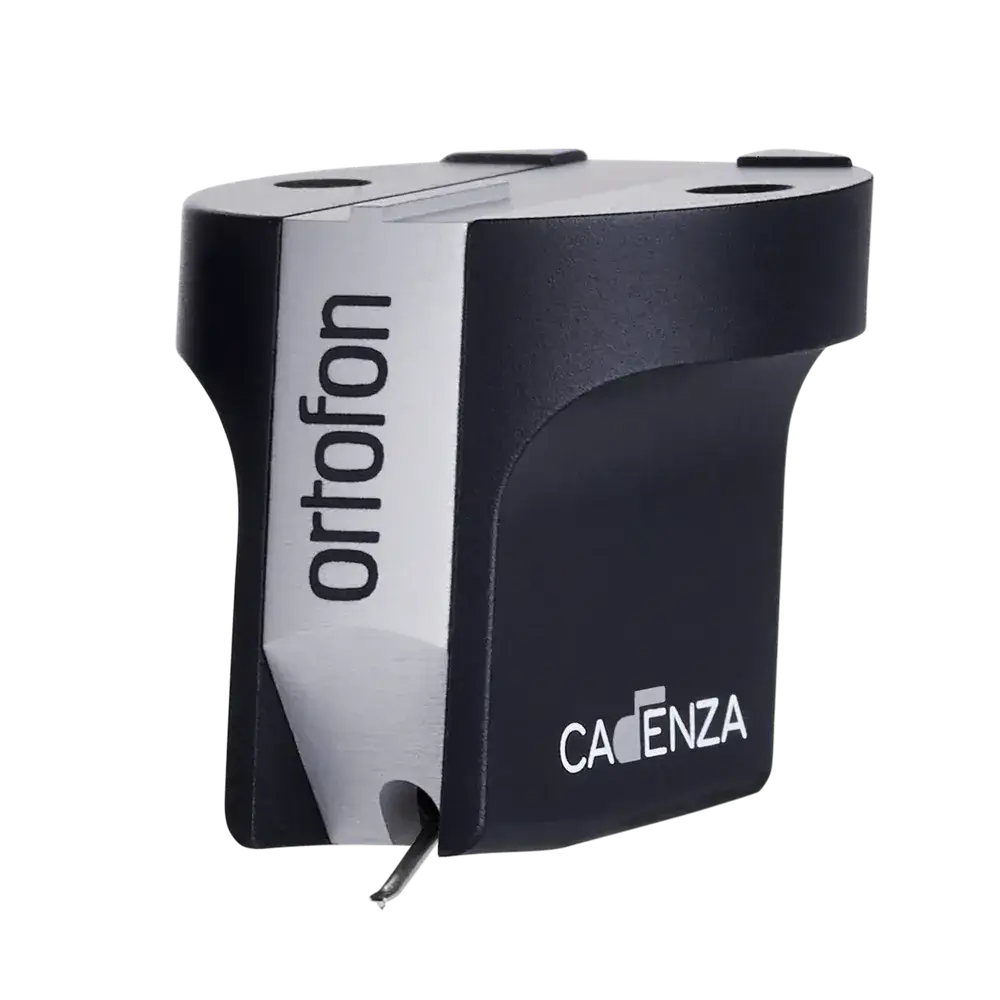

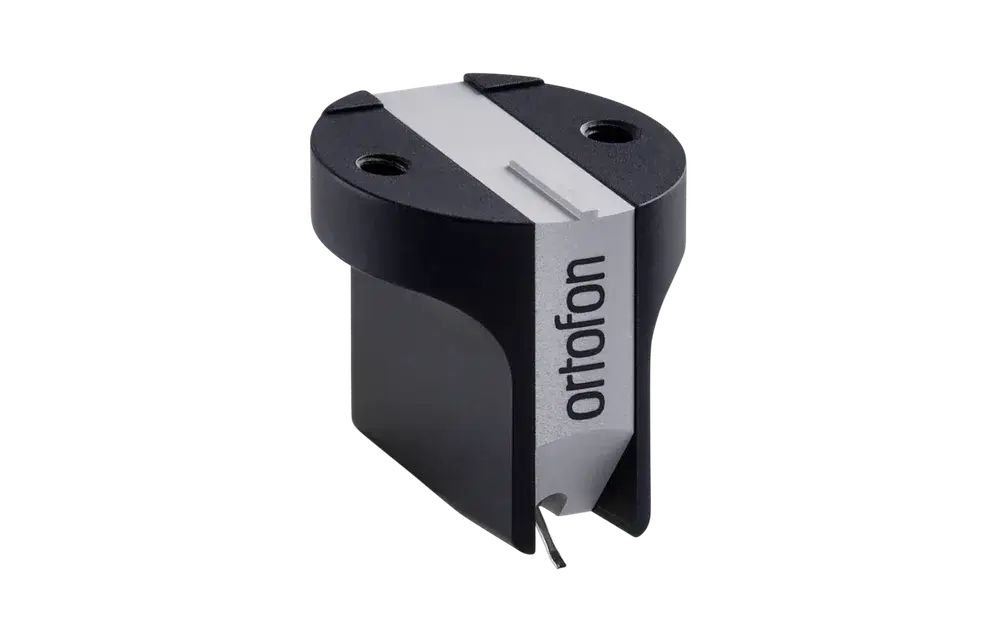

Ortofon MC Cadenza Mono Moving Coil Cartridge

What makes the MC Cadenza Mono different from a stereo cartridge?

The MC Cadenza Mono is a true mono moving coil cartridge, built specifically for mono microgroove records rather than adapted from a stereo design. It shares its internal build with the stereo Cadenza Red, but Ortofon has adjusted the generator and output for mono playback rather than reusing stereo tuning. Its channel separation is specified as pure mono, so the cartridge reproduces a single combined signal instead of tracing left and right information separately. That matters for anyone who owns older mono pressings, or newer mono microgroove reissues, because a stereo cartridge picks up vertical groove noise that a mono groove was never cut to carry. A dedicated mono generator avoids reading that noise in the first place, which is the reason collectors with a meaningful mono collection choose a mono-specific cartridge instead of a stereo model switched to mono on the preamp.

Will the MC Cadenza Mono match your tonearm?

The MC Cadenza Mono carries a dynamic lateral compliance of 12 µm/mN, which places it in the moderate compliance band rather than the very low or very high extremes. Cartridge compliance and tonearm mass together set the resonance frequency of the arm and cartridge as a system, and that resonance needs to land between 7 Hz and 12 Hz for the pairing to track correctly; frequencies outside roughly 6.5 Hz to 14 Hz become questionable, and the system may not perform reliably. Because moderate compliance cartridges like the MC Cadenza Mono pair well with low mass arms, buyers should check their tonearm's effective mass before ordering rather than assuming any arm will suit it. A low mass arm is generally one rated at 10 grams or below; heavier moderate mass arms in the 11 to 25 gram range are built more for lower compliance cartridges. Matching compliance to arm mass correctly is what keeps the stylus properly damped in the groove, rather than either overdamped or underdamped.

How do you set up the MC Cadenza Mono for accurate tracking?

The MC Cadenza Mono has a recommended tracking force of 2.5 grams, within a working range of 2.2 to 2.7 grams, and a tracking angle of 20 degrees, so the tonearm's stylus force gauge and vertical tracking angle need to be set to those figures during installation rather than left at a stereo cartridge's default. Its internal impedance is 5 Ohm, and Ortofon specifies a recommended load impedance of 50 to 500 Ohm at the phono stage, so the input loading on the phono preamp should sit within that window to avoid frequency response errors at the top and bottom of the audio band. The connection pins are wired so that both pairs of terminals carry the same mono signal, which simplifies wiring at the headshell because either pair can be used without affecting the output.

Why does the stylus shape matter for mono records?

The MC Cadenza Mono uses a nude fine line diamond with a tip radius of r/R 8/40, mounted directly rather than bonded to a metal shank. A nude diamond weighs less than a tipped one, so the stylus assembly responds faster to groove modulation, which supports finer detail retrieval and lower distortion than a tipped stylus of similar profile would achieve. The fine line cut also increases the diamond's contact area with the groove wall compared with a simple spherical stylus, letting it trace closer to the profile of the cutting stylus originally used to cut the record. On a mono pressing, that combination of a light nude diamond and a fine line profile is what lets the cartridge follow a well-worn or heavily played groove accurately, which is relevant given how much older mono vinyl has typically been played.

What's inside the MC Cadenza Mono's coil system?

The MC Cadenza Mono's coil system uses high-purity silver coil wire, drawn from 6NX 99.9999 percent pure silver, wound onto the armature using an improved winding process that Ortofon states improves channel balance. The cantilever is aluminium, and the cartridge body combines aluminium and stainless steel, finished in a natural and black colourway. At 10.7 grams, the cartridge sits within the moderate mass range most tonearms are designed around, which is one of the factors feeding into the compliance and resonance matching described above rather than a separate consideration on its own.

Where does the MC Cadenza Mono sit within Ortofon's range?

The MC Cadenza Mono is one of five cartridges in Ortofon's Cadenza series, sitting alongside stereo models such as the MC Cadenza Black and MC Cadenza Blue, each with its own tuning within the same series. Buyers who need a mono cartridge but not the Cadenza series' construction have two other mono options from Ortofon to weigh it against: the MC Quintet Mono sits below it as a simpler, lower cost mono moving coil cartridge, while the MC A Mono sits above it as a higher specification mono cartridge for buyers building a dedicated, no-compromise mono replay system. Choosing between them comes down to how large and how valuable a mono collection is, and how much of the system budget a buyer wants to dedicate to mono playback specifically, since none of the three can substitute for a stereo cartridge on stereo pressings.
