Rega Fono MC MK4 MC Phono Stage

Choosing the Rega Fono MC MK4: who it's for and what sets it apart

The Rega Fono MC MK4 is a dedicated moving coil phono stage built to extract the full signal from any low output MC cartridge, not only those from Rega's own range. Its factory default settings — 100 Ω input loading resistance, 1000 pF capacitance, and high gain — are matched to Rega's current MC models including the Ania, Ania Pro, Apheta 3, and Aphelion 2, which means it works straight from the box within a Rega system without any manual configuration. For cartridges from third-party manufacturers, rear-panel DIP switches allow independent adjustment of input loading resistance, capacitance, and gain, extending compatibility to a wide range of low output MC designs beyond the Rega range.

Is the Rega Fono MC MK4 the right choice within Rega's phono stage lineup?

The Rega Fono MC MK4 is positioned as the dedicated MC entry point within Rega's phono stage range, which spans from the Fono Mini A2D and Fono MM MK5 at the more accessible end through to the AOS MC and Aura MC Ref above it. The choice between the Fono MC MK4 and the Fono MM MK5 comes down to cartridge type: the MM variant handles moving magnet and high-output moving iron cartridges, while this unit is built specifically for the lower output voltages that low output MC cartridges generate. Those who already own or plan to buy a Rega MC cartridge — or who are building an MC-based analogue front end — will find this the natural starting point in the range before stepping up to the AOS MC or Aura MC Ref.

What does the discrete FET input stage mean for cartridge compatibility?

The Rega Fono MC MK4 uses a Linear Systems LSK389 FET in a fully discrete input stage. The reason this matters is that the high input impedance characteristic of FET devices means the amplifier circuit itself places negligible loading on the cartridge. In a low output MC design, the signal from the generator coil is already very small, so any additional loading imposed by the amplifier's own input circuitry degrades the signal before amplification begins. By using a FET input with its inherently high impedance, the Fono MC MK4 avoids this interaction, allowing the cartridge's loading to be set precisely and independently through the DIP switches rather than being altered by the circuit itself.

What gain and loading adjustments are available, and how are they set?

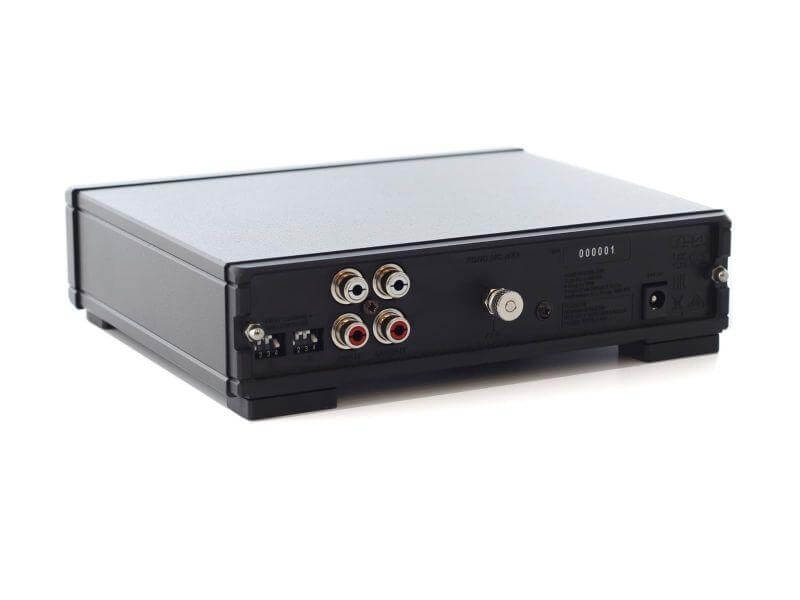

The Rega Fono MC MK4 offers two gain settings — 63.5 dB and 69.5 dB at 1 kHz — along with four resistance loading options (400 Ω, 100 Ω, 150 Ω, and 70 Ω) and two capacitance settings (1000 pF and 4300 pF), all selected via DIP switches on the rear panel. The lower gain setting suits cartridges with a relatively higher output within the low output MC range, while the higher setting is intended for very low output designs. Resistance loading affects how the cartridge's generator coil is terminated, influencing the impedance it sees from the circuit. Placing the switches on the rear panel means adjustments can be made without opening the unit or using internal jumpers — a practical consideration when matching the stage to a new cartridge.

How accurately does it apply RIAA equalisation?

The Rega Fono MC MK4 uses a MUSE operational amplifier in the RIAA equalisation stage, with polypropylene capacitors in both the signal path and the equalisation circuits. RIAA equalisation is required with every phono stage because vinyl records are cut with bass frequencies reduced and treble frequencies boosted; the playback stage must invert this curve accurately to restore a flat frequency response. The unit's RIAA accuracy is specified at better than ±0.2 dB from 100 Hz to 100 kHz, which reflects the precision of this correction across the audible range. The polypropylene capacitors in the equalisation network contribute to this accuracy through their stable electrical characteristics. The circuit design in the Fono MC MK4 stems from development work carried out on Rega's Aria phono amplifier, which sits higher in the company's range.

Does the Fono MC MK4 integrate visually with other current Rega components?

The Rega Fono MC MK4 shares the same aluminium casework as the Fono MM MK5 phono stage and the Neo MK2 PSU, giving it a common physical footprint and visual language with other current Rega electronics. Buyers assembling a Rega-based system — turntable, power supply, phono stage, and amplifier — can do so without visual inconsistency between different generations of the range. The redesigned case brings the Fono MC MK4 in line with Rega's latest range of electronic components rather than the previous case style.
