Ortofon MC X10 Moving Coil Cartridge

What sets the Ortofon MC X10 apart from typical entry-level MC cartridges?

The Ortofon MC X10 is a moving coil cartridge built around coils wound with high-purity silver wire, a material choice that isn't standard at this end of the MC category. Silver's low resistance carries the cartridge's small generated signal with less interference, which is why Ortofon uses it across the whole MC X Series rather than reserving it for higher-tier models. The MC X10 pairs this coil wire with an internal impedance of 6 Ω and an output voltage of 0.4 mV at 1 kHz, so it needs a phono stage with adequate MC gain and a recommended load resistance above 50 Ω to perform as intended. It's this combination of silver coils and a dedicated new magnet system, rather than one component alone, that sets the MC X10 apart within its price bracket.

How does the pure silver coil system affect signal clarity?

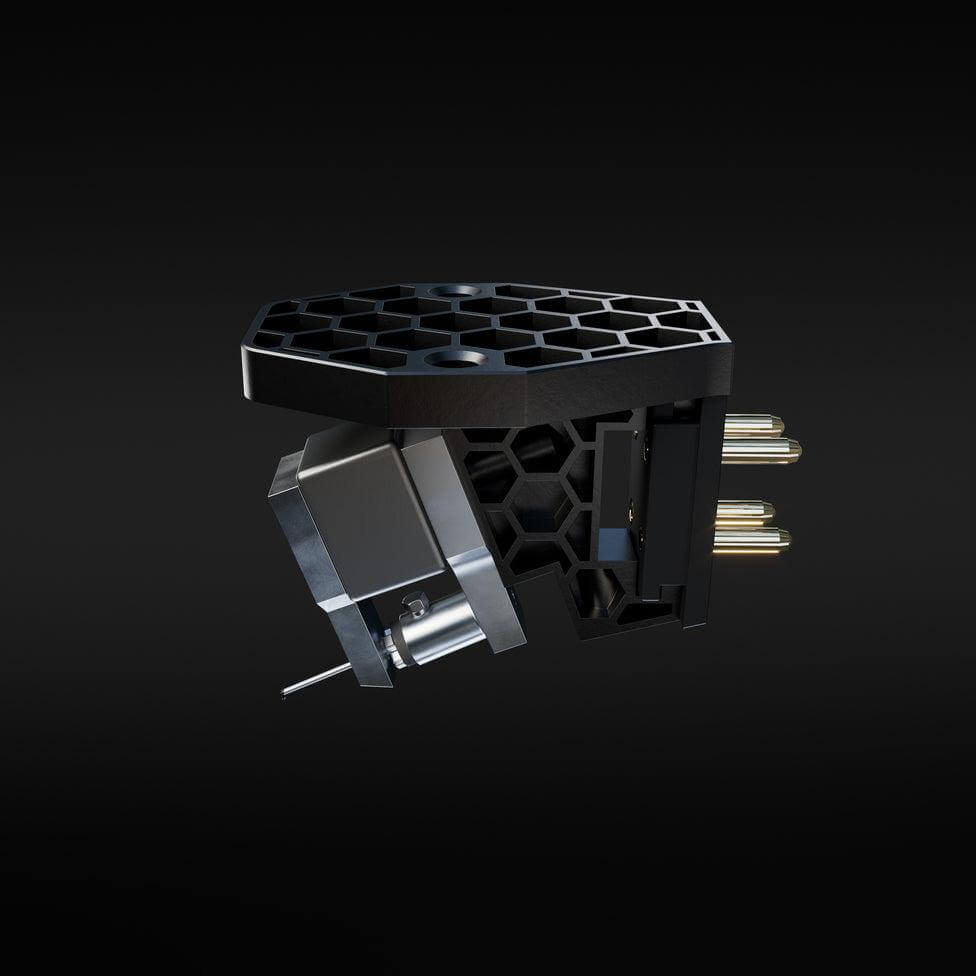

The MC X10's signal clarity is shaped by the relationship between its coil material and its magnet system. Ortofon developed a magnet system for the MC X Series with a one-piece pole cylinder integrated into a rear magnet yoke, engineered to increase magnetic efficiency. Paired with the pure silver coils, this arrangement keeps the signal path clean from the moment the stylus moves through the groove to the point it leaves the cartridge pins. Channel separation reaches more than 24 dB at 1 kHz, and channel balance stays within 0.5 dB at the same frequency — figures that depend directly on how evenly the coil and magnet geometry are matched across both channels.

Which tonearms match well with the MC X10's compliance rating?

The Ortofon MC X10 is rated at a dynamic lateral compliance of 13 μm/mN, which places it in the moderate compliance range. Moderate compliance cartridges pair best with moderate mass tonearms — generally those with an effective mass between 11 and 25 grams, such as the SME IV or Triplanar. Mounting the MC X10 on a very low mass arm, or on a high mass arm above 25 grams, risks pushing the tonearm/cartridge system's resonance frequency outside its working range. Ortofon recommends keeping this resonance frequency between 7 and 12 Hz, with 10 Hz as the target, using the formula F = 1000 : (2 × π × √(M × C)), where M is the combined mass of the cartridge, headshell and tonearm, and C is the cartridge's compliance. It's worth checking your tonearm's effective mass against this figure before ordering, since a mismatch affects tracking rather than just tonal balance.

What should you check before installing this cartridge?

The Ortofon MC X10 is installed by setting tracking force, checking load resistance, and confirming tonearm compatibility before the first play. Ortofon specifies a recommended tracking force of 2.0 grams and a stylus tip radius of 8/18 μm for the elliptical diamond, both of which need to be set accurately on the headshell or tonearm to avoid uneven groove wear. The cartridge weighs 8.6 grams, a figure that feeds into the resonance frequency calculation alongside headshell mass, so it's worth weighing your headshell separately if you're recalculating for a specific arm. A phono stage set to accept the MC X10's 0.4 mV output and a load resistance above 50 Ω completes the signal chain; getting either of these wrong results in a quiet or unbalanced signal rather than a fault with the cartridge itself.

Who is the Ortofon MC X10 designed for?

The Ortofon MC X10 is positioned as an entry point into moving coil playback for buyers who want the coil and magnet characteristics of MC design without the cost of the more advanced engineering found in premium MC ranges. Its aluminium cantilever and elliptical diamond stylus keep the moving mass low enough for accurate tracking while staying straightforward to produce. That suits listeners building a first MC-based system, or those moving up from a moving magnet cartridge and wanting the tighter tracking and detail retrieval that a well-matched MC design offers, provided their phono stage and tonearm meet the compatibility points above.

How do the rubber dampers contribute to tracking stability?

The MC X10's tracking stability rests as much on its custom-developed rubber dampers as on its magnet or coil design. Ortofon produces these rubber compounds in-house specifically for the MC X Series and uses them to control the physical movement of the coils as the stylus follows the groove. This damping limits unwanted vibration and keeps coil motion precise, which supports accurate tracking at the recommended 2.0 gram tracking force and helps reduce distortion. The stylus suspension is an Ortofon exclusive design, working alongside this damping system to keep the cantilever's movement controlled.

What is the cartridge body made from, and why does it matter?

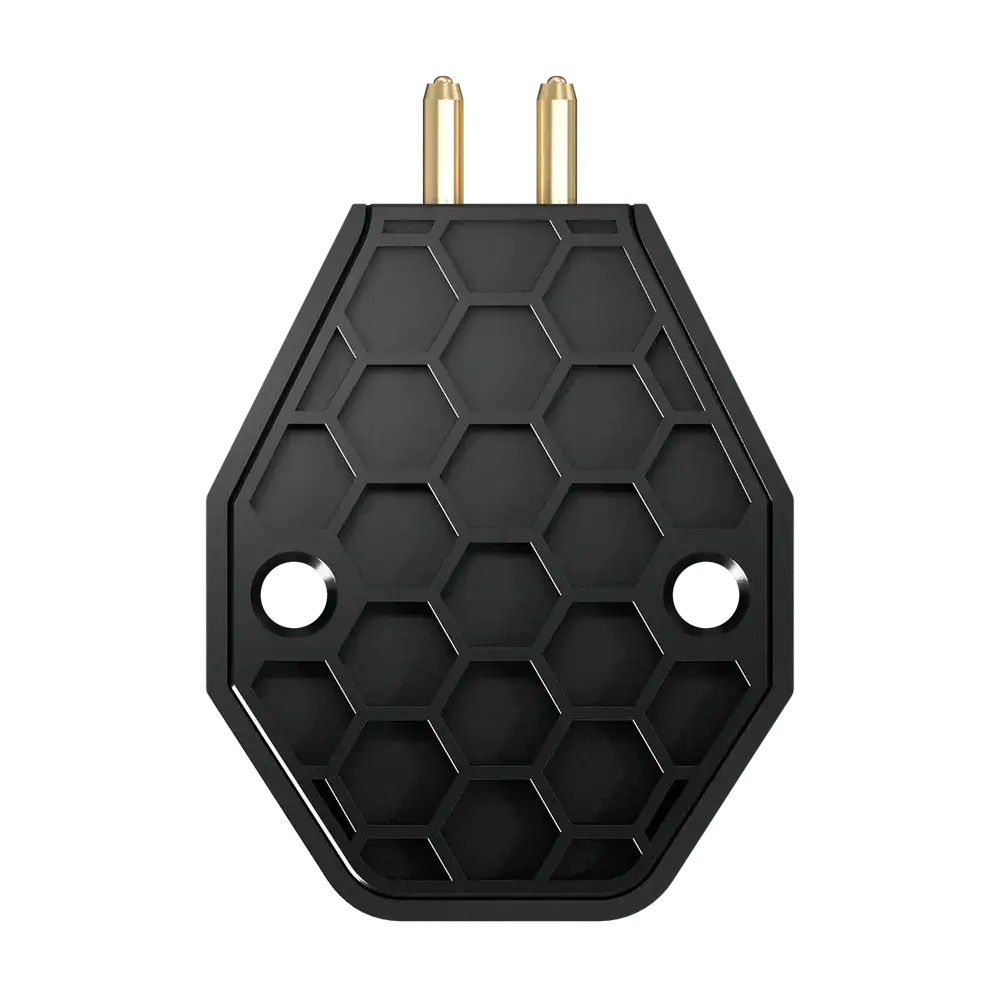

The MC X10's body is a honeycomb-structured stainless steel frame, produced through Metal Injection Moulding (MIM) rather than conventional casting or machining. MIM construction lets Ortofon build a honeycomb internal structure that increases mechanical stability without adding unnecessary mass to the 8.6 gram cartridge — which matters, given how mass feeds into the tonearm resonance calculation described above. After moulding and sintering, Ortofon applies a Physical Vapor Deposition (PVD) surface treatment to the body, intended to enhance surface appearance and maintain material integrity over time. The finished cartridge is finished in black.

Where does the MC X10 sit within Ortofon's cartridge range?

The Ortofon MC X10 is the entry-level model in Ortofon's MC X Series, Ortofon's line of moving coil cartridges built around silver coil wire, the newly developed magnet system, and MIM honeycomb body construction described above. Buyers comparing options across Ortofon's wider range are typically choosing between moving magnet cartridges, such as the 2M series, and moving coil models like the MC X10. A moving magnet cartridge suits buyers who want the option to replace a worn stylus themselves without swapping the whole cartridge, while the MC X10 suits buyers who prioritise the coil and magnet architecture of MC design and aren't as concerned with independent stylus replacement. Within the MC X Series, the MC X10 gives access to the range's core silver-coil and magnet engineering, making it the natural starting point for buyers wanting that architecture without committing to a higher-specification model first.
