QUAD 303 Power Amplifier

Why Choose the QUAD 303 Power Amplifier?

The QUAD 303 is a stereo power amplifier built as a modern reinterpretation of one of the most recognisable amplifiers in hi-fi history. Buyers choosing between vintage QUAD units, modern class AB designs, and other stereo power amplifiers in this bracket need to understand what has changed under the skin, what the amplifier can drive, and how it fits into a wider QUAD or mixed-brand system. The sections below answer those questions directly, using only the specifications and engineering detail QUAD has published for this model.

What Makes the Amplifier Different From the Original Design?

The QUAD 303 is a revision of its predecessor's output stage topology, and that's the main source of difference between the two models. Earlier versions of the amplifier used a quasi-complementary output stage, a workaround that QUAD adopted because true complementary NPN and PNP power transistors weren't available when the original was designed. The new unit uses a fully complementary output stage instead. This gives the amplifier better linearity, a more stable static bias, and improved stability when it's driven with high voltage and large current, which matters most when the amplifier is asked to handle demanding transients rather than steady low-level signals. Premium power transistors extend this improvement, giving it gain linearity that helps reproduce the input signal accurately across a wider dynamic range. The design also carries over QUAD's original intent for power output: honest, conservatively rated performance rather than headline wattage, though the new model delivers a modest increase over the classic unit's 45W rating.

Which Speakers Can the QUAD 303 Drive?

The QUAD 303 is rated at 50W into 8 ohms and 70W into 4 ohms, both measured at less than 1% THD, with a maximum output current of 10A. That current rating is the practical figure for buyers to focus on: the original amplifier was known to struggle with lower-impedance loads, and this revised output stage is specifically engineered to remove that limitation. As a result, it can drive difficult loads, including QUAD's own electrostatic loudspeakers, without the current-delivery problems that affected earlier units. It's intended for normal domestic use with speakers of moderate efficiency, though QUAD notes the same circuit topology has also seen use in broadcasting and recording studio environments where consistent, dependable output matters more than outright power.

How Does the Output Stage Control Distortion?

The QUAD 303 is fitted with the manufacturer's "symmetrical triples" output circuit, the design feature most responsible for its low-distortion performance. The triples arrangement creates a completely symmetrical output stage, which reduces distortion and makes the resting current independent of the output transistors' temperature. Because the current and voltage are both directly controlled by this circuit, the output transistors always operate within their ratings, giving the amplifier improved reliability without relying on elaborate protection circuitry. The measurable result is total harmonic distortion below 0.002% at 1kHz, a frequency response of 20Hz to 20kHz within ±0.3dB, and a signal-to-noise ratio above 108dB (A-weighted). These figures explain why it maintains its character under demanding dynamic conditions rather than only at low listening levels.

What Inputs and Outputs Does It Provide?

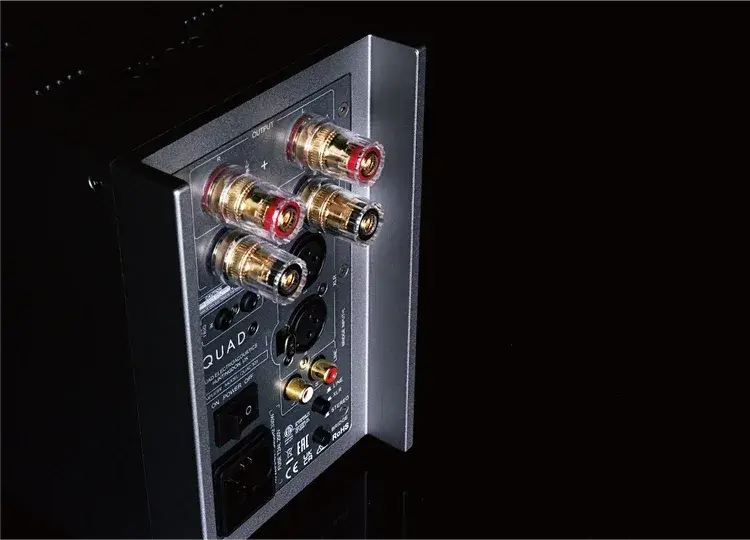

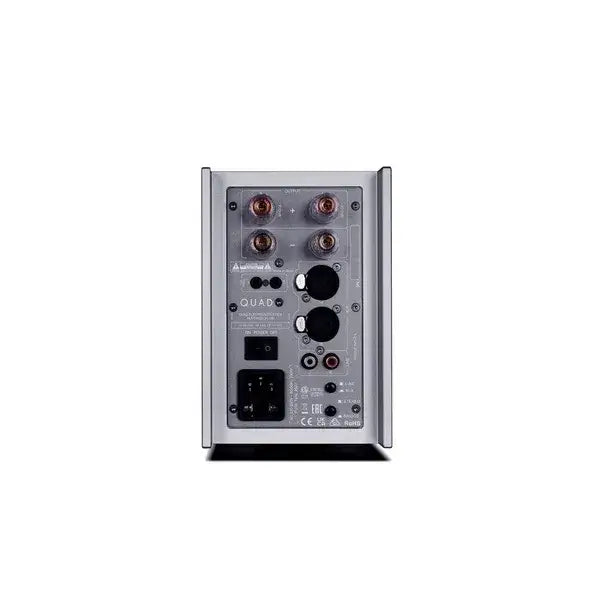

The QUAD 303 is equipped with one line input and one XLR input, so it can be matched to a preamplifier or source using either single-ended RCA or balanced XLR connections. Input sensitivity is 700mVrms on the line input and 1.5Vrms on XLR, with input impedances of 15k ohms and 22k ohms respectively; a source or preamplifier needs to be checked against these figures to confirm a clean gain match, since the amplifier itself adds +29dB of gain. On the output side, there's a stereo speaker output alongside a 12V trigger input and a linked 12V trigger output, which lets the amplifier be switched on and off automatically alongside other trigger-compatible equipment in a system, and lets a second unit be daisy-chained from the first.

Can It Be Used in Bridged Mono Mode?

The QUAD 303 is fitted with a stereo/bridge mode selector, which lets a single unit be reconfigured to run as a mono-block power amplifier. In bridged mode, output rises to 140W into 8 ohms or 170W into 4 ohms. This is the relevant option for buyers who want to run a pair of units as monoblocks, one per channel, rather than a single unit in stereo, and it's a straightforward way to scale up power without changing amplifier families or losing the amplifier's low-distortion characteristics.

What's Included With the QUAD 303?

The QUAD 303 is supplied with a power cord, remote control, and user manual as standard accessories. The remote control is a practical point for buyers used to the original 303, which had no such facility, and it also fits with pairing the amplifier alongside a QUAD 33 preamplifier in the same system. Standby power consumption is under 0.5W, which keeps the running cost low for owners who leave the unit connected rather than switching it off between listening sessions.

How Is the Amplifier Constructed?

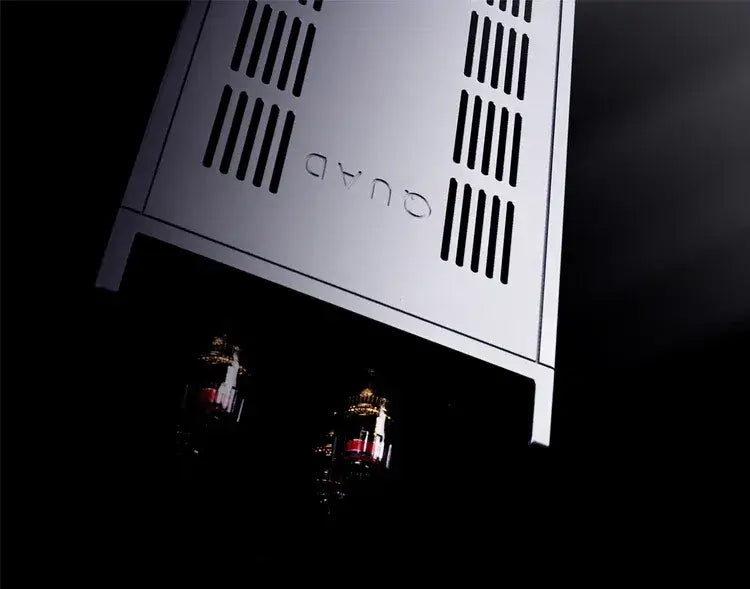

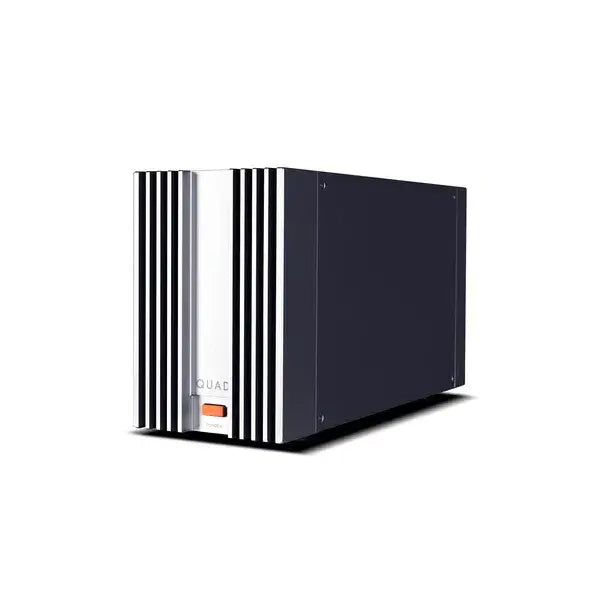

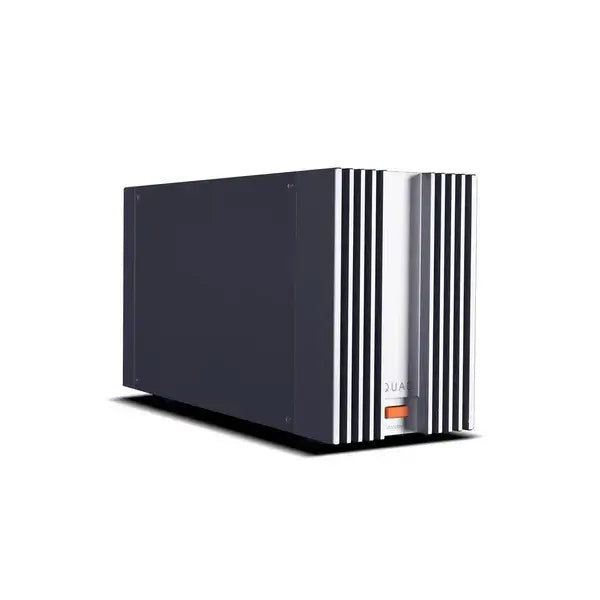

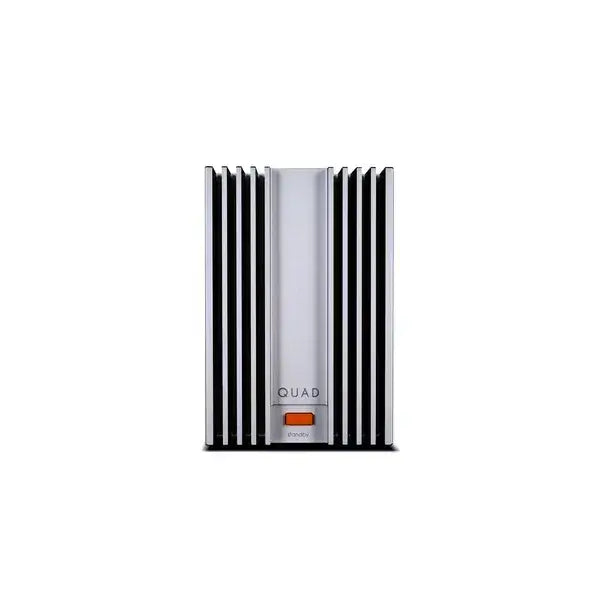

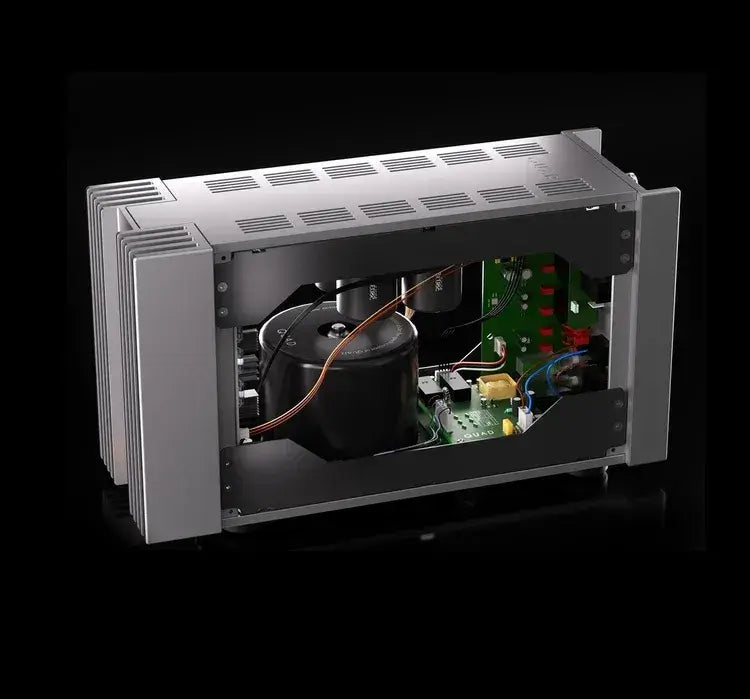

The QUAD 303 is built around a custom 200VA toroidal transformer, a power supply choice that supports the current demands of the triples output stage and the amplifier's 4-ohm performance. The chassis uses an anodised, CNC-routed heat sink on either side, and a tank-style housing that adds structural rigidity. This construction is intended to resist interference from external vibration, which matters for maintaining consistent electrical performance rather than for appearance alone. The finish is described as Classic QUAD Grey, keeping the amplifier's industrial design in line with the original 33 and 303 pairing that earned a Council of Industrial Design Award in 1969 and remains held in the Museum of Modern Art's collection.

Who Should Choose the QUAD 303 Over Other Amplifiers in the Range?

The QUAD 303 is the partner power amplifier to the QUAD 33 preamplifier, and buyers assembling a full QUAD system around that combination are the clearest fit for it. Compared with an original vintage QUAD 303, this version is the better choice for anyone who wants the same circuit philosophy without the quasi-complementary output stage's linearity compromises or its known difficulty with low-impedance loads; it also adds a remote control and 12V trigger integration that the vintage unit never had. For buyers running QUAD's electrostatic loudspeakers specifically, the increased output current is the deciding factor, since it removes the load-driving limitation that affected earlier QUAD amplifiers. Buyers who need more than stereo output from a single chassis, such as those building a mono-block pair, are served by the bridge mode rather than needing to move to a different QUAD model. Those who don't already own or plan to own a QUAD 33, or who need multiple line-level inputs rather than the single line and single XLR input offered here, may be better matched to a different amplifier in QUAD's range or a competing integrated design.
