The QUAD 33 Preamplifier: What Buyers Need to Know

The QUAD 33 is a dedicated pre-amplifier built to partner with a separate power amplifier rather than a built-in one, positioning it for buyers who want to build or expand a QUAD-based system stage by stage. It replaces the illustrious original 33, and its designers included Rob Flain and Paul McConville, QUAD's most experienced service engineers, alongside Jan Ertner, who has spent thirty years in QUAD design work. The 33 is aimed at listeners who want an analogue signal path with microprocessor-controlled convenience layered on top, rather than a fully digital or DSP-driven preamplifier.

What sets the QUAD 33 apart from other preamplifiers?

The QUAD 33 is fitted with fully balanced XLR inputs and outputs alongside its RCA connections, a feature the source material states sets it apart from other preamplifiers, including its own forefather model. This balanced circuitry gives buyers a way to run longer cable runs or connect balanced-output sources and power amplifiers with reduced susceptibility to interference, which matters most in larger rooms or systems where components sit some distance apart. The 33 also carries forward the Tilt control, a tone-shaping circuit unique to QUAD that most rival preamplifiers do not offer at all, since they typically rely on conventional bass and treble controls instead.

Is the QUAD 33 compatible with moving magnet and moving coil cartridges?

The QUAD 33 is fitted with a phono stage that switches between moving magnet and moving coil operation without any internal modification or board upgrade. Gain sits at 46dB for moving magnet cartridges and 63.5dB for moving coil cartridges, a wide enough spread to suit cartridges with low output coils as well as higher-output moving magnet designs. The input stage uses ultra-low noise audio op-amps paired with high slew rates, and the RIAA processing circuit runs through its own dual Bipolar/JFET operational amplifier. The JFET portion of that input stage keeps distortion low even during large output swings, which matters for buyers running cartridges that produce strong transient peaks, such as heavily modulated or dynamic vinyl pressings.

How does the QUAD 33 fit into a wider system?

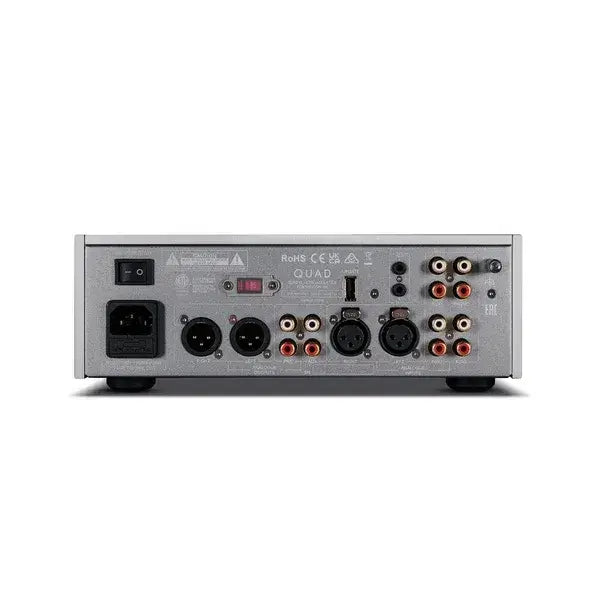

The QUAD 33 is designed to send loudspeakers their signal through a separate power amplifier, via dedicated stereo pre-outputs on both RCA line-level and balanced XLR. An additional AUX output extends this further, giving owners a second signal path from the same source selection without disturbing the main pre-out feed. On the input side, three RCA inputs, a balanced XLR pair, and the switchable phono input give buyers room to connect multiple sources without needing an external phono preamplifier.

What does the Tilt control do, and why would a buyer choose it over standard tone controls?

The QUAD 33 is equipped with a Tilt control developed from a design first created by QUAD founder Peter Walker, built on the premise that separate bass and treble dials are a clumsy way to adjust tonal balance. Rather than pushing bass and treble in isolation, the Tilt control rotates the entire audible frequency range around a 700Hz axis in 1dB steps, lifting treble while attenuating bass, or the reverse, in a single movement. This lets an owner compensate for a bright-sounding recording or a room with excessive low-end build-up without touching overall volume or adding audible colouration. QUAD carried this circuit into the 33's 1982 successor, the QUAD 34, and it remains exclusive to QUAD preamplifiers. Alongside Tilt, the 33 offers bass adjustment from -3dB to +3dB for smaller corrective changes, and a balance control; all three circuits share the same low-noise op-amps, electronic switches, and MELF low-temperature-coefficient metal film resistors, arranged as a negative feedback adjustment circuit to keep the corrections precise and repeatable.

How is the QUAD 33 designed for day-to-day operation?

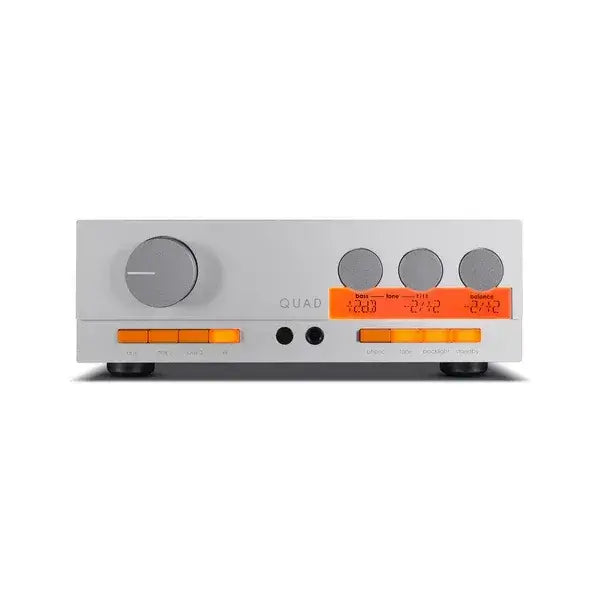

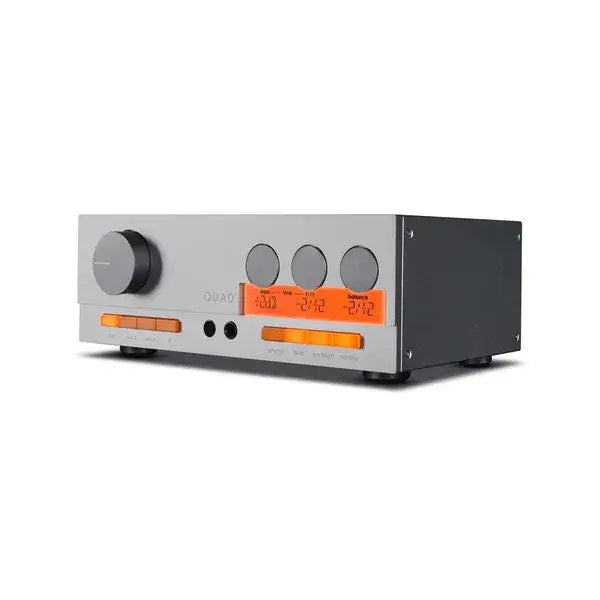

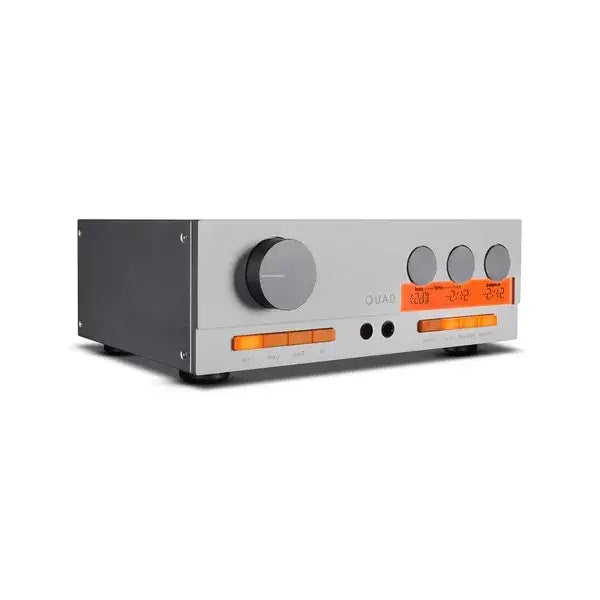

The QUAD 33 is built around a backlit LCD screen that displays the current input, mode, and adjustment values, with the same backlighting applied to each push button so the active selection is visible at a glance. Brightness and contrast for both the screen and buttons can be adjusted, or switched off entirely, giving owners direct control over how prominent the display is during use. Volume runs through a motorised ALPS potentiometer that stays in the analogue domain even though a microprocessor governs the adjustment, and the potentiometer rotates automatically when volume is changed from the remote control, so the physical dial always shows the true setting. Three endless rotary encoders sit alongside the volume control for quick access to the Tilt, bass, and balance settings described above.

How does the QUAD 33's power supply support its phono and line performance?

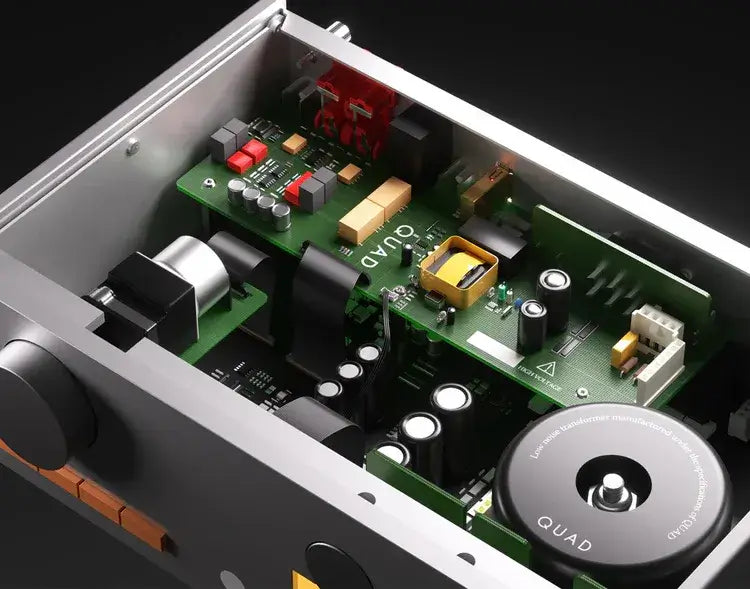

The QUAD 33 is powered by a custom-specified toroidal transformer described as low-noise, feeding five regulated supply rails through multiple ultra-low-noise regulators. This regulation is built with measures to prevent contamination and cross-coupling between rails, which is particularly relevant to a preamplifier carrying a sensitive phono stage alongside line-level and headphone circuits on the same chassis, since noise from one section can otherwise bleed into another. The core signal path stays short and direct in keeping with QUAD's traditional approach, and volume adjustment happens purely in the analogue domain even though a microprocessor initiates the command, so the audio signal itself never passes through digital conversion for level control.

Who should choose the QUAD 33 over other options in QUAD's range?

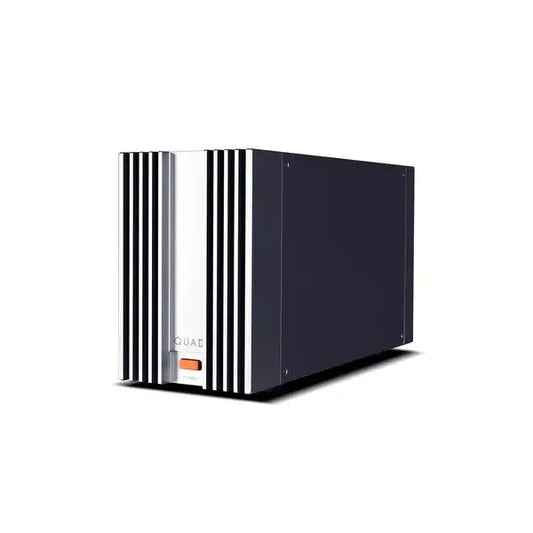

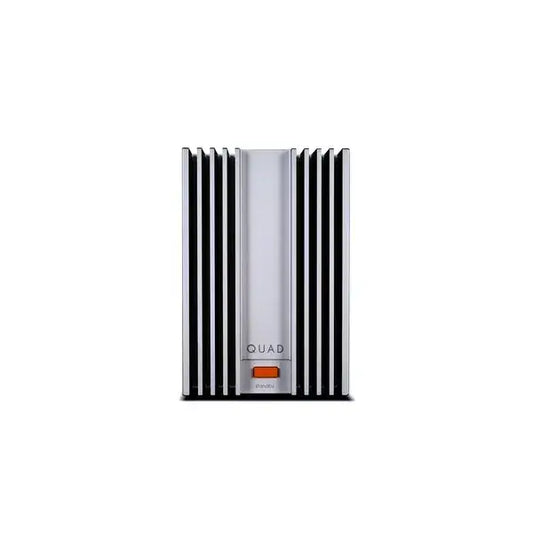

The QUAD 33 is positioned within QUAD's Preamplifiers range rather than its Integrated Amplifiers range, so it suits buyers who already own, or plan to buy, a separate power amplifier such as the QUAD 303, and who want the flexibility to upgrade or add power amplification later without replacing the front end. Its balanced XLR inputs and outputs, absent from the original 33, make it the better choice for buyers connecting balanced-output sources or running cable over longer distances than the classic model was designed for. Buyers who want a phono stage that switches between moving magnet and moving coil cartridges without opening the case, or who value the Tilt control's single-axis tonal adjustment over conventional bass and treble dials, are the clearest fit for the 33 rather than a simpler integrated amplifier or a preamplifier without a built-in phono stage.
