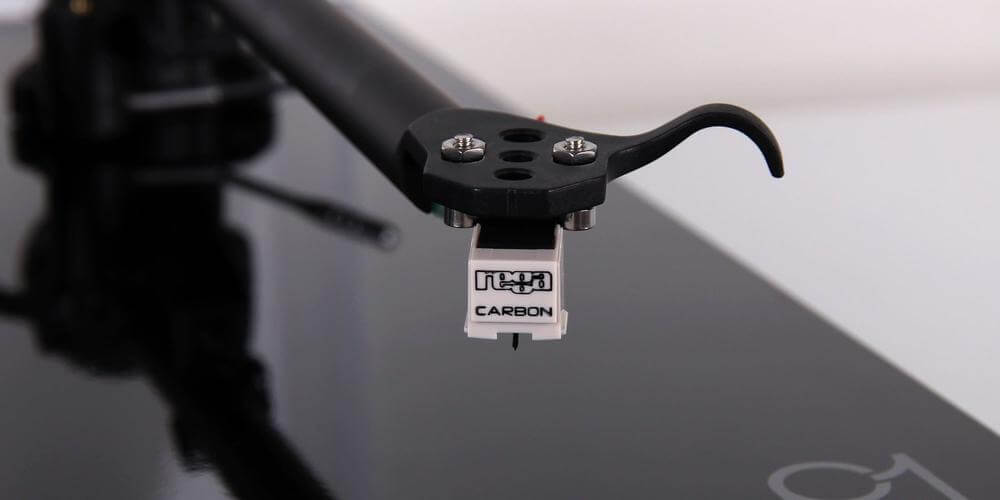

Rega Carbon Moving Magnet Cartridge
The Rega Carbon is a moving magnet pick-up cartridge built for straightforward setup, easy installation and accurate reproduction of recorded music. Rega fits the Carbon as standard equipment on the Planar 1 and Planar 2 turntables, which puts it in front of more new vinyl listeners than any other cartridge in the range. Sitting at Rega's entry-level price point, the Carbon is engineered to perform beyond what that position in the range would suggest, making it a relevant option both for buyers setting up their first system and for owners looking to fit a dependable moving magnet cartridge to a compatible Rega arm.
Why Choose the Rega Carbon Cartridge
What makes the Rega Carbon different from other entry-level cartridges?
The Rega Carbon is built around a tracking pressure range of 2 to 3 grams, wider than many cartridges at this level allow. That width gives the Carbon tolerance for variation in set-up, so it continues to track correctly even when downforce isn't adjusted with precision tools. A conical stylus profile reinforces this tolerance: conical tips are less sensitive to small errors in azimuth and overhang than finer-profile styli, which means the Carbon stays usable across a broader range of arm geometries and set-up skill levels rather than demanding the tighter tolerances that higher-specification cartridges require.
Which Rega turntables and tonearms does it fit?
The Rega Carbon is fitted as standard on the Planar 1 and Planar 2 turntables, with the Planar 2 specifically pairing it with Rega's RB220 tonearm. Mounting uses a standard two-screw fixing, the same pattern Rega applies across its RB-series tonearms, so the Carbon also suits owners fitting it to a compatible Rega arm outside the two turntables it ships on as standard.
What phono stage does the Rega Carbon need?
The Rega Carbon outputs 2.5 mV at 1 kHz, a signal level suited to a moving magnet (MM) phono input rather than a moving coil (MC) stage. Anyone building or upgrading a system around the Carbon needs to confirm that their amplifier's built-in phono stage, or any external phono stage in use, is set to MM rather than MC, so the input gain matches the cartridge's output and the signal arrives at the right level.
How straightforward is installation and cartridge alignment?
The Rega Carbon is designed to bolt directly onto a compatible headshell using its standard two-screw fixing, without the need for specialist mounting hardware. The same tracking pressure range that gives the Carbon broader operating tolerance also simplifies the downforce step during installation, leaving margin for error when setting the tracking weight rather than demanding the fine adjustment that narrower-tolerance cartridges need.
What happens when the stylus wears down?
The Rega Carbon is fitted with a user-replaceable stylus that detaches from the cartridge body rather than requiring the whole cartridge to be replaced or sent away for re-tipping. Rega sells a dedicated Carbon Stylus as a direct replacement part, so an owner can swap a worn stylus themselves without disturbing the cartridge's existing alignment or repeating the full fitting and alignment process from scratch.
How does the carbon cantilever shape the sound?
The Rega Carbon's cantilever is made from carbon, a material chosen for its combination of low mass and high rigidity. A lighter, stiffer cantilever responds to groove modulations with less lag and less unwanted flex than a heavier or softer equivalent, which is what allows the Carbon to control bass frequencies tightly and hold tonal balance steady across the frequency range, rather than the cantilever flexing and blurring low-frequency detail under load.
