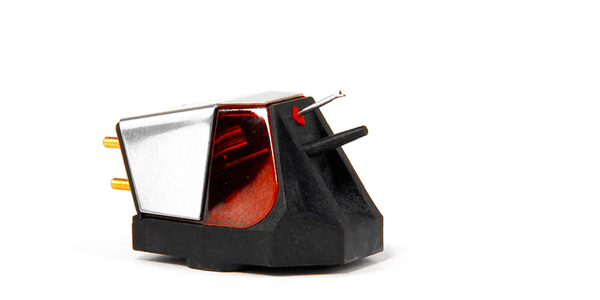

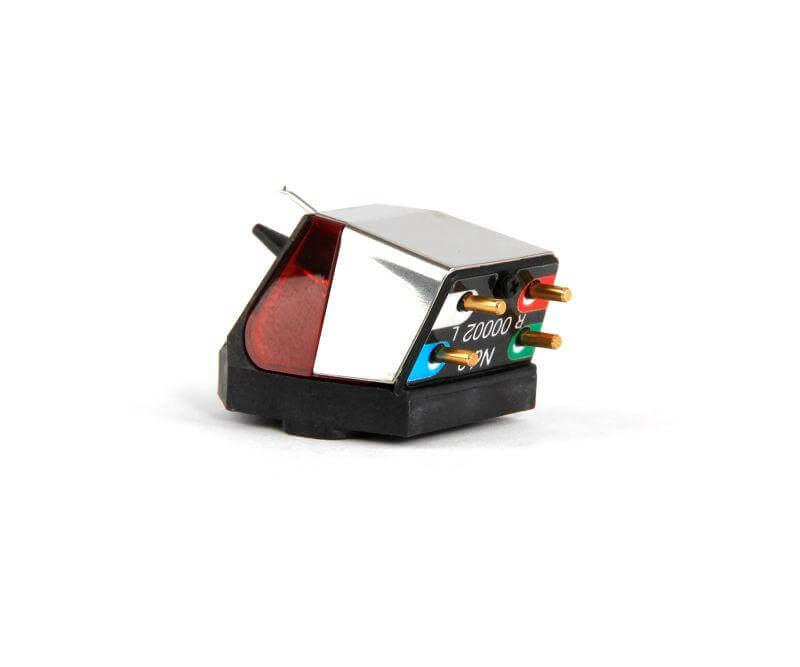

Why choose the Rega Nd3 moving magnet cartridge
The Rega Nd3 is a moving magnet cartridge built around a neodymium N55 magnet, a magnet type more commonly found in moving coil designs, including Rega's own. Rega took over ten years to develop the Nd range, and the Nd3 sits as the entry point into a new generator architecture that the brand believes is the first application of an ultra-high-power neodymium magnet within a moving magnet cartridge. For a buyer comparing moving magnet options against pricier moving coil cartridges, this matters because the magnet type directly affects how much output and control the generator can deliver without the more complex (and costlier) coil-wound armature that moving coil designs depend on.
What makes the Rega Nd3 different from other moving magnet cartridges?
The Rega Nd3 uses an N55 neodymium magnet, described by Rega as the most powerful commercially available magnet type, in place of the standard bar magnets used in conventional moving magnet generators. A more powerful magnet allows the generator to produce a stronger signal from the same stylus movement, which is the underlying reason moving coil cartridges have traditionally been associated with a more dynamic, energetic sound than moving magnet alternatives. By bringing this magnet technology into a moving magnet body, the Nd3 aims to close that gap without requiring the dedicated low-output phono stage that moving coil cartridges typically need.
Which Rega turntables and phono stages suit the Nd3?
The Nd3 fits Rega's RB220 and RB330 tonearms using the brand's 3 point fixing system, and it's offered as a factory fitted option on the Planar 2 and Planar 3 turntables, where it replaces the standard Rega Carbon or optional Nd5 cartridge. Because it's a moving magnet design with a nominal output of 5 to 6mV, it pairs with standard moving magnet phono stages such as Rega's Fono Mini A2D or Fono MM rather than the low-output stages moving coil cartridges require, which simplifies system matching for anyone building or upgrading a turntable rig around it.
How does the cartridge mount and set up on a tonearm?
Mounting uses Rega's 3 point fixing system, which locates the cartridge to the headshell at three points rather than the two-point slotted mounting common on many tonearms, reducing the alignment adjustment needed during setup. Tracking pressure is set at 1.75g, a figure that needs matching against the counterweight calibration of the host tonearm to keep the bonded elliptical stylus tracking the groove accurately without excess wear to either the stylus or the record.
What happens if the stylus wears or the cartridge gets damaged?
Rega cartridges use a pivot pad design that removes the mechanical joint normally found between the stylus housing and the cartridge body, a joint that in conventional designs can loosen over time and affect tracking stability. If the stylus wears out or the cartridge is damaged, Rega's rebuild scheme lets you trade in the old unit through a Rega dealer for a rebuilt cartridge fitted with a new cantilever, stylus and pivot pad, tested to the same standard as a new Nd3, at a price comparable to a replacement stylus from other manufacturers. Separately, the Nd3 carries Rega's lifetime limited warranty against manufacturing defects, though this doesn't extend to wear and tear or consumable parts such as the stylus itself.
How is the generator built to control channel balance and frequency response?
The Nd3's generator uses a newly designed geometry built with perfect symmetry between channels, which is what gives the cartridge accurate left to right channel balance rather than one channel reproducing slightly louder or earlier than the other. An optimised pole gap improves linearity and reduces crosstalk between channels, contributing to a wider stereo soundstage than Rega's earlier moving magnet models achieved. The coils themselves are miniaturised and wound in parallel, producing a generator with low inductance and low impedance; this combination extends high frequency response, since high inductance is typically what limits a moving magnet cartridge's ability to reproduce upper frequencies cleanly.
Why does the Nd3 use a glass filled PPS body and aluminium cantilever?
The complete generator assembly sits inside an injection moulded body made from glass filled polyphenylene sulphide (PPS), a material chosen for its combination of low weight and high rigidity, and built to zero tolerance so the internal components stay precisely located. A lighter, more rigid cartridge body places less stress on the tonearm's bearings and allows freer movement through the groove, which is a meaningful factor in tracking accuracy on any turntable. This body design carries over principles from Rega's moving coil range. The stylus itself is a bonded elliptical profile fitted to an aluminium cantilever, a combination geared towards tracking accuracy and detail retrieval from the record surface. Each Nd3 is hand assembled, and the Nd range is supplied in fully recyclable packaging.
