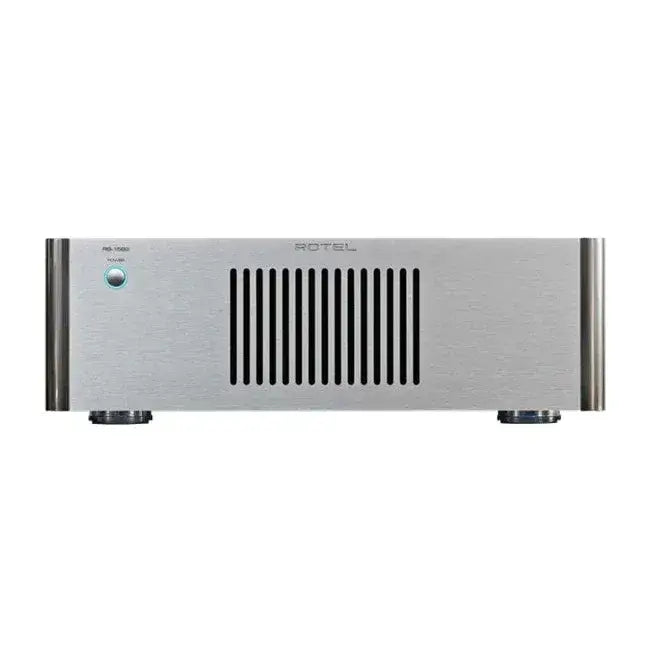

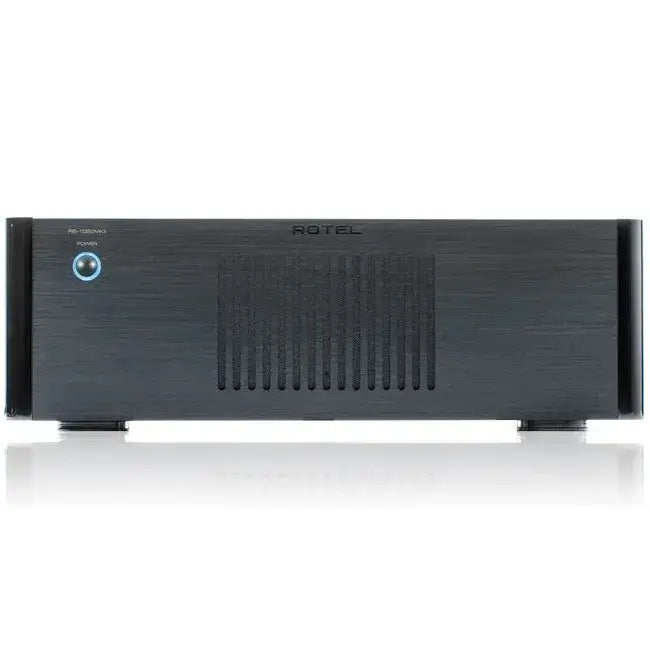

Rotel RB-1582 MKII Stereo Power Amplifier

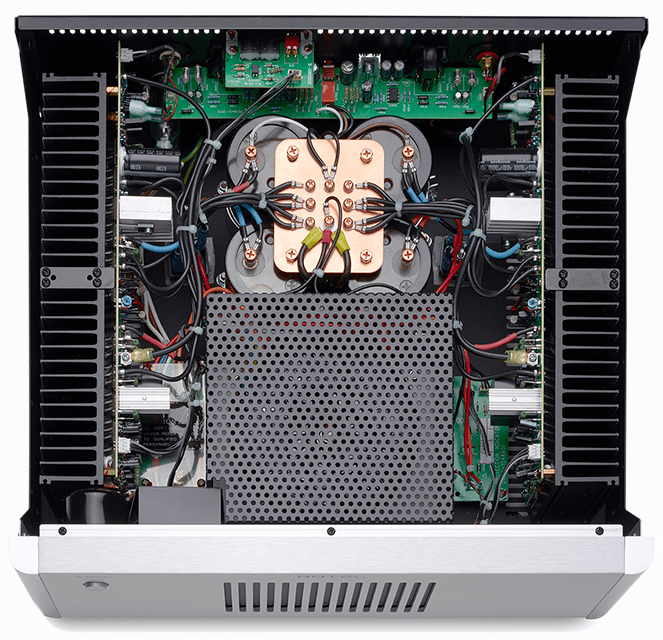

Rotel RB-1582MKII Stereo Power Amplifier is a high-performance Class AB amplifier engineered to deliver authoritative power with exceptional musical refinement. Drawing on Rotel’s decades of audio engineering expertise, it combines a high-current power supply, premium slit foil capacitors, and a fully discrete output stage to reproduce music with impressive clarity, dynamic impact, and precise control. Designed for demanding hi-fi and home cinema systems, the RB-1582MKII offers balanced and unbalanced connectivity for seamless integration into premium audio setups.
Limited Availability - Contact Us Before Purchasing.
Specifications
Rotel RB-1582 MKII Stereo Power Amplifier
| Specification | Value |
|---|---|
| Brand |
Rotel |
| Model |
RB-1582MKII |
| Product type |
Classic Stereo Power Amplifier |
| Amplifier class |
Class AB |
| Continuous power output |
2 x 200 Watts (20Hz-20kHz, <0.03% THD, 8 ohms) |
| Total harmonic distortion |
<0.03% (20Hz-20kHz, 8 ohms) |
| Intermodulation distortion |
<0.03% (60Hz:7kHz, 4:1) |
| Frequency response |
10Hz-100kHz (±0.5dB) |
| Damping factor |
800 (20Hz-20kHz, 8 ohms) |
| Minimum speaker impedance |
4 ohms |
| Signal to noise ratio |
116dB (IHF A weighted) |
| Input impedance sensitivity unbalanced |
12k Ohms / 1.9V |
| Input impedance sensitivity balanced |
100k Ohms / 3.0V |
| Gain unbalanced |
26.5dB |
| Gain balanced |
22.5dB |

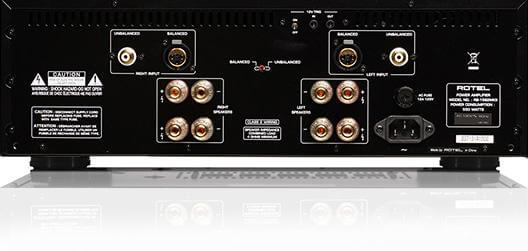

| Inputs |
Balanced XLR, Unbalanced RCA |
| Output stage |
Discrete design with 10 high current bipolar transistors per channel |
| Power supply |
Large toroidal transformer with 60,000uF slit foil capacitor storage |
| Capacitors |
High performance low ESR British slit foil capacitors |
| Grounding |
Star grounding on copper grounding plate |
| Channel layout |
Mono block design after toroidal transformer |
| 12v trigger |
Yes |
| Power requirements us |
120V 60Hz |
| Power requirements eu |
230V 50Hz |
| Power consumption |
550W |
| Btu |
1104 BTU/h (4 ohm, 1/8 power) |
| Dimensions |
431 x 144 x 407 mm (17 x 5.875 x 16 in) |
| Front panel height |
3U / 132.6 mm / 5.25 in |
| Weight |
17.6 kg / 38.80 lbs |
Product Details
