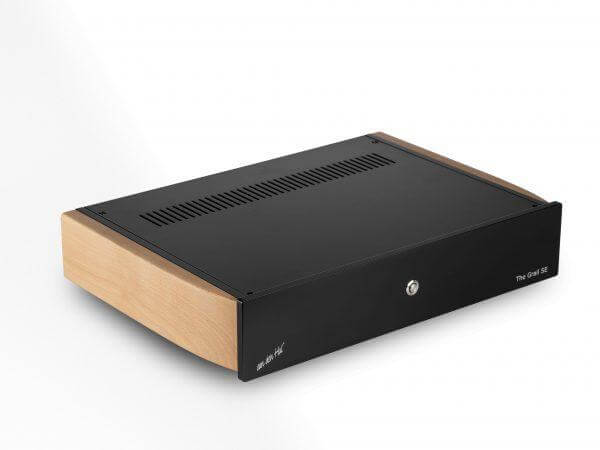

Van Den Hul The Grail SE Phono Preamplifier
The Grail SE Phono Preamplifier by Van den Hul delivers superior dynamic range, ultra-low noise, and seamless compatibility with its automatic Auto-match impedance technology. Designed for audiophiles, it brings a rich, powerful sound with precise detail and smooth, clear audio reproduction. This hybrid, halogen-free design offers versatility with both MM and MC inputs and RCA/XLR connectivity. The optional Grail SE+ upgrade boosts power dynamics, enhancing depth and sound control. Built with durability in mind, the Grail SE is a robust, premium addition to any high-end vinyl audio setup.
Specifications
Van Den Hul The Grail SE Phono Preamplifier
Specification | Value |
---|---|
Mains power |
available with 115/120Volts or 230Volts, 50/60Hz. |
Input |
1* MM, 2* MC; RCA or XLR. |
Max. undistorted output voltage |
15Vss |
Output impedance |
330 Ohms (real resistive), 600 Ohms at balanced out |
Input sensitivity values |
(given for 250mV RMS resp. 0,707Vss output level on amplifier output) |
Signal to noise |
>= 77dB |
Input impedance |
automatic matching in milliseconds from approximately 2 Ohms up to 2,000 Ohms |
Size (w x h x l, incl. feet) |
475 x 95 x 335mm |
Weight |
19.5KG (approximately 43lbs) without the external power supplies |
Temperature operating range |
from 15 degrees Celsius up to 30 degrees Celsius room temperature. No condensing allowed; use only in dry rooms |
