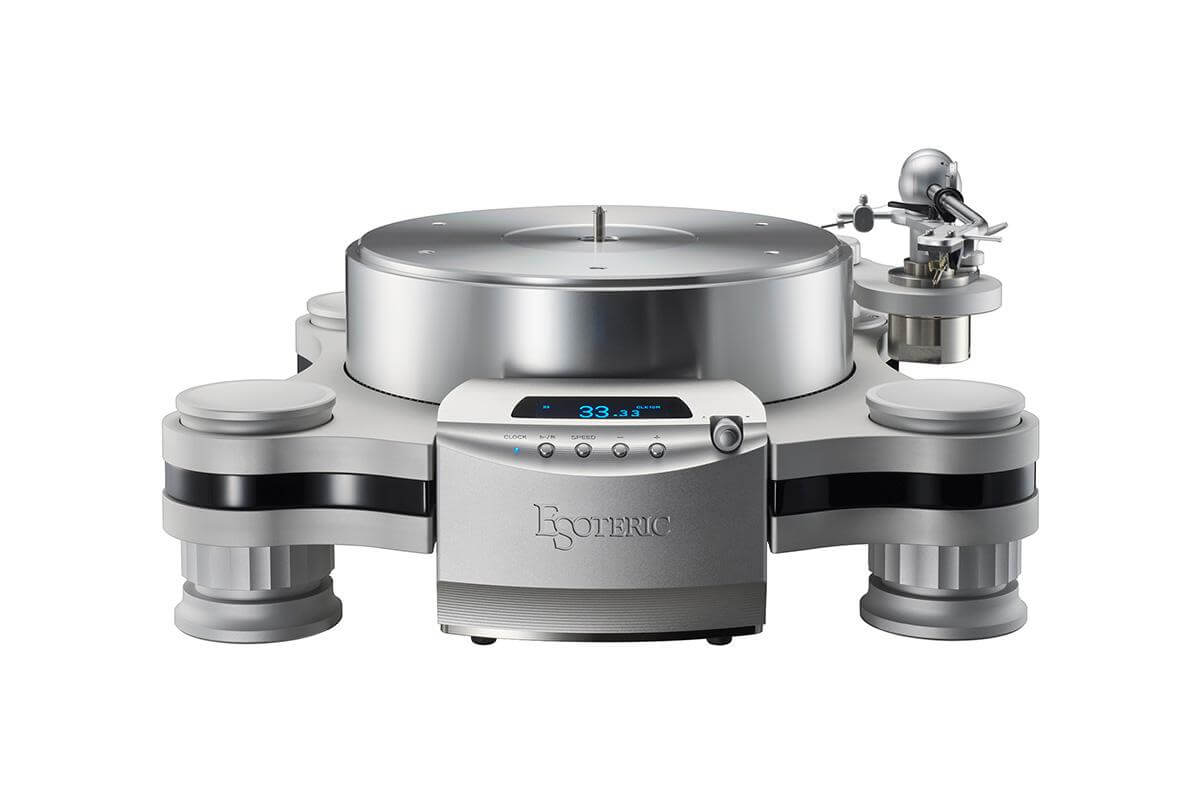

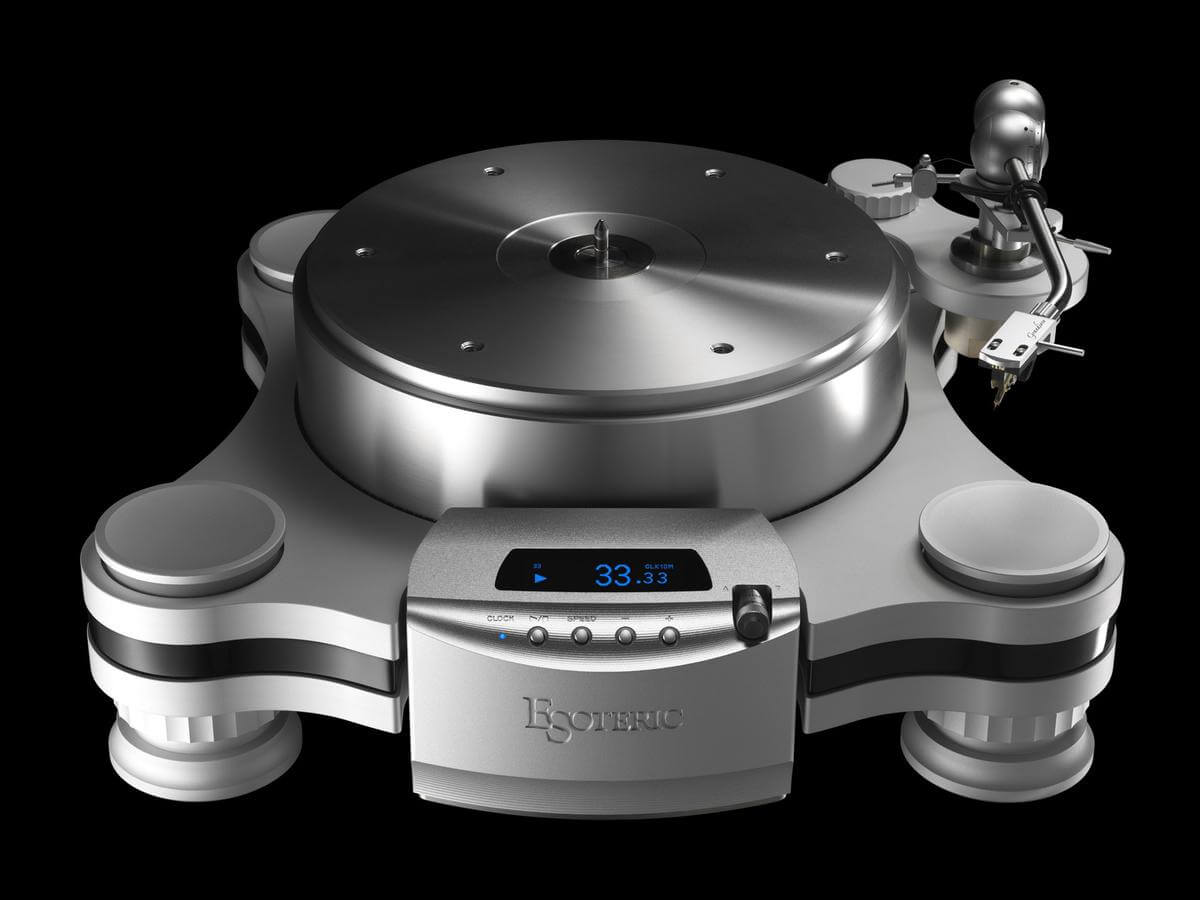

Esoteric Grandioso T1 MagneDrive Turntable (without tonearm)
The Esoteric Grandioso T1 is a statement MagneDrive turntable created to deliver reference-grade analogue performance with precision engineering. It’s available in two configurations: the Grandioso T1/AL, an analog turntable supplied without a tonearm, and the Grandioso T1, supplied with the TA-9D dynamic balance tonearm for accurate and stable vinyl playback.
Starting at $99,888.00 AUD
A Tonearm Base Kit is required when selecting the Grandioso T1/AL, with custom-designed, built-to-order Tonearm Base Kits also offered to suit specialised installations. Please check for availability, as lead times may vary—contact us directly for further details and configuration options.
✓ Full Australian Warranty
✓ Fast Australia-Wide Shipping
✓ Local Expert Support
Specifications
Esoteric Grandioso T1 MagneDrive Turntable (without tonearm)
| Specification | Value |
|---|---|
| Product |
Grandioso T1 |
| Turntable section rotation speed |
33 ⅓ rpm, 45 rpm |
| Turntable section rotation speed adjustment range |
±12% (0.1% step) |
| Turntable section wow and flutters |
0.06% or less (W.R.M.S) |
| Clock input connector |
BNC × 1 |
| Clock input input impedance |
50Ω |
| Clock input input frequency |
10MHz (±10ppm) |
| Clock input input level |
0.5 to 1.0Vrms (sine wave) |
| Tone arm section (ta-9d) type |
Dynamic balance |
| Tone arm section (ta-9d) overall length |
326mm |
| Tone arm section (ta-9d) effective length |
245mm |
| Tone arm section (ta-9d) distance between tone arm axis to spindle |
230mm |
| Tone arm section (ta-9d) overhang |
15 ±2mm |
| Tone arm section (ta-9d) tracking error |
+2° to 1° 21′ |
| Tone arm section (ta-9d) needle pressure range |
0 to 5g (0.25g step) |
| Tone arm section (ta-9d) vta elevation range |
0 to 10mm |
| Tone arm section (ta-9d) cartridge/shell balance range |
6 to 38.5g |
| Tone arm section (ta-9d) headshell weight |
16.45g |
| Base unit overall dimensions (w×h×d) |
497 × 215 × 436mm / 19.6” × 8.5” × 17.2” (including protrusions) |
| Base unit weight |
17kg / 37.5 lb. |
| Platter overall dimensions (diameter × height) |
ø315.4 × 103mm / ø12.4” × 4.1” |
| Platter weight |
19kg / 41.9 lb. |
| Motor unit overall dimensions (w×h×d) |
180 × 137 × 450mm / 7.1” × 5.4” × 17.7” (including protrusions) |
| Motor unit weight |
9kg / 19.9 lb. |
| Power supply unit overall dimensions (w×h×d) |
445 × 131 × 447mm / 17.5” × 5.2” × 17.6” (including protrusions) |
| Power supply unit weight |
18kg / 39.7 lb. |
