Auris Audio W-10a Tonearm

Auris Audio W-10a Tonearm

The Auris Audio W-10a Tonearm is a 10-inch gimbal-bearing tonearm positioned for vinyl enthusiasts and analogue system builders who want a precision-engineered arm with extensive adjustability, low-friction bearing performance, and careful resonance management. Its primary differentiators are its six medical-grade ball bearings, Van den Hul internal wiring, vibration-damped counterweight design, 10mm VTA adjustment system, and the choice of carbon fibre or milled aluminium construction.

Why does the Auris Audio W-10a Tonearm stand out from typical gimbal tonearms?

Auris Audio W-10a Tonearm is a precision-engineered 10-inch design that combines multiple approaches to controlling tracking accuracy and unwanted mechanical energy. The arm uses six high-precision ball bearings to minimise friction during playback, while the anti-skating assembly itself operates on additional bearings to support stable groove tracing and precise movement.

The design also integrates a vibration-damping counterweight system that uses a rubber-thread arrangement to reduce the transfer of unwanted resonance through the arm assembly. Rather than relying on a single design element, the W-10a combines bearing precision, resonance control, signal-path optimisation, and adjustability within the same platform.

Which turntables can the Auris Audio W-10a Tonearm fit?

Auris Audio W-10a Tonearm is a 10-inch tonearm with a specified mounting distance of 237.8mm, a 30mm mounting hole requirement, and a mounting arrangement using three M4 screws. These dimensions mean compatibility depends on whether the turntable plinth or armboard can accommodate the required geometry and mounting pattern.

The arm's 254mm effective length and specified overhang geometry indicate that installation is best suited to turntables designed for interchangeable tonearms or custom armboards where mounting distance can be accurately established. Prospective owners should confirm available armboard space and mounting geometry before purchase.

Which cartridges suit the Auris Audio W-10a Tonearm?

Auris Audio W-10a Tonearm is specified with an effective mass of 11.8g and a stated cartridge compliance range of 6–15. This places cartridge matching among the key considerations when building a system around the arm.

The published compliance range provides a starting point for evaluating cartridge compatibility. Buyers comparing moving-magnet and moving-coil cartridge options should verify that the cartridge's compliance characteristics fall within the arm's intended operating range to achieve appropriate arm-cartridge resonance behaviour.

How does the Auris Audio W-10a Tonearm manage resonance?

Auris Audio W-10a Tonearm is engineered with several features intended to reduce the influence of unwanted vibration. The counterweight incorporates a damping mechanism based on a rubber-thread design, while the arm wand uses aluminium construction with an ultra-thin 1mm wall thickness.

The purpose of these design choices is to reduce stored energy and mechanical resonance that could otherwise affect stylus performance. By limiting unwanted vibration within the arm structure, the tonearm aims to preserve the information retrieved from the record groove rather than adding mechanical artefacts of its own.

How does the Auris Audio W-10a Tonearm support cartridge setup?

Auris Audio W-10a Tonearm is equipped with a Vertical Tracking Angle adjustment system that provides up to 10mm of adjustment. This allows users to alter arm height to accommodate different cartridge body dimensions, platter mats, and setup preferences.

The arm also incorporates an anti-skating mechanism designed to assist groove-tracking stability. Together, these adjustments allow owners to optimise stylus alignment and cartridge geometry rather than being restricted to a fixed setup configuration.

Why does the Auris Audio W-10a Tonearm use medical-grade bearings?

Auris Audio W-10a Tonearm is designed around medical-industry-grade ball bearings selected for extremely low tolerances and minimal clearances. According to the manufacturer information, these bearings contribute to stable arm movement and accurate tracking performance.

In practical terms, low-friction and tightly controlled bearing assemblies help the stylus respond to groove modulation with less resistance from the tonearm itself. This engineering focus addresses one of the fundamental requirements of tonearm design: allowing controlled movement while maintaining cartridge stability.

How does the Auris Audio W-10a Tonearm protect signal integrity?

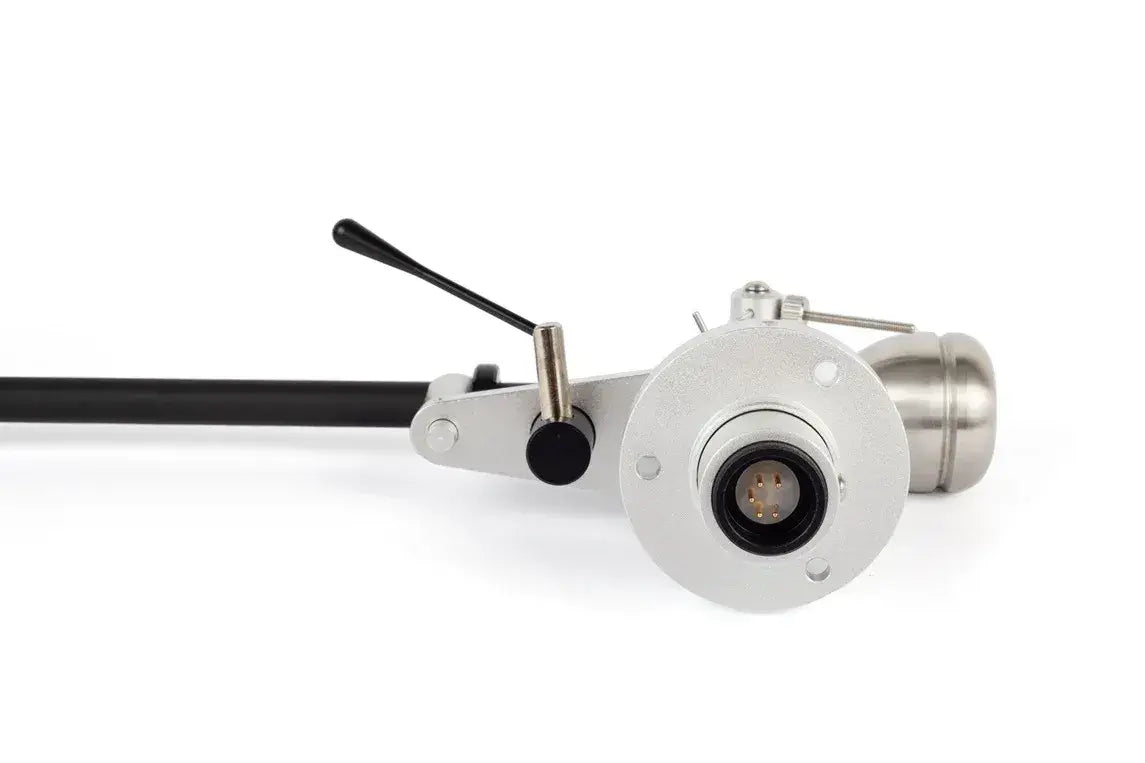

Auris Audio W-10a Tonearm is fitted with Van den Hul internal wiring and a DIN 5-pin output connection. The use of specialist tonearm wiring is intended to maintain signal transfer from the cartridge through the tonearm with minimal additional resistance.

Because phono cartridge signals are extremely low in level, wiring quality and connection integrity play an important role in preserving the signal before it reaches the phono stage. The W-10a's internal wiring choice reflects that design priority.

What manufacturing approach does the Auris Audio W-10a Tonearm use?

Auris Audio W-10a Tonearm is developed using 3D CAD/CAM design processes and CNC-machined components manufactured to tightly controlled tolerances. The emphasis on precision machining supports the bearing alignment, geometry accuracy, and mechanical consistency required in a tonearm.

For buyers evaluating long-term ownership, this engineering approach is significant because tonearm performance depends heavily on dimensional accuracy across the bearing assemblies, arm structure, and mounting geometry.

Who is the Auris Audio W-10a Tonearm intended for?

Auris Audio W-10a Tonearm is intended for vinyl listeners seeking a dedicated tonearm upgrade or a high-quality arm for a custom turntable build. Its combination of adjustable VTA, defined cartridge compliance range, precision bearings, specialised wiring, and resonance-control measures makes it particularly relevant to users who want to optimise cartridge setup rather than rely on a fixed factory configuration.

The design is best suited to systems where careful cartridge matching, accurate installation, and setup flexibility are priorities.
