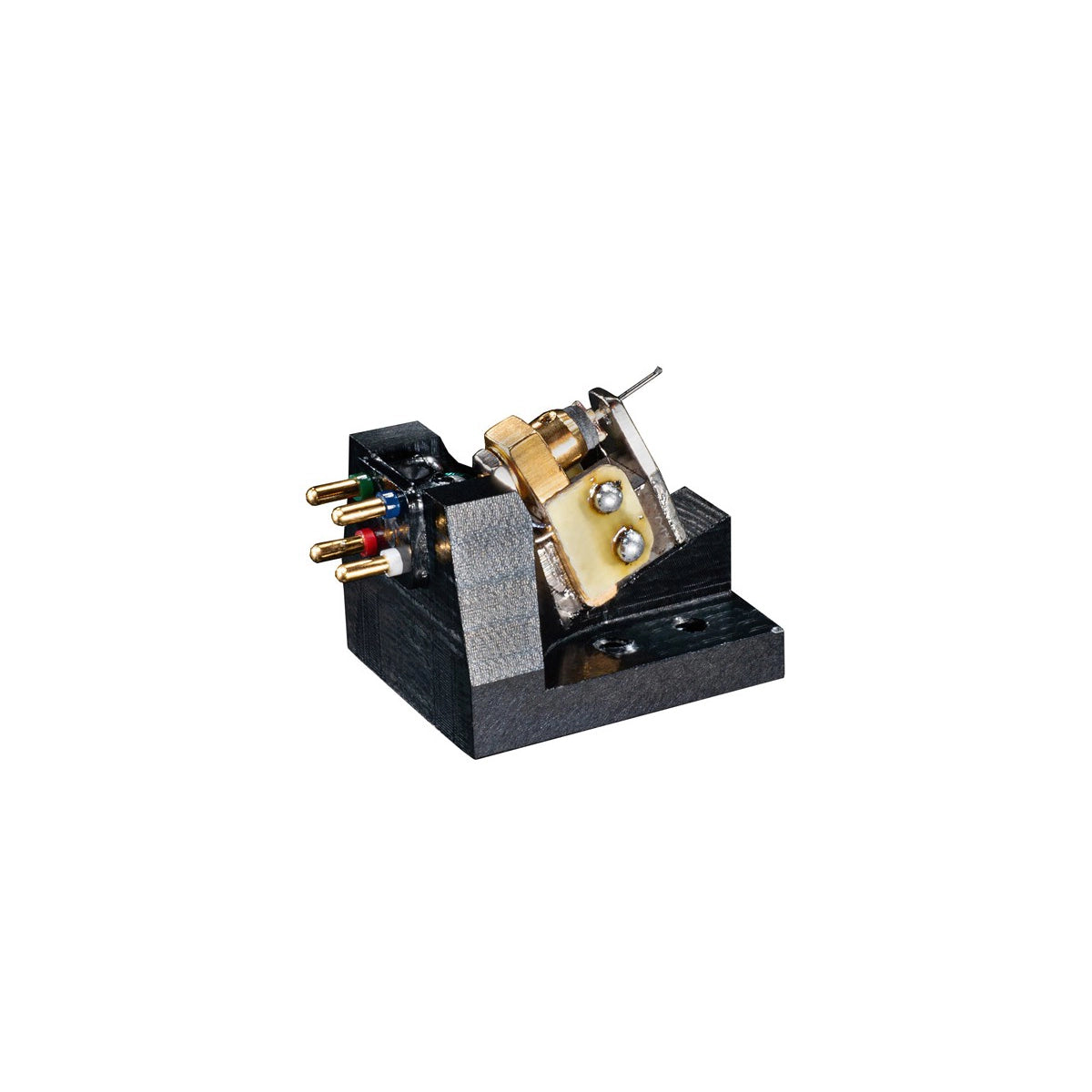

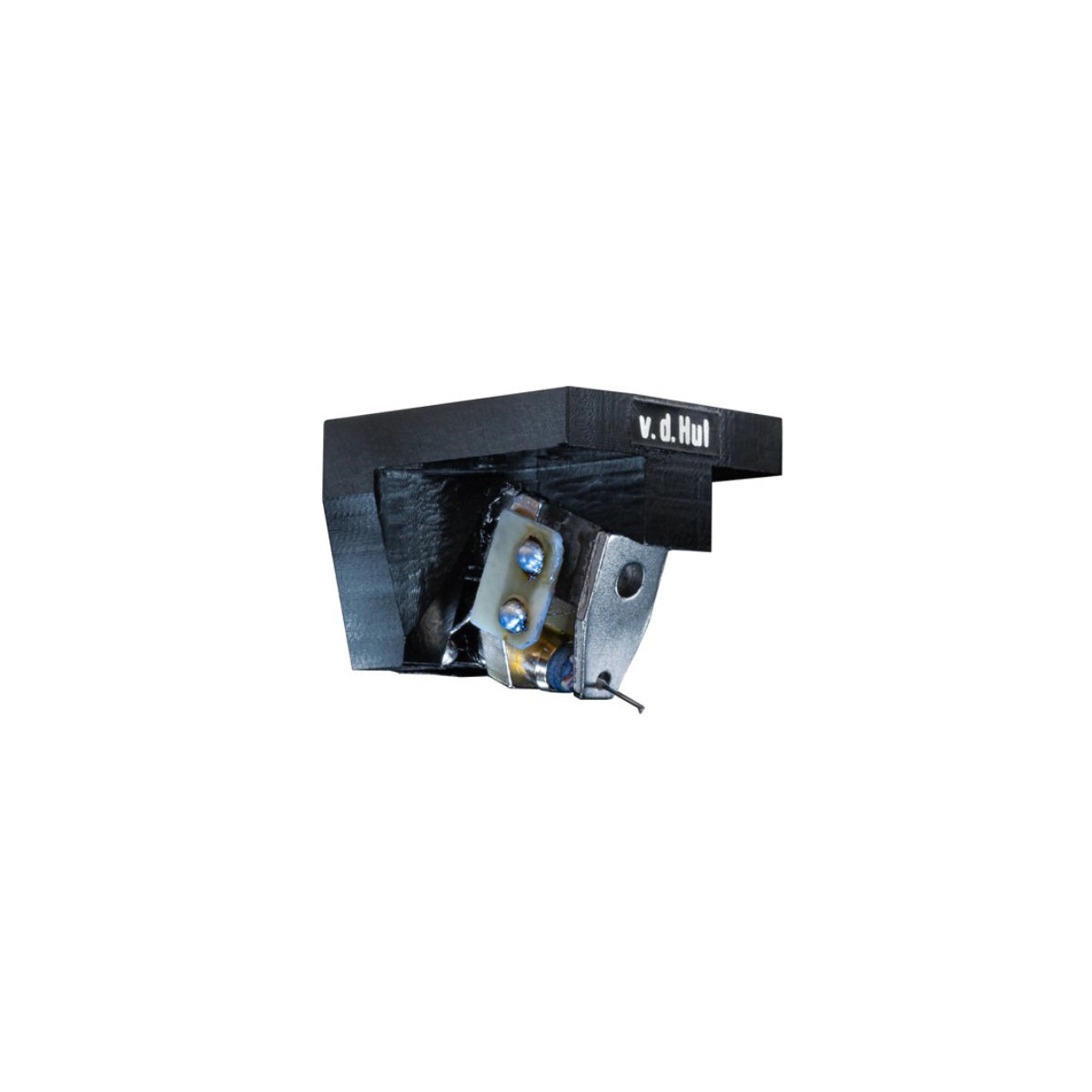

Van Den Hul Black Crimson Phono Cartridge
The Van den Hul Crimson Phono Cartridge is a high-performance moving coil cartridge crafted for audiophiles who demand exceptional vinyl playback. Handbuilt with precision, it combines gold coil engineering, a Samarium-Cobalt magnet, and the VDH 1S stylus to deliver unmatched clarity, channel separation, and smooth tracking across a wide frequency range of 5 Hz to 55,000 Hz. Available in premium wood or polycarbonate finishes, it offers both aesthetic sophistication and technical excellence. Designed for compatibility with a range of tonearms, it ensures versatile integration and enduring performance with an included 200-hour service check.
Specifications
Van Den Hul Black Crimson Phono Cartridge
Specification | Value |
---|---|
Version |
XGW: wooden body / XGP: polycarbonate body |
Stylus replacement |
stylus replacement and services available on request |
Stylus shape |
VDH 1S |
Stylus radii |
2 x 85 Micron |
Frequency range |
5 – 55.000 Hz |
Tracking force |
1,4 – 1,6 Gr |
Static compliance |
35 Micron/mN |
Tracking ability |
70 – 80 Micron |
Output voltage |
0,65mV |
Channel unbalance |
< 0.3 dB |
Channel separation |
> 36 / > 30 dB |
Stylus tip mass |
0.32 Milligram |
System weight |
8,75 Gr |
Load capacitance |
Non critical |
Load impedance |
25 Ohm – 200 Ohm |
Eff tone arm mass |
10 – 16 Gr |
Moving coil resistance |
13,0 Ohm |
