Van Den Hul Colibri XGP Phono Cartridge

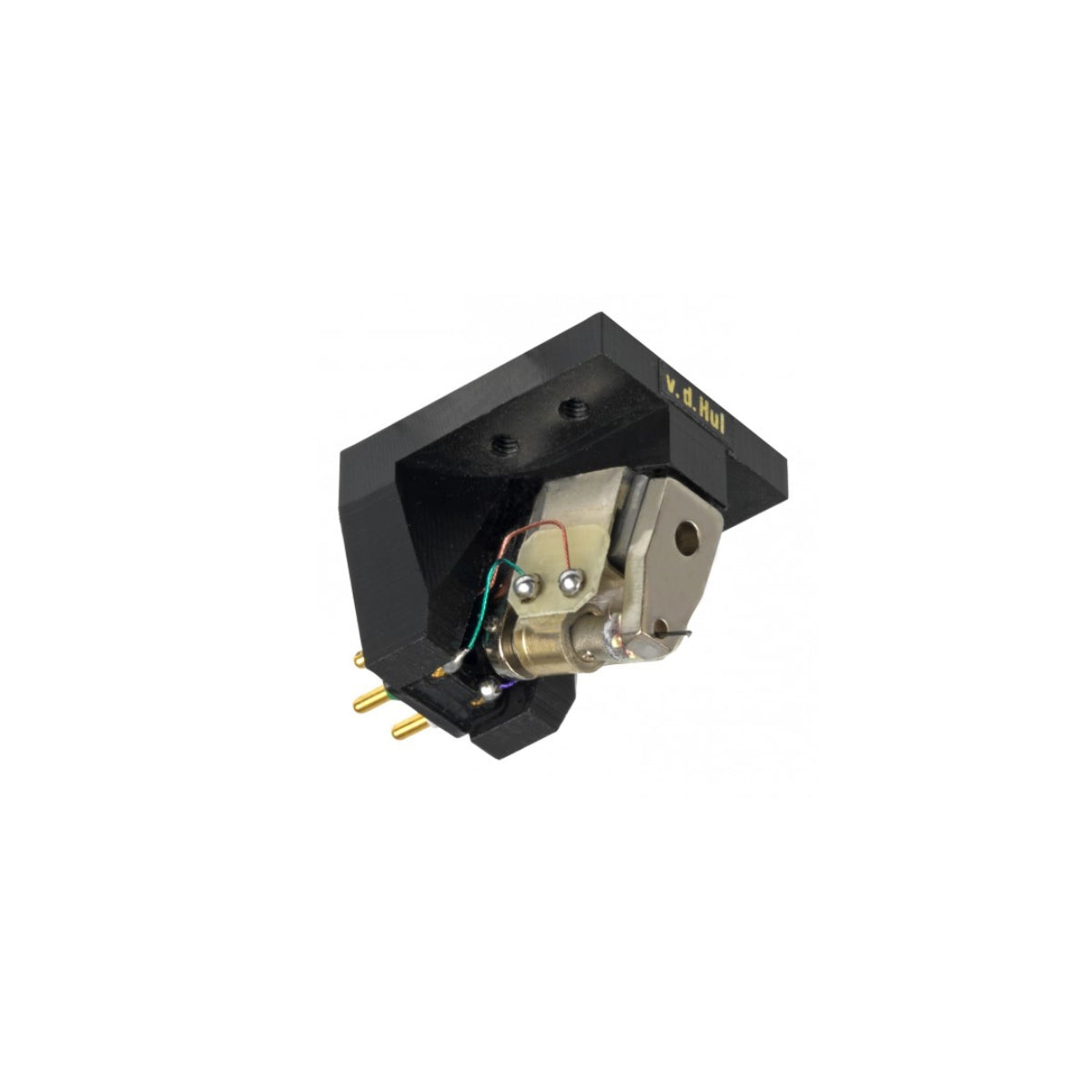

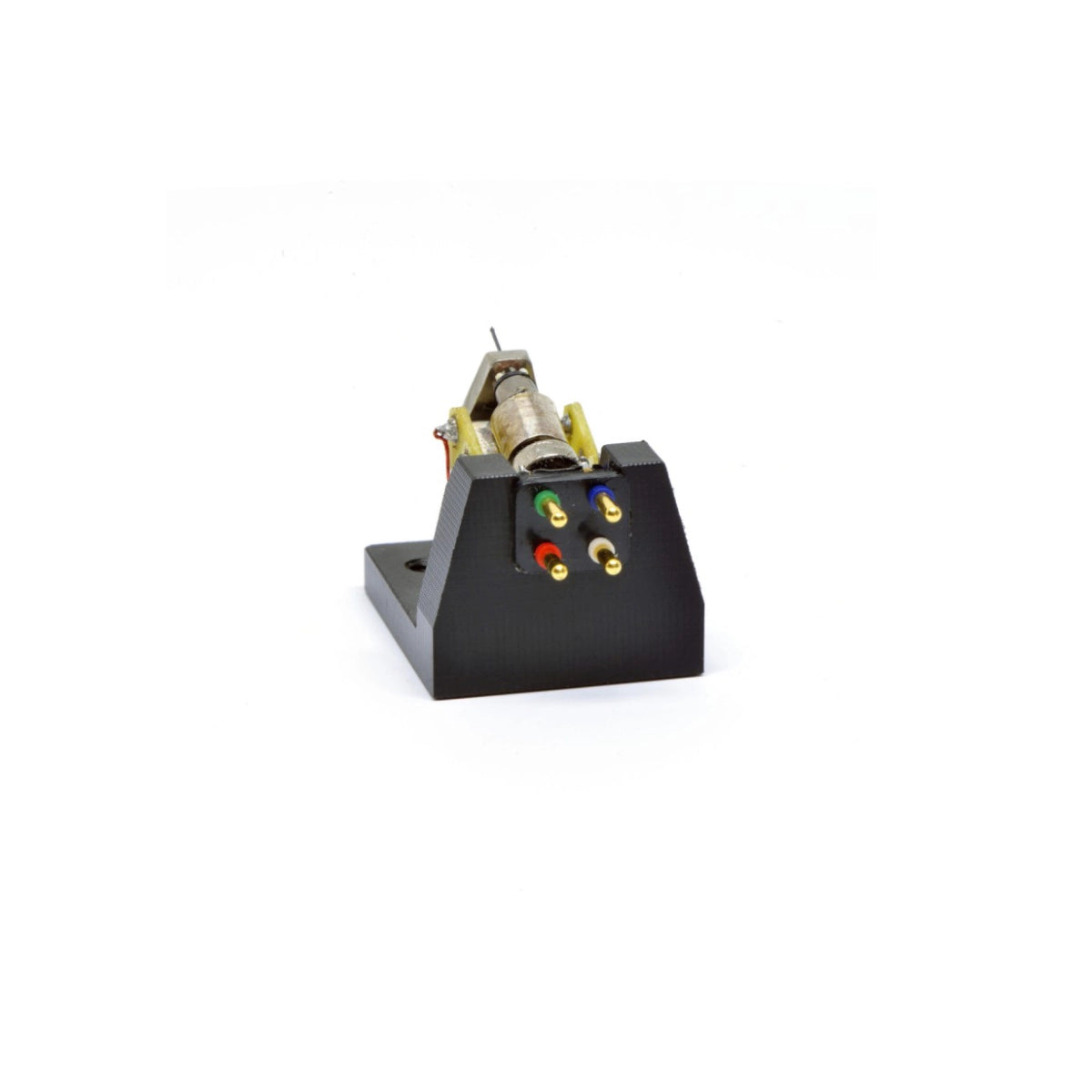

The Colibri Phono Cartridge by A.J. van den Hul redefines vinyl playback with its handcrafted precision and innovative design. Engineered for audiophiles, it features minimalist construction to minimise distortion, enhancing clarity and soundstage. Lightweight for superior tracking, it excels with light tonearms and delivers intricate details through its shortened cantilever and advanced stylus design. Available in tailored versions, including gold-coil XG for classical music and copper-coil XC for all genres, The Colibri ensures an optimised experience for every musical style. Customisation options, exquisite materials like wood or amber, and bespoke craftsmanship make The Colibri a pinnacle of vinyl performance.
Specifications
Van Den Hul Colibri XGP Phono Cartridge
Specification | Value |
---|---|
Body types |
W (Wooden body), P (Carbon plastic body), M (Metal body), A (Amber body) |
Stylus shape |
VDH - 1S |
Stylus radius |
2 x 85 Micron |
Frequency range |
5 - 65,000 Hz |
Tracking force range |
1.35-1.5g (13.5 - 15 mN) see (*3) |
Static compliance |
35 Micron/mN see extra info (*3) |
Dynamic compliance |
20 Micron/mN |
Tracking ability |
70 Micron |
Output voltage |
A) 0.38 mV RMS B) 0.30 mV RMS C) 0.65 mV RMS |
Channel unbalance |
< 0.5 dB |
Channel separation |
> 35 / > 30 dB |
Stylus tip mass |
0.24 Milligram |
System weight |
See extra info (*4) |
Vertical tracking angle |
22 Degrees |
Load capacitance |
Non critical |
Load impedance |
20-47,000 Ohm - Advisable 50-600 Ohm XC-Version: 20-47,000 Ohm - Advisable 20-600 Ohm X-HO-Version: 20-47,000 Ohm - Advisable 50-600 Ohm |
Eff tone arm mass |
See extra info (*3) + (*4) + (*5) |
Moving coil resistance |
A) 36 Ohm +/- 10% B) 21 Ohm +/- 10% C) 96 Ohm +/- 10% |
