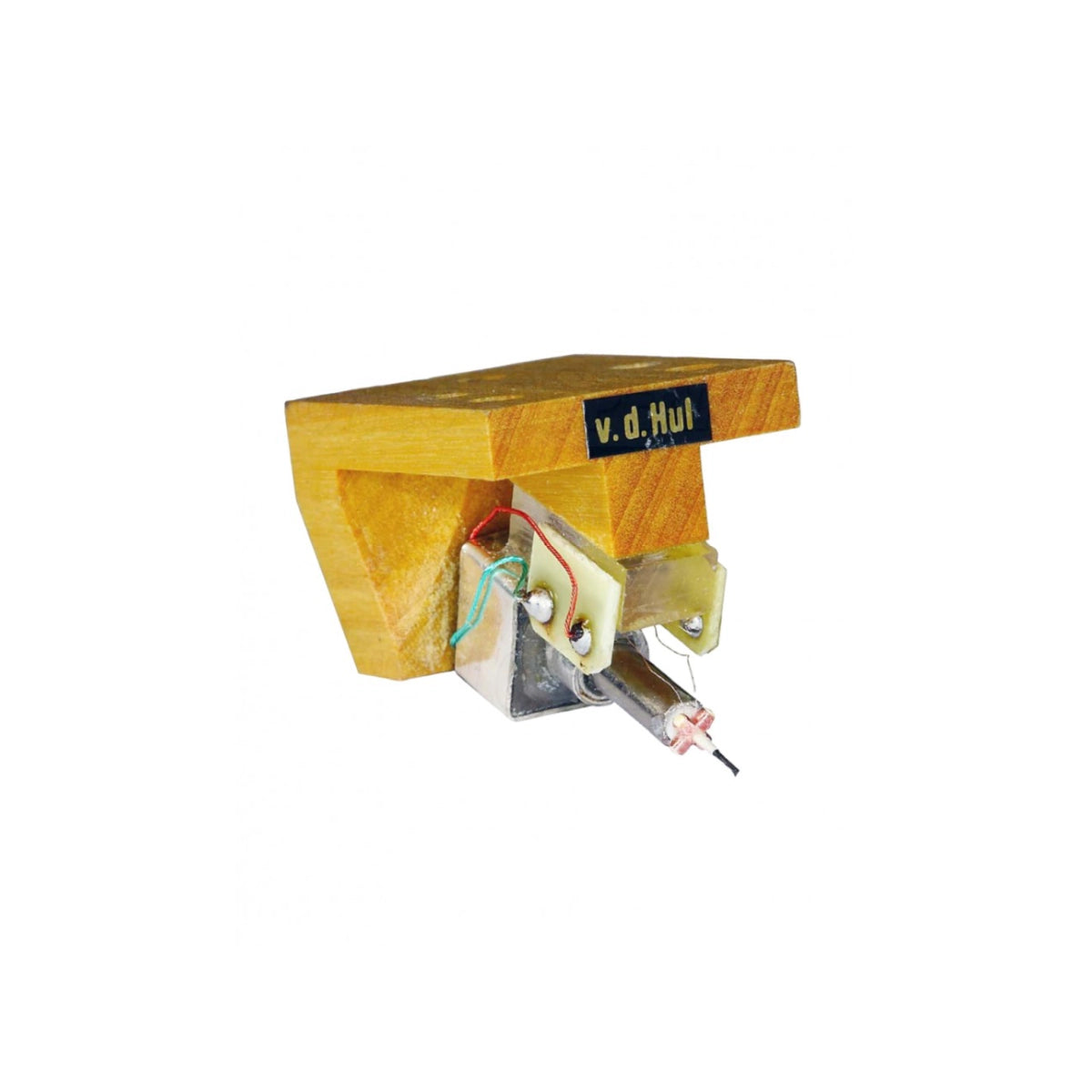

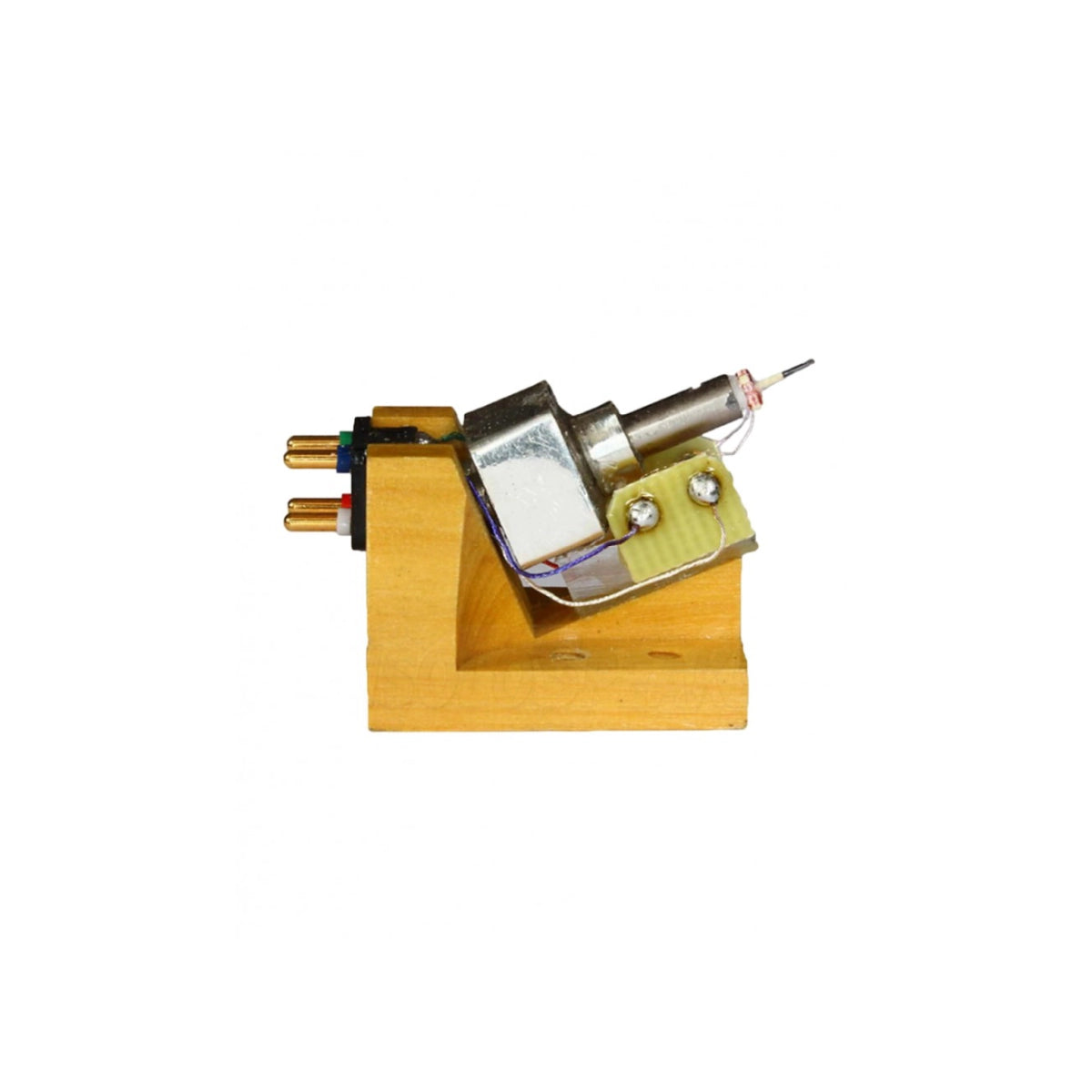

Van Den Hul Colibri XGW Grand Cru Phono Cartridge
The Colibri XGW ‘Grand Cru’ Phono Cartridge is a high-performance moving coil cartridge featuring a luxurious Koa wooden body and advanced engineering for unmatched sound clarity. Designed by A.J. van den Hul, it incorporates an extra magnet and a shortened cantilever to enhance resolution, reduce distortion, and deliver precise sound reproduction. With a frequency range of 5–65,000 Hz and channel separation of over 35 dB, it captures intricate musical details with elegance. Customisable output levels, coil materials, and configurations make it ideal for classical, jazz, and all-around music listening. Handcrafted to perfection, the Grand Cru is the pinnacle of audiophile precision.
Specifications
Van Den Hul Colibri XGW Grand Cru Phono Cartridge
Specification | Value |
---|---|
Body type |
Koa wooden body |
Standard output level |
0.60mV at 5.6cm/s |
Optional output levels |
Various levels from 0.30mV to 1.1mV |
Extra magnet |
Improves resolution capabilities and magnetic field |
Different body types |
-W (Wooden body), -P (Carbon plastic body), -M (Metal body), -A (Amber body) |
Stylus shape |
VDH - 1S |
Stylus radius |
2 x 85 Micron |
Frequency range |
5 - 65,000 Hz |
Tracking force range |
1.35-1.5g (13.5 - 15 mN) see (*3) |
Static compliance |
35 Micron/mN see extra info (*3) |
Dynamic compliance |
20 Micron/mN |
Tracking ability |
70 Micron |
Output voltage options |
A) 0.38 mV RMS, B) 0.30 mV RMS, C) 0.65 mV RMS |
Channel unbalance |
< 0.5 dB |
Channel separation |
> 35 / > 30 dB |
Stylus tip mass |
0.24 Milligram |
System weight |
See extra info (*4) |
Vertical tracking angle |
22 Degrees |
Load capacitance |
Non critical |
Load impedance |
20-47,000 Ohm - Advisable 50-600 Ohm, XC-Version: 20-47,000 Ohm - Advisable 20-600 Ohm, X-HO-Version: 20-47,000 Ohm - Advisable 50-600 Ohm |
Eff tone arm mass |
See extra info (*3) + (*4) + (*5) |
Moving coil resistance |
A) 36 Ohm +/- 10%, B) 21 Ohm +/- 10%, C) 96 Ohm +/- 10% |
