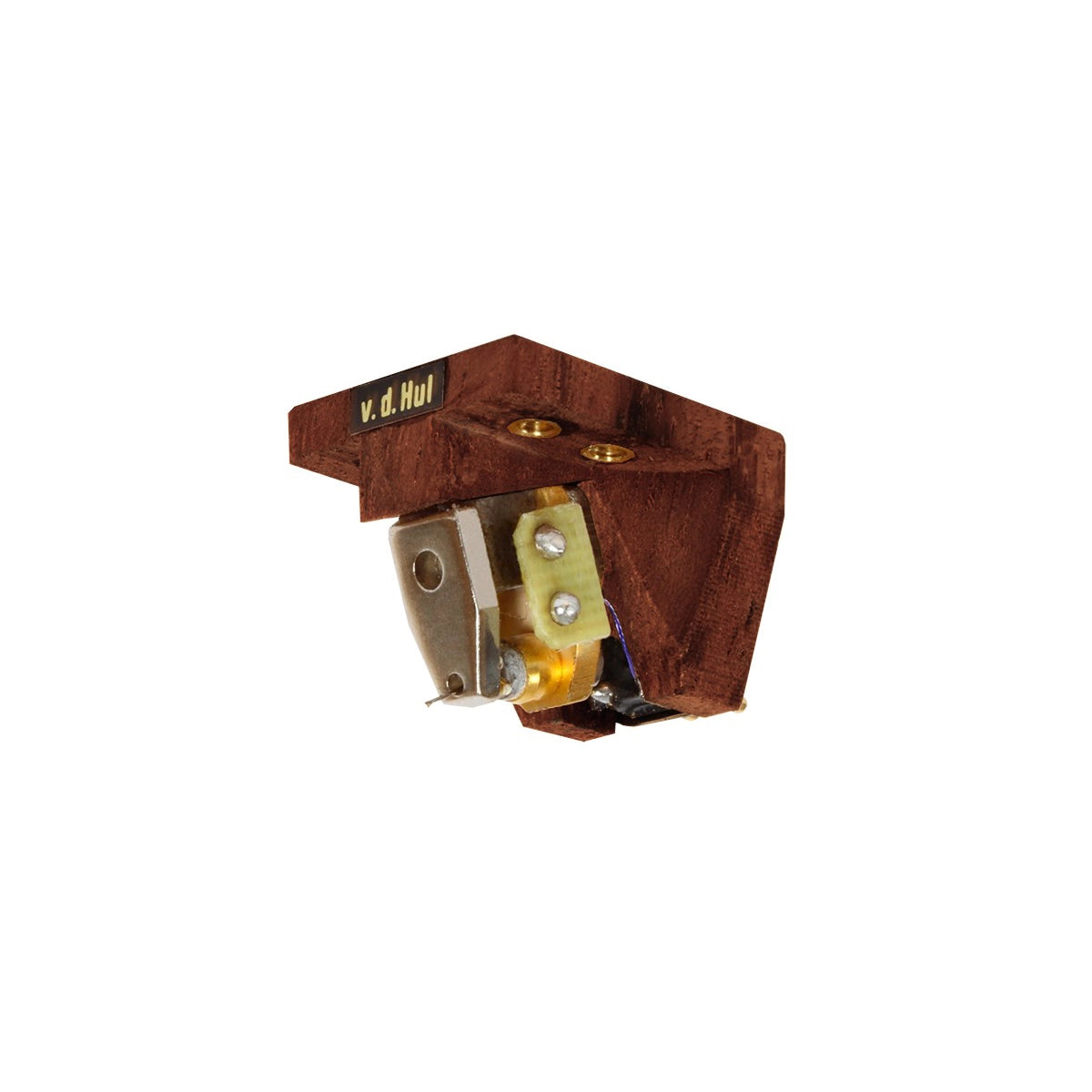

Van Den Hul Crimson Elite Phono Cartridge
Koa wooden body, CNC machined, with original lacquer of a Stradivarius applied to further control resonances in the cartridge body. Reduced thickness and length of the tension wire of the gold-wire coils. Upgraded suspension matched with refined tension wire. The Crimson series offers top performance with custom hand-built moving coil phono cartridges, available in polycarbonate or various wood bodies. Featuring a VDH 1S diamond, solid boron cantilever, matched crystal gold-wire coils, and a standard output level of 0.85mV at 5.6 cm/s. The Samarium-Cobalt magnet extends channel separation and enhances tracking ability, while the enhanced front pole and extra magnet improve resolution capabilities and the magnetic field. Each Crimson cartridge is meticulously hand-built by A.J. and William van den Hul and includes a complimentary 250-300 hour service check-up.
Specifications
Van Den Hul Crimson Elite Phono Cartridge
| Specification | Value |
|---|---|
| Stylus shape |
VDH 1S |
| Stylus radii |
2 x 85 Micron |
| Frequency range |
5 – 55.000 Hz |
| Tracking force |
1,4 – 1,6 Gr |
| Static compliance |
35 Micron/mN |
| Tracking ability |
70 – 80 Micron |
| Output voltage |
0,65mV |
| Channel unbalance |
< 0.3 dB |
| Channel separation |
> 36 / > 30 dB |
| Stylus tip mass |
0.32 Milligram |
| System weight |
8,75 Gr |
| Load capacitance |
Non critical |
| Load impedance |
25 Ohm – 200 Ohm |
